BUR TP108FBG25 FRK VNL 25 PCS PER B
Product image thumbnail 0
Product image thumbnail 1
$5.47/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TP108FBG25
North Coast Part # 1100140

Features

  • The Type TP-F Is A Fork Tongue Variation Of The TP Design And Makes Installation Easier, 600 V Maximum, 105 DEG C Max, Fork Tongue Design: Faster Installation-Screw Needs Only To Be Loosened For Termination, Insulation Diameter (maximum): 0.26 IN, Bulk Catalog Number: BA10EF8, Installation Tool: MR15, M8ND Tool With N10ET-23 Die, Temperature Rating: 105 DEG C Maximum, Package: 25/Bag, Tape Mounted Catalog Number: BA10EF8M, Wire Strip Length: 19/64 IN, Color Code: Yellow, Finish: Electro-Tin Plated, Wire Insulation Grip: No

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 12 AWG;10 AWG
  • Conductor - Copper Str Size Range: 12 AWG-10 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 17/50 in
  • Dimension - B Length inch: 0.34 in
  • Dimension - Hole Size fraction: 8/47
  • Dimension - Hole Size inch: 0.17 in
  • Dimension - Length Overall inch: 0.98 in
  • Dimension - Pad Width inch: 0.31 in
  • Dimension - Stud Size inch: #6;#8
  • Dimension - Z inch: 0.26 in
  • Each - Height: .26 in
  • Each - Length: 1.02 in
  • Each - Width: .33 in
  • Feature - Barrel Style: Shrouded
  • Industry Standard(s): UL467
  • Insulation Type: Vinyl
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYDENT™
  • Application: The Type TP-F is a fork tongue variation of the TP design and makes installation easier
  • Insulation: Y
  • Special Features: Features: The Type TP-F Is A Fork Tongue Variation Of The TP Design And Makes Installation Easier, 600 V Maximum, 105 DEG C Max, Fork Tongue Design: Faster Installation-Screw Needs Only To Be Loosened For Termination, Insulation Diameter (maximum): 0.26 IN, Bulk Catalog Number: BA10EF8, Installation Tool: MR15, M8ND Tool With N10ET-23 Die, Temperature Rating: 105 DEG C Maximum, Package: 25/Bag, Tape Mounted Catalog Number: BA10EF8M, Wire Strip Length: 19/64 IN, Color Code: Yellow, Finish: Electro-Tin Plated, Wire Insulation Grip: No
  • Standard: UL467
  • Sub Brand: HYDENT
  • Type: TP-F

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181048639

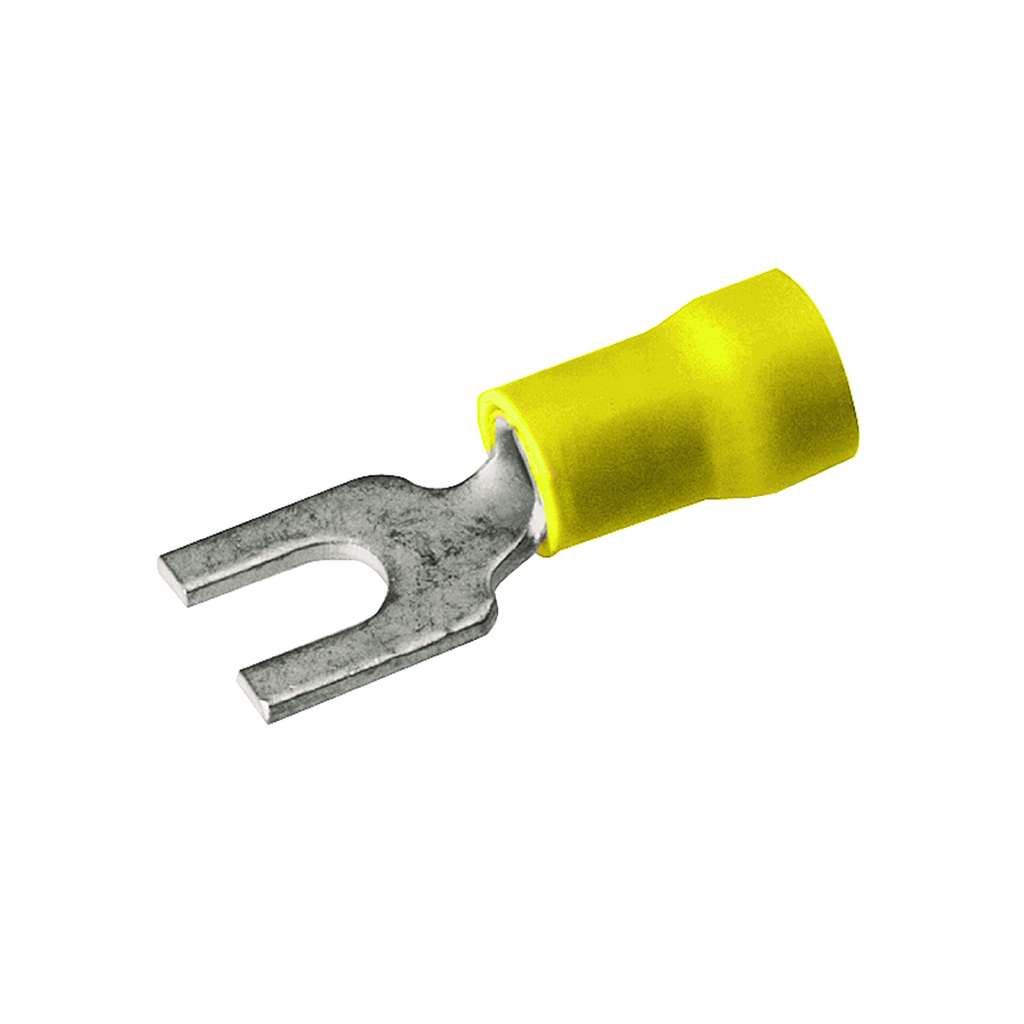

Item Long Description Cu Fork TongueTerminal, Smooth Entry, 10-12 AWG, 600 V, #8 Spade, 0.98" L, 0.31" W, Vinyl Insul, Tin Plated, Yellow(Insul Color), 25 Pcs./Bag.
GTiN 00781810486399
Type TP-F
Stud Size 0.138-0.164 in
Applications The Type TP-F is a fork tongue variation of the TP design and makes installation easier
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand HYDENT
Length 0.98 in
Insulation Type Vinyl
Material Copper
Conductor Size 10 AWG
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
