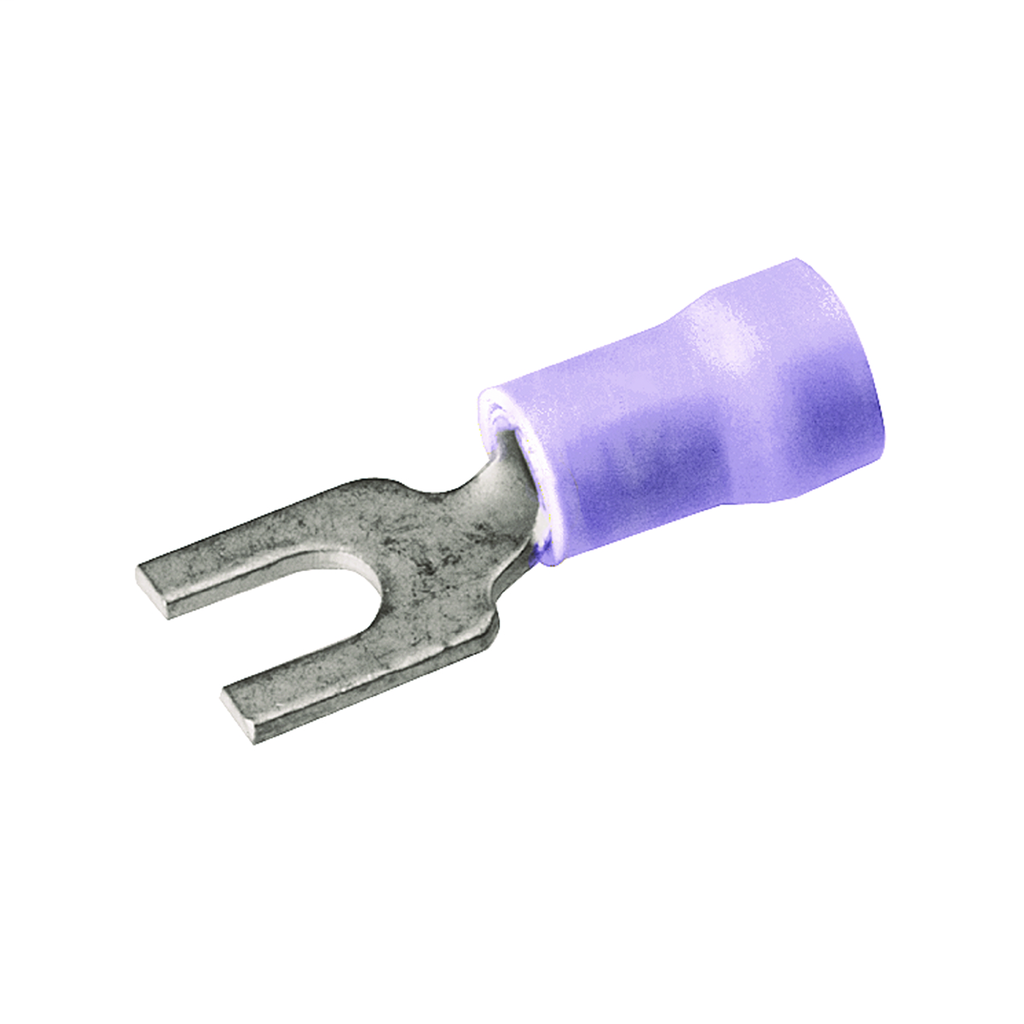

Burndy TP146FBG25 25/Bag Vinyl Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
$4.68/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TP146FBG25
North Coast Part # 1337484

Specifications

  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 13/50 in
  • Dimension - B Length inch: 0.26 in
  • Dimension - Hole Size fraction: 3/20
  • Dimension - Hole Size inch: 0.15 in
  • Dimension - Length Overall inch: 0.80 in
  • Dimension - Pad Width inch: 0.28 in
  • Dimension - Stud Size inch: #4;#5;#6
  • Dimension - Z inch: 0.23 in
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Feature - Barrel Style: Shrouded
  • Industry Standard(s): UL467
  • Insulation Type: Vinyl
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYDENT™

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No

Overview

UPC 78181048647
Family Brand Name Hubbell
Item Long Description Polyvinylchloride Insulated Compression Fork Tongue Terminal; Accommodates: #16 - #14 AWG; Stud: #4 - #6; 25 Piece Bag.
Length 0.80 in
Insulation Type Vinyl
Material Copper
Conductor Size 14 AWG
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
