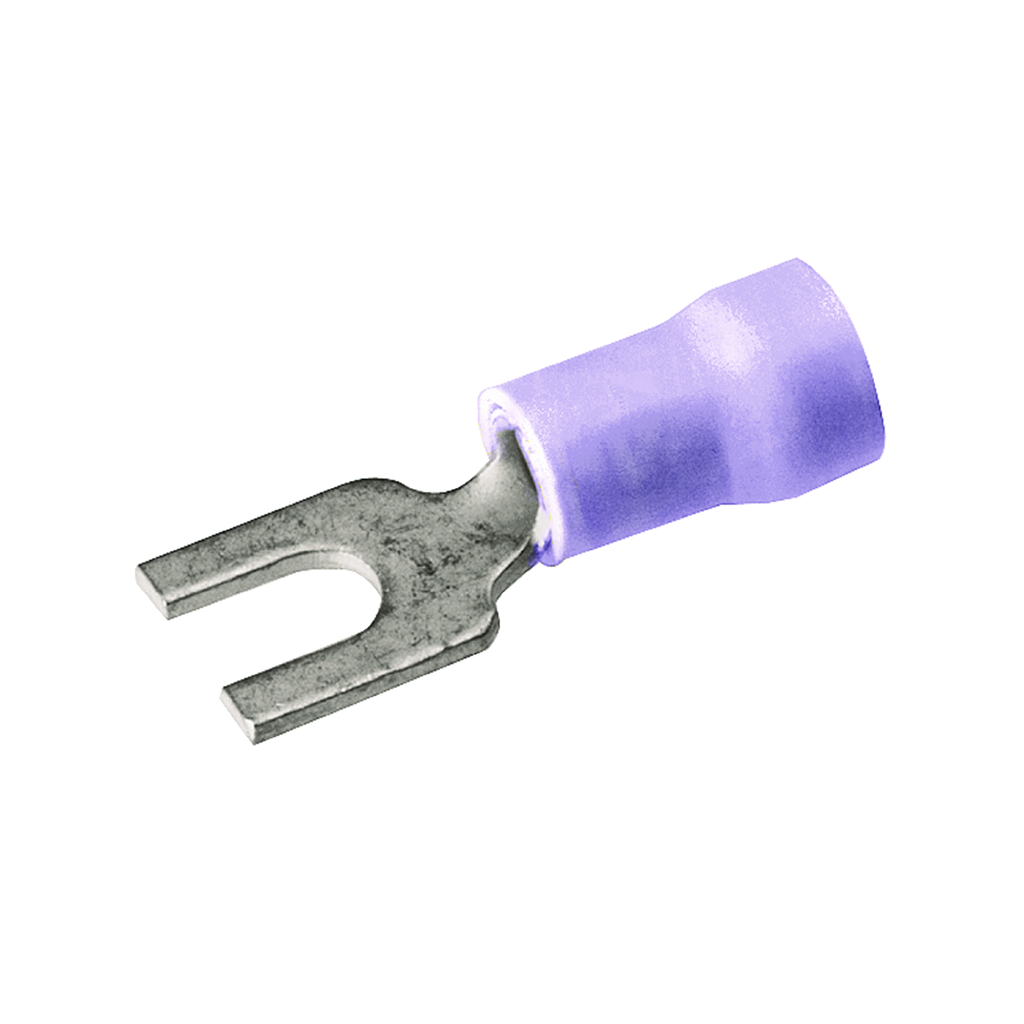

BUR TP148FBG25 FRK VNL 25 PCS PER B
$5.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TP148FBG25
North Coast Part # 1337486

Features

Features: The Type TP-F Is A Fork Tongue Variation Of The TP Design And Makes Installation Easier, 600 V Maximum, 105 DEG C Max, Fork Tongue Design: Faster Installation-Screw Needs Only To Be Loosened For Termination, Package: 25/Bag, Insulation Diameter (maximum): 0.18 IN, Tape Mounted Catalog Number: BA14EF8M, Temperature Rating: 105 DEG C Maximum, Installation Tool: Plier Type: Y10-22 Tool, Ratchet: MR8-89-1 Tool, Bulk Catalog Number: BA14EF8, Wire Strip Length: 13/64 IN, Color Code: Blue, Wire Insulation Grip: No, Finish: Electro-Tin Plated

Specifications

General

  • Application: The Type TP-F is a fork tongue variation of the TP design and makes installation easier
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Insulation Type: Vinyl
  • Item Type: 3C
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: HYDENT
  • Trade Name: HYDENT™
  • Type: TP-F
  • UPC: 781810486498
  • UPC 12 Digit: 7818104864988

Dimensions

  • Dimension - B Length fraction: 13/50 in
  • Dimension - B Length inch: 0.26 in
  • Dimension - Hole Size fraction: 8/47
  • Dimension - Hole Size inch: 0.17 in
  • Dimension - Length Overall inch: 0.86 in
  • Dimension - Pad Width inch: 0.31 in
  • Dimension - Stud Size inch: #6;#8
  • Dimension - Z inch: 0.26 in

Conductor Related

  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181048649
GTiN 00781810486498
Type TP-F
Stud Size 0.138-0.164 in
Applications The Type TP-F is a fork tongue variation of the TP design and makes installation easier
Cable Size 16 - 14 AWG
Family Brand Name Burndy
Sub Brand HYDENT
Length 0.86 in
Insulation Type Vinyl
Material Copper
Conductor Size 14 AWG
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
