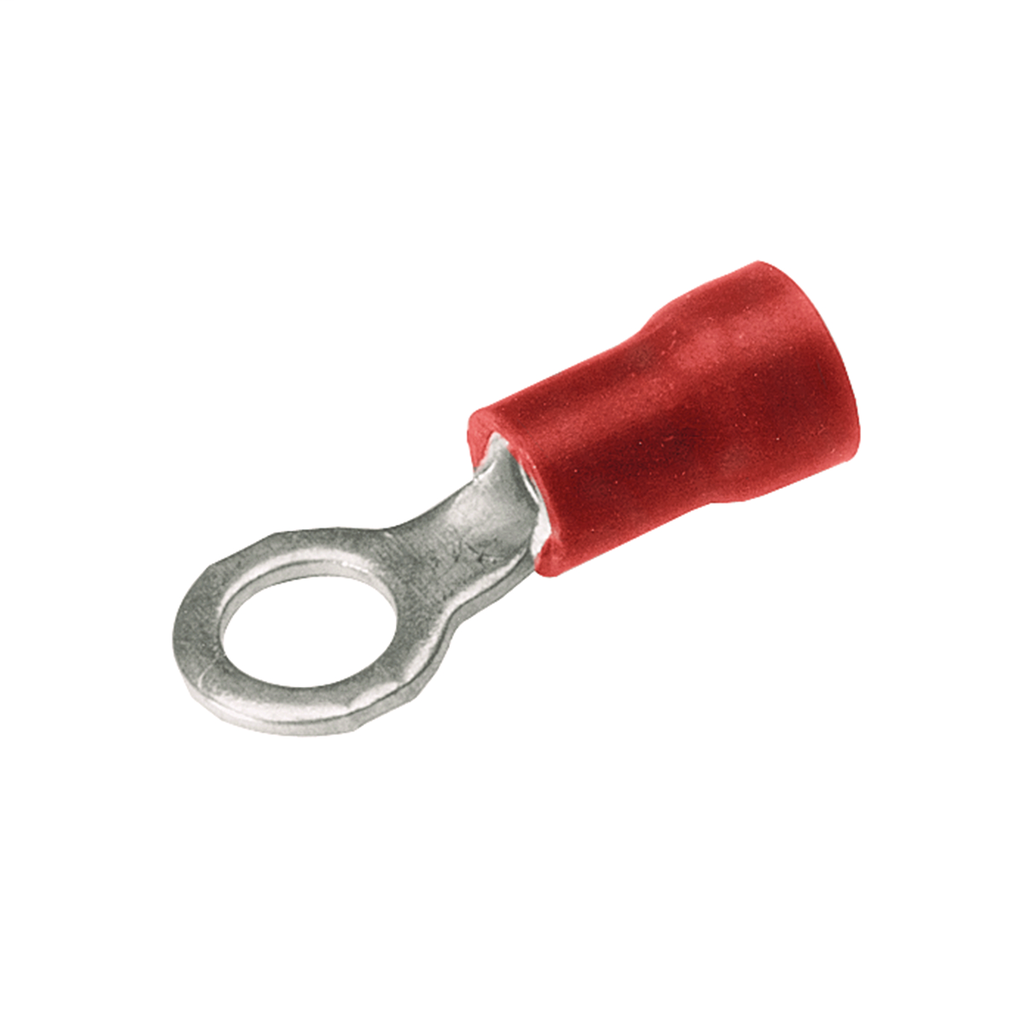

BUR TP16516 22-18 V/I 1/2 Ring
Product image thumbnail 0
Product image thumbnail 1
$128.70/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # TP16516
North Coast Part # 1679809

Specifications

General

  • Application: For Commercial And Light Duty Industrial Control And Power Circuit Applications
  • Connector Type: Terminal
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Insulation Type: Vinyl
  • Material: Copper
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: HYDENT
  • Trade Name: HYDENT™
  • Type: Ring Tongue
  • UPC: 781810524374
  • UPC 12 Digit: 7818105243744

Dimensions

  • Dimension - L Length Overall mm: 28 mm
  • Dimension - Length Overall inch: 1.11 in
  • Dimension - Pad Width inch: 0.47 in
  • Dimension - Strip Length inch: 13/64
  • Dimension - Stud Size fraction: 5/16
  • Dimension - Stud Size inch: 5/16
  • Dimension - Z inch: 0.41 in

Electrical Ratings

  • Voltage - Maximum: 600 V

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Carton Quantity: 100 EA
  • Minimum Pack Quantity: 50

Conductor Type

  • CU C Str-Size
  • CU C Solid-Size

Overview

UPC 78181052437
GTiN 00781810524374
Type Ring Tongue
Material Copper
Stud Size 0.3125 in
Applications For Commercial And Light Duty Industrial Control And Power Circuit Applications
Cable Size 22 - 16 AWG
Family Brand Name Burndy
Sub Brand HYDENT
Length 1.11 in
Insulation Type Vinyl
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
Max Voltage 600 V
