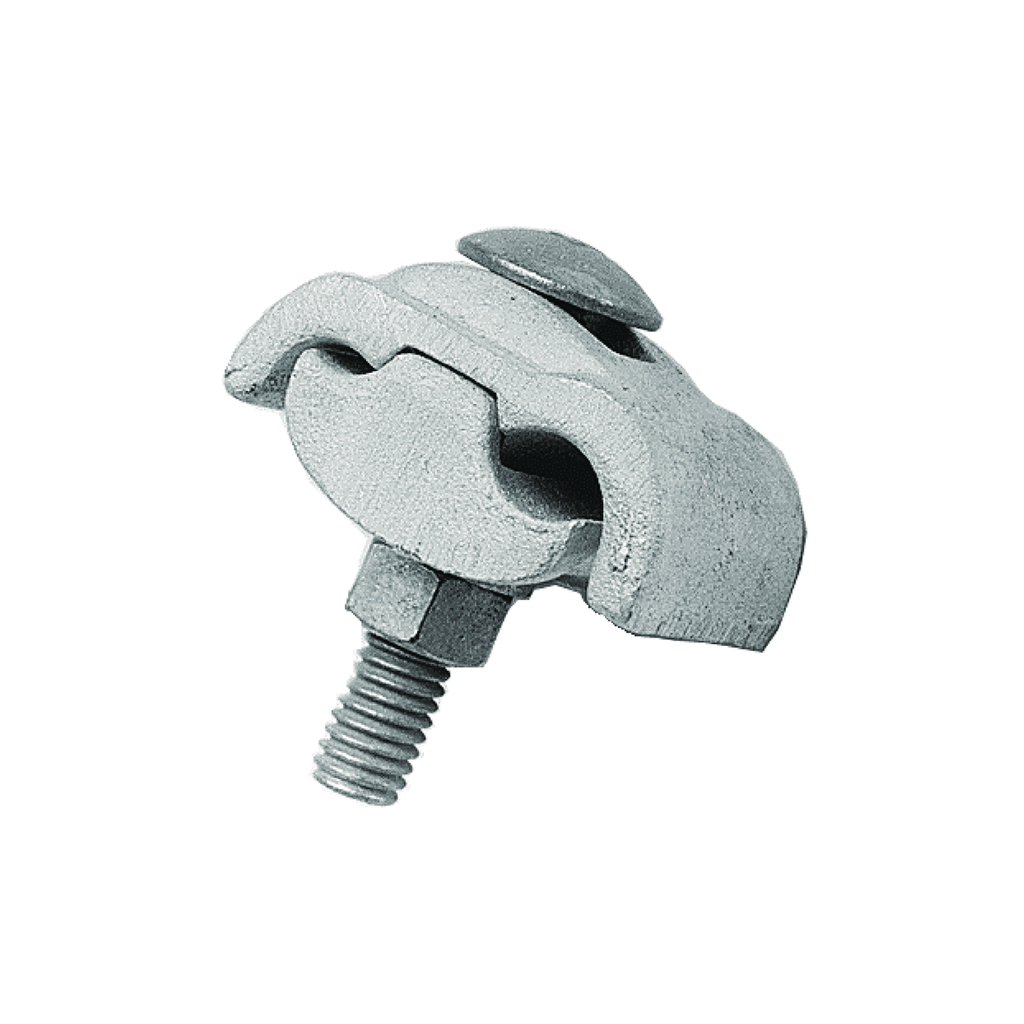

Burndy UC33R 4/0 AWG to 400 MCM Aluminum Alloy Parallel Clamp

Specifications

General

• Material: Aluminum Alloy, Cast
• Plated: N
• Plating Type: Unplated
• Trade Name: TAPIT™
• UPC: 781810097250
• UPC 12 Digit: 7818100972500

Dimensions

• Dimension - B Length fraction: 1-3/4 in
• Dimension - B Length inch: 1.75 in
• Dimension - Height fraction: 2-3/4 in
• Dimension - Height inch: 2.77 in
• Dimension - Width fraction: 2-1/4 in
• Dimension - Width inch: 2.21 in
• Dimension - Width mm: 56 mm

Conductor Related

• Conductor - AL Str Size A: 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil
• Conductor - AL Str Size A Range: 4/0 AWG-400 kcmil
• Conductor - AL Str Size B: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
• Conductor - AL Str Size B Range: 6 AWG-2/0 AWG
• Conductor - Copper Solid Size B: 6 AWG
• Conductor - Copper Str Size A: 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil
• Conductor - Copper Str Size A Range: 4/0 AWG-400 kcmil
• Conductor - Copper Str Size B: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size B Range: 6 AWG-2/0 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No
