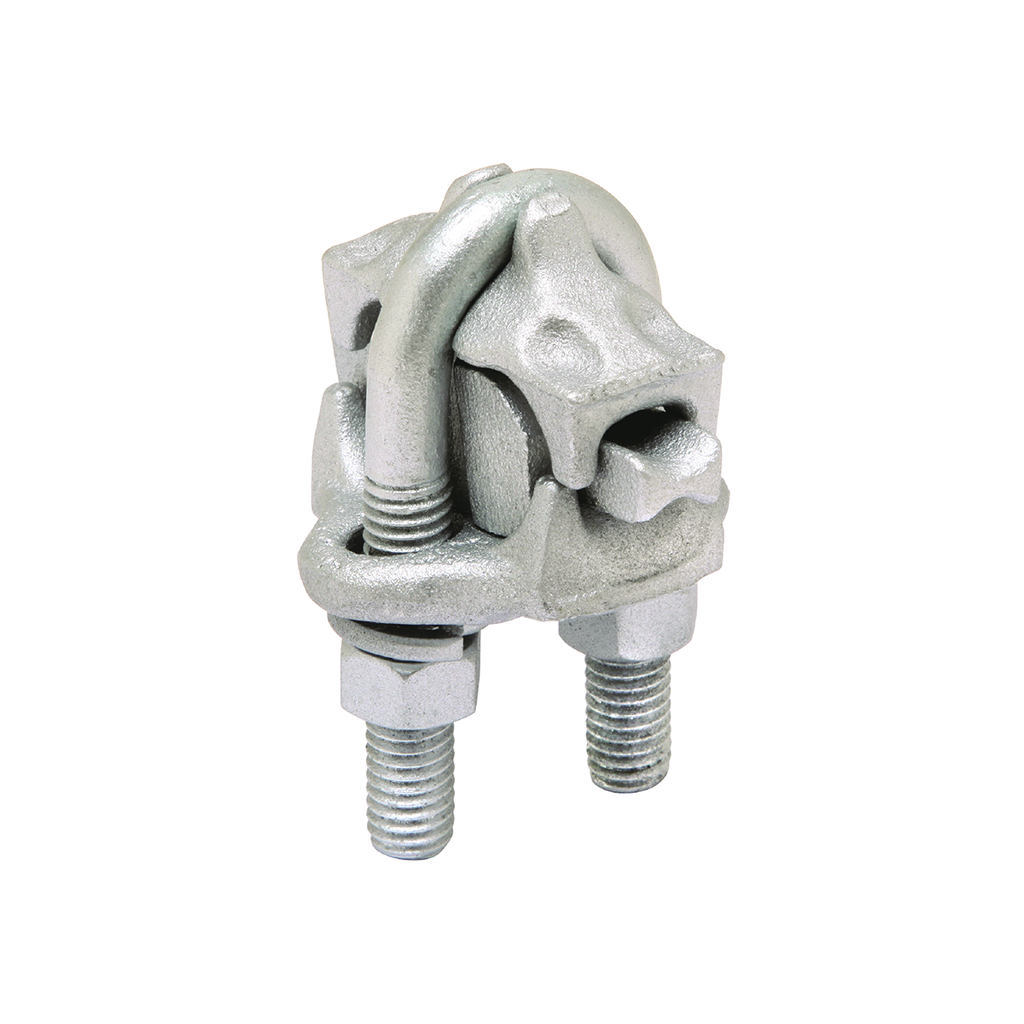

Burndy UW25R 6 to 2/0 AWG Aluminum Deadend Clamp
Product image thumbnail 0
Product image thumbnail 1
$42.26/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # UW25R
North Coast Part # 18735

Specifications

General

  • Connector Type: Deadend
  • Material: Aluminum Alloy
  • Material - Hardware: Galvanized Steel
  • Oxide Inhibitor Type: Penetrox A
  • Plated: N
  • Plating Type: Unplated
  • Prefilled Oxide Inhibitor: Y
  • Trade Name: CLIPITâ„¢
  • UPC: 781810108000

Dimensions

  • Dimension - B Length fraction: 1-46/63 in
  • Dimension - B Length inch: 1.73 in
  • Dimension - Height fraction: 2-7/8 in
  • Dimension - Height inch: 2.83 in
  • Dimension - L Length Overall mm: 48 mm
  • Dimension - Length Overall inch: 1.875 in
  • Dimension - Width fraction: 2 in
  • Dimension - Width inch: 1.98 in
  • Dimension - Width mm: 50 mm

Conductor Related

  • Conductor - AAAC 5005 Run: 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
  • Conductor - AAAC 5005 Run Range: 30.58 (7)-123.3 (7)
  • Conductor - AAAC 5005 Size A: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
  • Conductor - AAAC 5005 Size A Range: 30.58 (7) kcmil-123.3 (7) kcmil
  • Conductor - AAAC 5005 Size B: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
  • Conductor - AAAC 5005 Size B Range: 30.58 (7) kcmil-123.3 (7) kcmil
  • Conductor - AAAC 5005 Tap: 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
  • Conductor - AAAC 5005 Tap Range: 30.58 (7)-123.3 (7)
  • Conductor - AAAC 6201 Run: 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
  • Conductor - AAAC 6201 Run Range: 30.58 (7)-123.3 (7)
  • Conductor - AAAC 6201 Size A: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
  • Conductor - AAAC 6201 Size A Range: 30.58 (7) kcmil-123.3 (7) kcmil
  • Conductor - AAAC 6201 Size B: 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
  • Conductor - AAAC 6201 Size B Range: 30.58 (7) kcmil-123.3 (7) kcmil
  • Conductor - AAAC 6201 Tap: 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
  • Conductor - AAAC 6201 Tap Range: 30.58 (7)-123.3 (7)
  • Conductor - ACSR Str Run: 6 (6/1) Turkey;5 (6/1) Thrush;4 (6/1) Swan;4 (7/1) Swanate;3 (6/1) Swallow;2 (6/1) Sparrow;2 (7/1) Sparate;1 (6/1) Robin;1/0 (6/1) Raven
  • Conductor - ACSR Str Run Range: 6 (6/1) Turkey-1/0 (6/1) Raven
  • Conductor - ACSR Str Tap: 6 (6/1) Turkey;5 (6/1) Thrush;4 (6/1) Swan;4 (7/1) Swanate;3 (6/1) Swallow;2 (6/1) Sparrow;2 (7/1) Sparate;1 (6/1) Robin;1/0 (6/1) Raven
  • Conductor - ACSR Str Tap Range: 6 (6/1) Turkey-1/0 (6/1) Raven
  • Conductor - AL Str Run: 6;4;3;2;1;1/0;2/0
  • Conductor - AL Str Size A: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
  • Conductor - AL Str Size A Range: 6 AWG-1/0 AWG
  • Conductor - AL Str Size B: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
  • Conductor - AL Str Size B Range: 6 AWG-1/0 AWG
  • Conductor - AL Str Tap: 6;4;3;2;1;1/0;2/0

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): RUS
  • Standards - Industry Standards Met: RUS
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181010800
GTiN 00781810108000
Family Brand Name Hubbell
Length 1.875 in
Width 1.98 in
Material Aluminum Alloy
Height 2.83 in
Connection Type Deadend
Plating Type Unplated
Plated? No
CSA No
