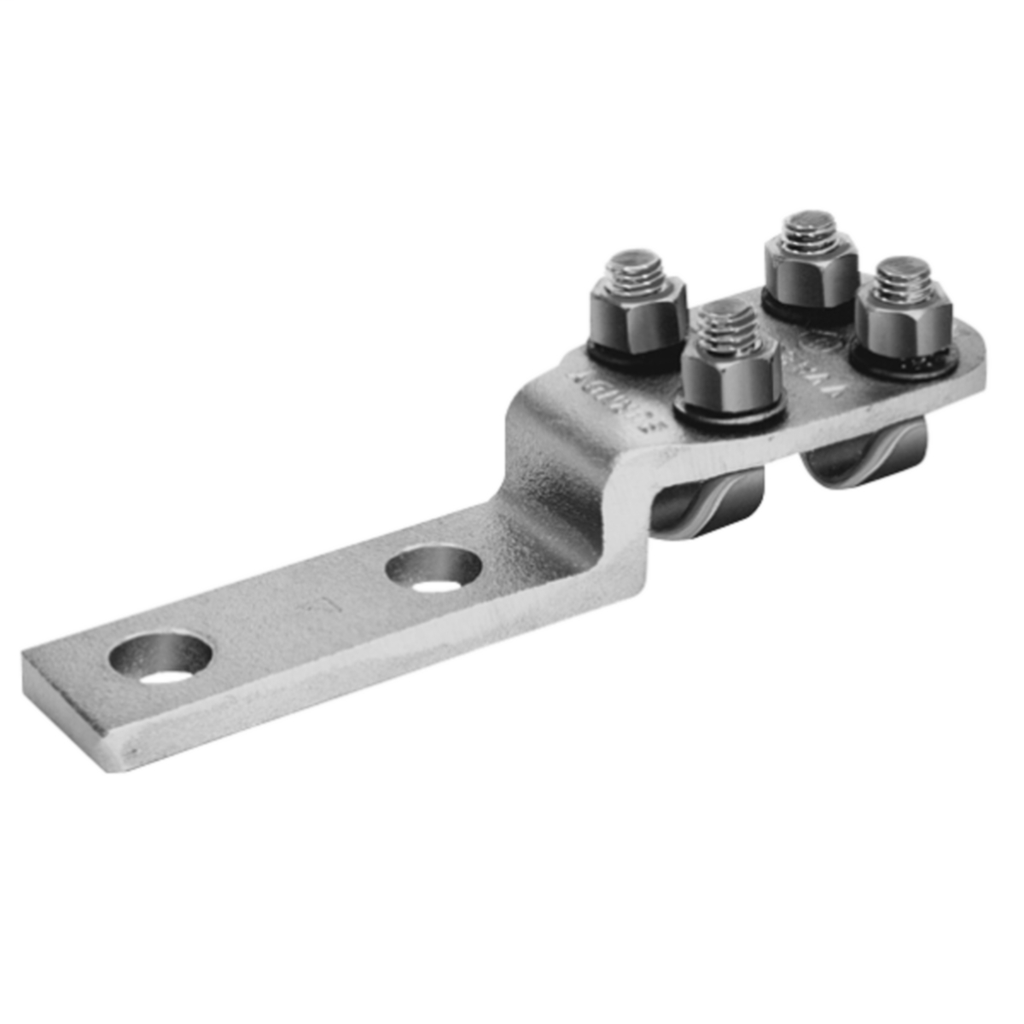

Burndy VVA28 1.06 Inch 1/0 to 4/0 AWG Copper 1-Hole Cable Terminal Lug

Specifications

General

• Application: Substation
• Clamping Element Design: V Bolt
• Connector Type: Terminal
• Installation Torque Recommended in-lb: 250 LBS/in
• Item Type: 4D
• Material: Copper Alloy
• Material - Hardware: DURIUM™ Silicon Bronze
• One Wrench Installation: Y
• Physical Attribute - Number of Clamping Elements: 2
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Pad Alignment: Offset
• Physical Attribute - Pad Configuration: 1.06 x 1.50 - 1 hole
• Physical Attribute - Pad Orientation: Straight
• Plated: N
• Plating Type: Unplated
• Trade Name: VARILUG™
• Type: Bolted Lugs & Terminals
• UPC: 781810005675
• UPC 12 Digit: 7818100056755

Dimensions

• Dimension - B Length inch: 1.09 in
• Dimension - D inch: 1.50 in
• Dimension - Height fraction: 2-1/4 in
• Dimension - Height inch: 2.25 in
• Dimension - Hole Size fraction: 7/16
• Dimension - Hole Size inch: 0.44 in
• Dimension - Hole Size mm: 11 mm
• Dimension - L Length Overall mm: 105 mm
• Dimension - Length Overall inch: 4.13 in
• Dimension - N inch: 0.53 in
• Dimension - Pad Size inch: 1.06 x 1.50
• Dimension - Pad Width inch: 1.06 in
• Dimension - Stud Size inch: 3/8
• Dimension - Width inch: 1.69 in
• Dimension - Width mm: 43 mm

Electrical Ratings

• Rating - KVA: 230 kV

Conductor Related

• Conductor - Connection Combination: Cable to Flat
• Conductor - Copper Solid Size: 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
• Conductor - Copper Solid Size Range: 1/0 AWG-4/0 AWG
• Conductor - Copper Str Size: 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
• Conductor - Copper Str Size Range: 1/0 -4/0 AWG
• Conductor Type: CU C Str-Size
• Number Of Conductors: 1

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: EX
• UL Listed: Yes
