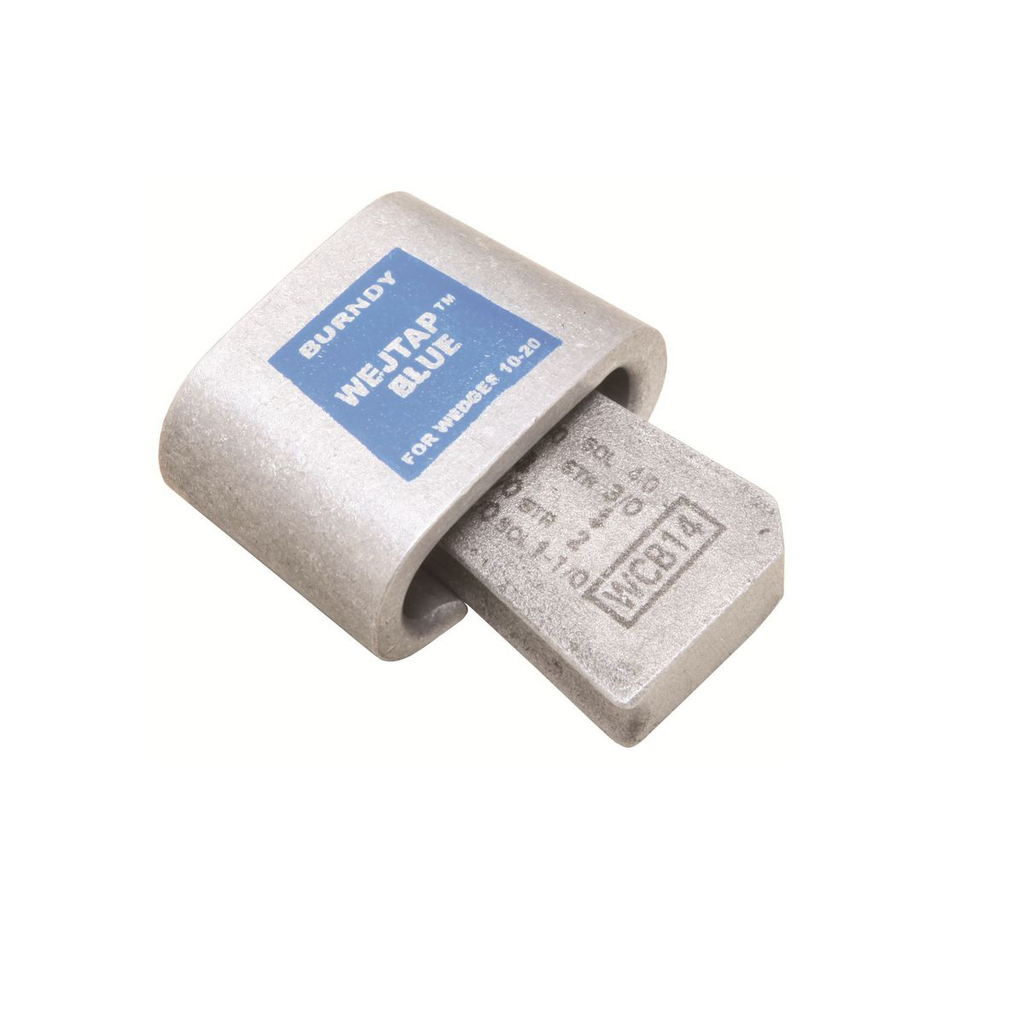

BUR WCB10 Wejtap,.482 D Max.(Run)-.
Product image thumbnail 0
Product image thumbnail 1
$9.91/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # WCB10
North Coast Part # 429690

Features

  • WEJTAP Connectors Use An Aluminum Alloy Wedge That Is Power-Driven Between The Run And The Tap Cables Locking Them Into A C Shaped Tempered Aluminum Alloy Spring-Body, The Spring-Body Maintains Consistent Pressure Throughout The Life Of The Connection To Ensure Reliability During Severe Electrical And Climatic Conditions, The Wedges Wiping Action Combined With Factory Installed PENTX 1530 Provides Superior Contact Integrity, The Wedge Is Automatically Locked Onto The Spring-Body By A Skiving Action Produced By A Lance At The Forward End Of The WEJTAP Installation Tool, Installed With Blue Booster, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Cable Diameter Range: 0.795 - 0.621 IN, Cable Diameter Range (run): 0.482 - 0.316 IN, Cable Diameter Range (tap): 0.437 - 0.257 IN, Conductor Size (run - Mm): 8 - 12 SQ-MM, Conductor Size (tap - Mm): 7 - 11 SQ-MM, Installation Tool: WTRB, Booster: WPBB Box 25, Color Code: Blue

Specifications

  • Buy American Compliant: No
  • Country of Origin: MX
  • Each - Height: 7.28 in
  • Each - Length: 1.1 in
  • Each - Width: 7.09 in
  • Standards - RoHS Compliance Status: CM
  • Application: For use in tap applications using large run and tap conductor sizes
  • Special Features: Features: WEJTAP Connectors Use An Aluminum Alloy Wedge That Is Power-Driven Between The Run And The Tap Cables Locking Them Into A C Shaped Tempered Aluminum Alloy Spring-Body, The Spring-Body Maintains Consistent Pressure Throughout The Life Of The Connection To Ensure Reliability During Severe Electrical And Climatic Conditions, The Wedges Wiping Action Combined With Factory Installed PENTX 1530 Provides Superior Contact Integrity, The Wedge Is Automatically Locked Onto The Spring-Body By A Skiving Action Produced By A Lance At The Forward End Of The WEJTAP Installation Tool, Installed With Blue Booster, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Cable Diameter Range: 0.795 - 0.621 IN, Cable Diameter Range (run): 0.482 - 0.316 IN, Cable Diameter Range (tap): 0.437 - 0.257 IN, Conductor Size (run - Mm): 8 - 12 SQ-MM, Conductor Size (tap - Mm): 7 - 11 SQ-MM, Installation Tool: WTRB, Booster: WPBB Box 25, Color Code: Blue
  • Sub Brand: WEJTAP
  • Type: Wejtap Connector

Certifications

  • CSA Approved: No
  • ETL: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810872451
Type Wejtap Connector
Material Aluminum
Conductor Size 1/0 - 6/1, 1/0, 2/0 - 6/1, 2 - 6/1, 2/0 AWG Run
Applications For use in tap applications using large run and tap conductor sizes
Family Brand Name Burndy
Tap Size 2, 1/0 - 6/1, 1/0, 10 - 6/1 AWG
Sub Brand WEJTAP
Product UPC 78181087245
CSA No
Length 1.1 Inch
Width 7.09 in
Height 7.28 Inch
Country of Origin Mexico
