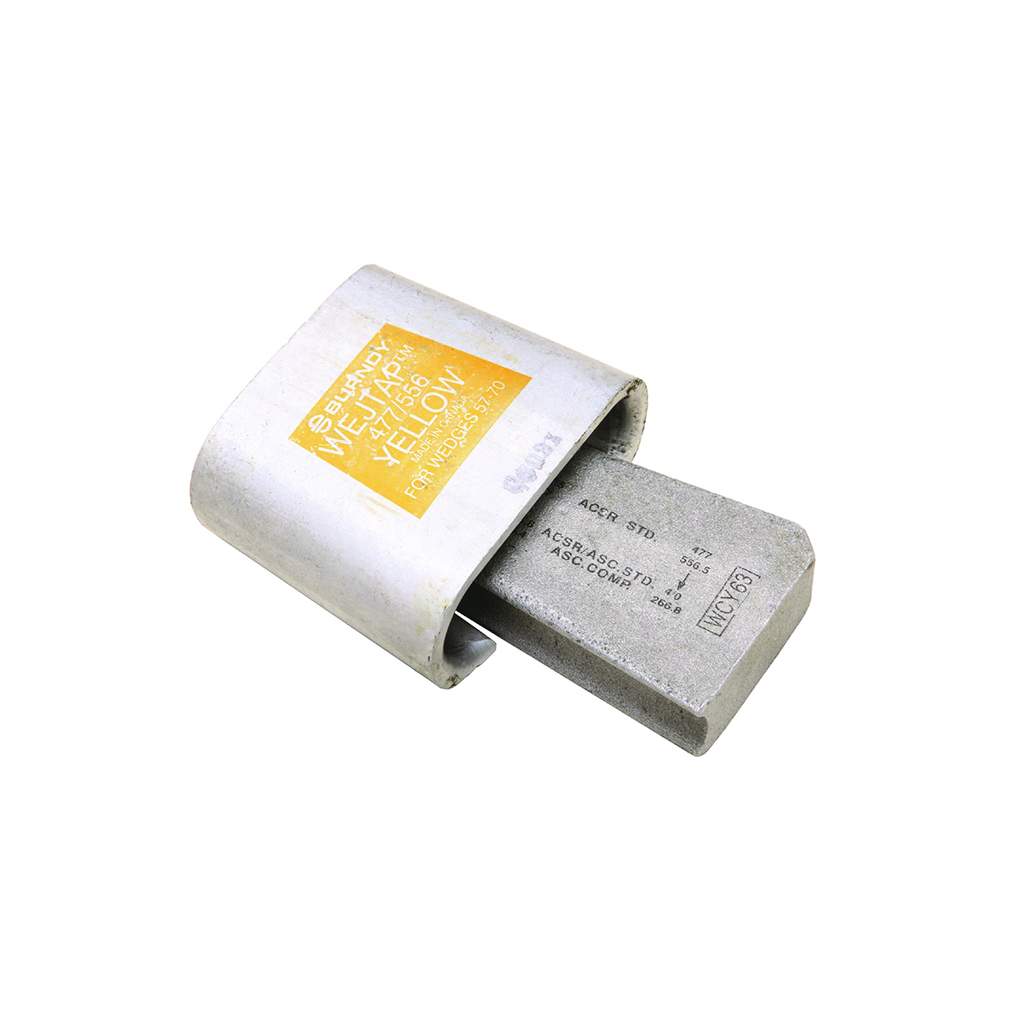

BUR WCY60 Wejtap,.950 D Max.(Run an
Product image thumbnail 0
Product image thumbnail 1
$47.15/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # WCY60
North Coast Part # 492973

Features

Features: With Yellow Power Booster, ANSI Class AA, Color Code: Yellow, Installation Tool: WTY Tool, Booster: WPBY Box 25, Conductor Size (tap - Mm): 18 - 24 SQ-MM, Booster Color: Yellow, Cable Diameter Range (run): 0.722 - 0.95 IN, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Conductor Size (run - Mm): 18 - 24 SQ-MM, Cable Diameter Range (tap): 0.722 - 0.95 IN

Specifications

  • Application: For use in tap applications using large run and tap conductor sizes
  • Connector Type: Tap
  • Item Type: 3B
  • Material: Copper
  • Sub Brand: WEJTAP
  • Trade Name: WEJTAP™
  • Type: Wejtap Connector
  • UPC: 781810874400
  • UPC 12 Digit: 7818108744000
  • Dimension - F Width Center to Center inch: 3 in
  • Dimension - G inch: 1.53 in
  • Conductor - ACSR Str Run: 336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil;500.0 (30/7) Heron kcmil;556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil
  • Conductor - ACSR Str Run Range: 336.4 (26/7) Linnet kcmil-556.5 (30/7) Eagle kcmil
  • Conductor - ACSR Str Tap: 336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil;500.0 (30/7) Heron kcmil;556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil
  • Conductor - ACSR Str Tap Range: 336.4 (26/7) Linnet kcmil-556.5 (30/7) Eagle kcmil
  • Conductor - AL Str Run: 450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil
  • Conductor - AL Str Run Range: 450 kcmil-700 kcmil
  • Conductor - AL Str Tap: 450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil
  • Conductor - AL Str Tap Range: 450 kcmil-700 kcmil

Conductor Type

  • ACSR C Str-Run
  • AL C Str-Run
  • ACSR C Str-Tap
  • AL C Str-Tap
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Overview

UPC 78181087440
GTiN 00781810874400
Type Wejtap Connector
Conductor Size Run: 556.5 KCMIL - 18(1) AWG
Applications For use in tap applications using large run and tap conductor sizes
Family Brand Name Burndy
Tap Size 18(1) AWG - 556.5 KCMIL
Sub Brand WEJTAP
Material Copper
Connection Type Tap
CSA No
