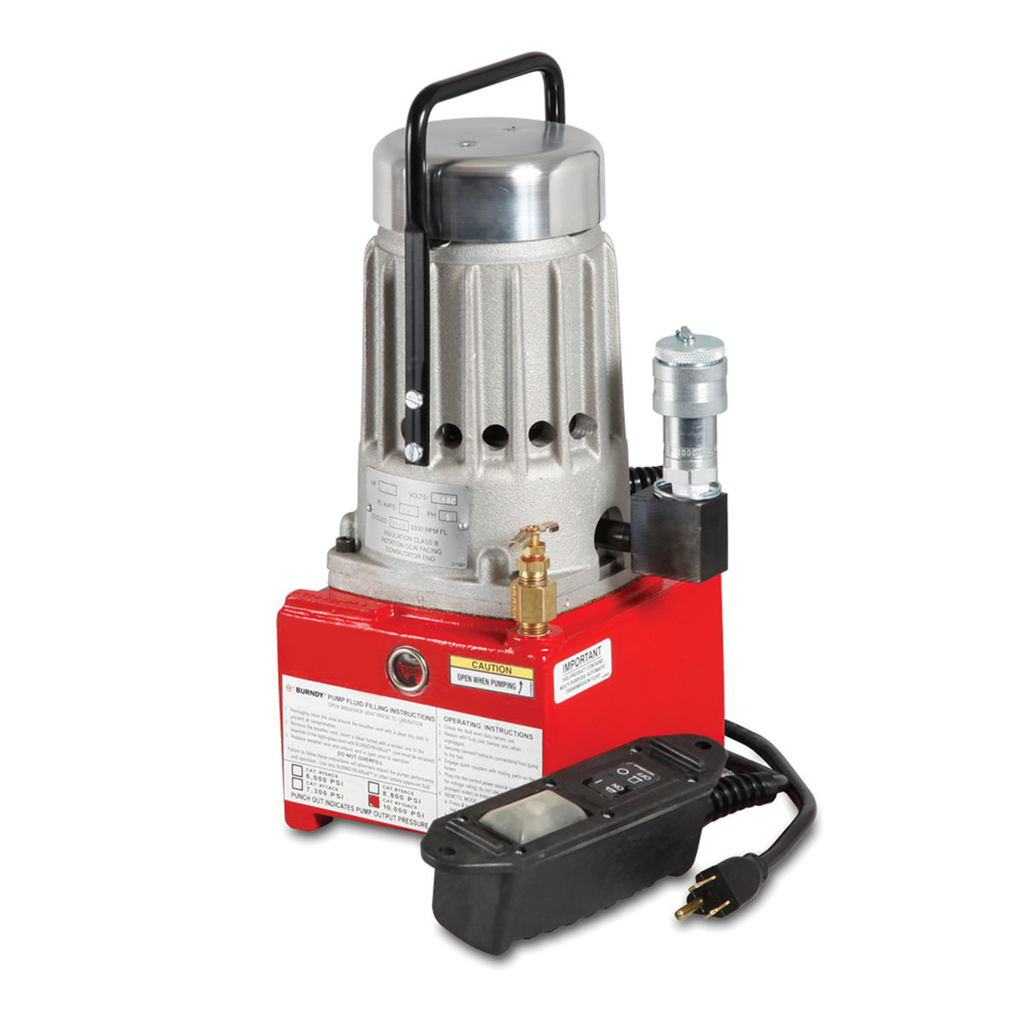

BUR Y10AC9 HYDRAULIC PUMP 10,000PSI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6,503.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # Y10AC9
North Coast Part # 602009

Features

  • Easy to carry and transport
  • Factory set relief valve
  • 100,000+ life cycles
  • Sealed electric pendant switch with 10-foot cord
  • The Y10AC9 Electric Hydraulic Pump Is For Use With All HYPRESS Heads And Cutters Requiring 10,000 PSI Operating Pressure, Lightweight, Small Size: Easy To Lift, Carry And Transport Tool Around Job Site With Lightweight Body And Handle, Factory Set Relief Valve: High Quality Crimps Are Achieved With Built-In, Factory Set Pressure Relief Valve And Audible Recycling Of Pump To Signal Completion Of Crimp Cycle, 100,000 (+) Life Cycles: Long Durable Life Expectancy With Lightweight Cast Aluminum Reservoir Body, Convenient 115V AC Electric Powered Motor, Saves Time With Quick Disconnect Hydraulic Fitting, Sealed Electric Pendant Switch: Easy Operation With Durable Remote Pendant Switch With 10-Foot Cord, 5-Year Limited Warranty, The Y10AC9 Electric Hydraulic Pump Is For Use With All HYPRESS Heads And Cutters Requiring 10000 PSI Operating Pressure,The Y10AC9 Is Equipped With A Built-In, Factory Set Pressure Relief Valve, An Audible Pop And Recycling Of The Pump As Well As Relaxing Of The Hose Signal Completion Of The Crimping/Cutting Cycle, Pump Is Supplied With A Durable Hand-Held Electric Pendant Switch, Current Draw (maximum): 11 AMP, Base: 6.5 X 8.25 IN, Reservoir Volume: 1.6 QT, Weight: 28 LB, Accessories: YAC-CASE Steel Carrying Case With Handle And Locking Latch, Replacement Fluid: Alfluid

Specifications

  • Application - For Use On: Use with 10,000 psi Remote Hydraulic Crimpers and Cutters
  • Buy American Compliant: Yes
  • Country of Origin: US
  • Current Draw Max: 11 Amperes
  • Each - Height: 15.12 in
  • Each - Length: 7.25 in
  • Each - Width: 8.5 in
  • Height: 14.38 in
  • Length: 8.25 in
  • Power Source: 5/8 HP 115V-AC Motor; 10000 RPM
  • Product Type: Pump, Hydraulic 10,000 PSI
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: EX
  • Application: Pumping
  • Dimensions: 8.25 in x 6.50 in x 14.38 in
  • Special Features: Features: The Y10AC9 Electric Hydraulic Pump Is For Use With All HYPRESS Heads And Cutters Requiring 10,000 PSI Operating Pressure, Lightweight, Small Size: Easy To Lift, Carry And Transport Tool Around Job Site With Lightweight Body And Handle, Factory Set Relief Valve: High Quality Crimps Are Achieved With Built-In, Factory Set Pressure Relief Valve And Audible Recycling Of Pump To Signal Completion Of Crimp Cycle, 100,000 (+) Life Cycles: Long Durable Life Expectancy With Lightweight Cast Aluminum Reservoir Body, Convenient 115V AC Electric Powered Motor, Saves Time With Quick Disconnect Hydraulic Fitting, Sealed Electric Pendant Switch: Easy Operation With Durable Remote Pendant Switch With 10-Foot Cord, 5-Year Limited Warranty, The Y10AC9 Electric Hydraulic Pump Is For Use With All HYPRESS Heads And Cutters Requiring 10000 PSI Operating Pressure,The Y10AC9 Is Equipped With A Built-In, Factory Set Pressure Relief Valve, An Audible Pop And Recycling Of The Pump As Well As Relaxing Of The Hose Signal Completion Of The Crimping/Cutting Cycle, Pump Is Supplied With A Durable Hand-Held Electric Pendant Switch, Current Draw (maximum): 11 AMP, Base: 6.5 X 8.25 IN, Reservoir Volume: 1.6 QT, Weight: 28 LB, Accessories: YAC-CASE Steel Carrying Case With Handle And Locking Latch, Replacement Fluid: Alfluid
  • Sub Brand: HYPRESS
  • Type: Pumps
  • Warranty: 5 year limited warranty
  • Width: 6.50 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78181046729
Item Long Description Electric Hydraulic Pump for use with all HYPRESS remote crimpers and cutters requiring 10,000 psi operating pressure, 100,000 (+) life cycles.
GTiN 00781810467299
Type Pumps
Applications For Y34BH, Y35BH, Y35BH4, Y39BH, Y45, Y46, Y46C, Y750BHXT, Y750CBHXT, Y644MBH, Y4PC834MBH, Y81KFTMBH, Y60BHU, RHCC129ACSR, RHCC245CUAL
Pressure Rating 10000 PSI
Horsepower 0.625 hp
Family Brand Name Burndy
Blade Dimensions 8.25 in x 6.50 in x 14.38 in
Sub Brand HYPRESS
Length 8.25 in
Width 6.50 in
Height 14.38 in
Weight 28 lb
CSA No
