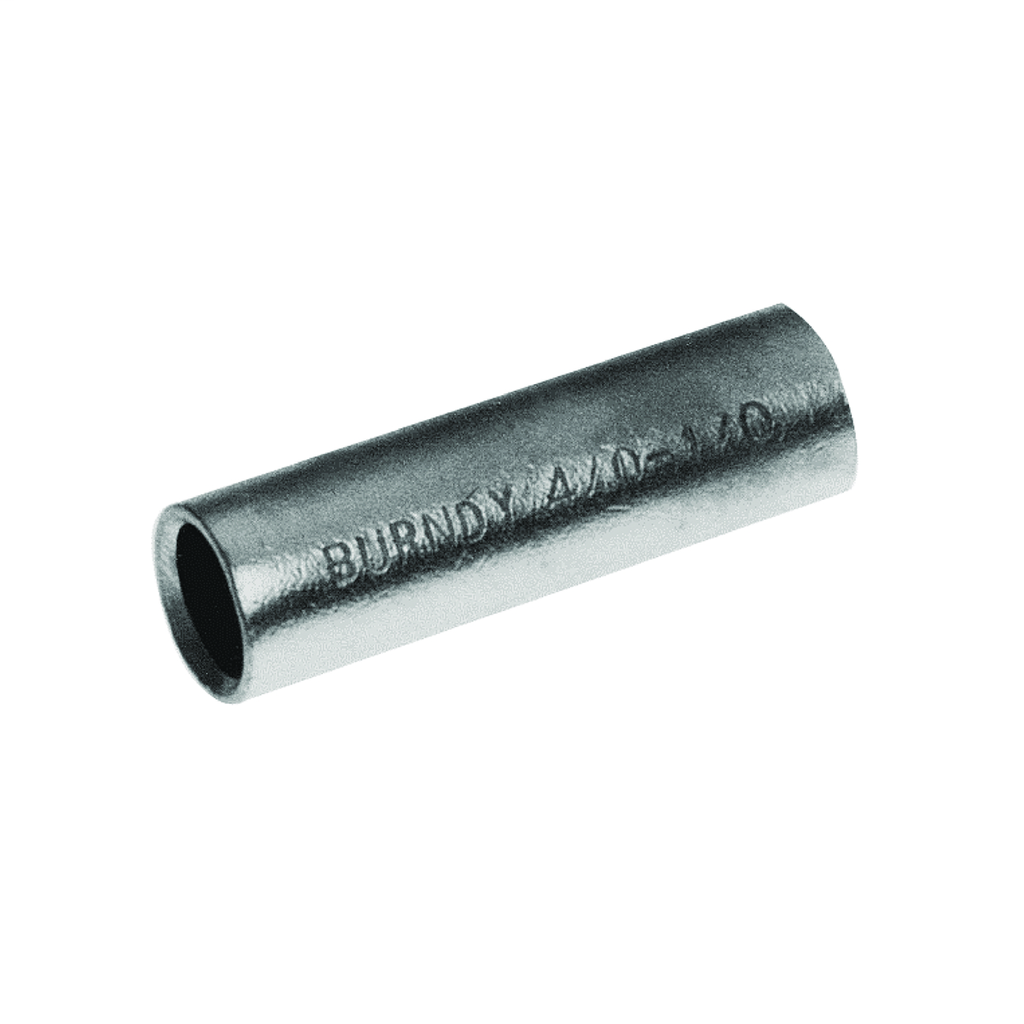

BUR Y3934R CU REDUCER ADAPTER 750KC
$111.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # Y3934R
North Coast Part # 217374

Features

Features: The Y-R Reducing Adapter Has Been Designed To Allow Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes, To Use, Simply Insert The Reducer Into The Barrel, Insert The Wire Into The Reducer Adapter And Crimp The Outer Barrel Using Its Recommended Tooling, Wide Range Of Conductors Are Accommodated: Lowers Inventory Requirements And Affords Maximum Versatility, Same Die Set For All Legs Of The Connection: Permits The Same Tool And Die Combination Normally Used On The Compression Barrel, Length Fits The Long Barrel Connector Design (YS, YA): Can Be Used On All Long Barrel Connectors, Field Cut To Fit Shorter Length Compression Barrels (YS-L, YA-L), Manufactured From High Conductivity Electrolytic Copper And Electro-Tin Plated: Provides Maximum Conductivity Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, And Provides Long Lasting Corrosion Resistance, Conductor Type: Copper

Specifications

General

  • Application: For Copper Conductors, Allowing Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes
  • Connector Type: Reducer
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Item Type: 3B
  • Material: Copper
  • Plated: Y
  • Plating Type: Tin Plated
  • Sub Brand: REDUCER/ADAPTER
  • Temperature Rating: 194
  • Type: Y-R, Compression
  • UPC: 781810001127
  • UPC 12 Digit: 7818100011277

Dimensions

  • Dimension - B Length inch: 2.88 in
  • Dimension - Inside Diameter inch: 0.83 in
  • Dimension - L Length Overall mm: 73 mm
  • Dimension - Length Overall inch: 2.88 in
  • Dimension - Outside Diameter inch: 1.017 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Str Run: 750 kcmil
  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 kcmil
  • Conductor - Copper Str Tap: 500 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Overview

UPC 78181000112
GTiN 00781810001127
Finish Tin Plated
Size 2.25 IN Length X 117 IN Maximum Outer-Diameter
Type Y-R, Compression
Material Copper
Conductor Size 500 MCM
Applications For Copper Conductors, Allowing Large Size, Long Barrel, Copper Long Barrel HYDENT, HYSPLICE And HYTEE Terminals, Splices, And T Taps To Be Used On Smaller Conductor Sizes
Temperature Rating 194
Family Brand Name Burndy
Sub Brand REDUCER/ADAPTER
Length 2.88 in
Connection Type Reducer
Plating Type Tinned
Plated? Yes
CSA No
Max Voltage 35000 V
