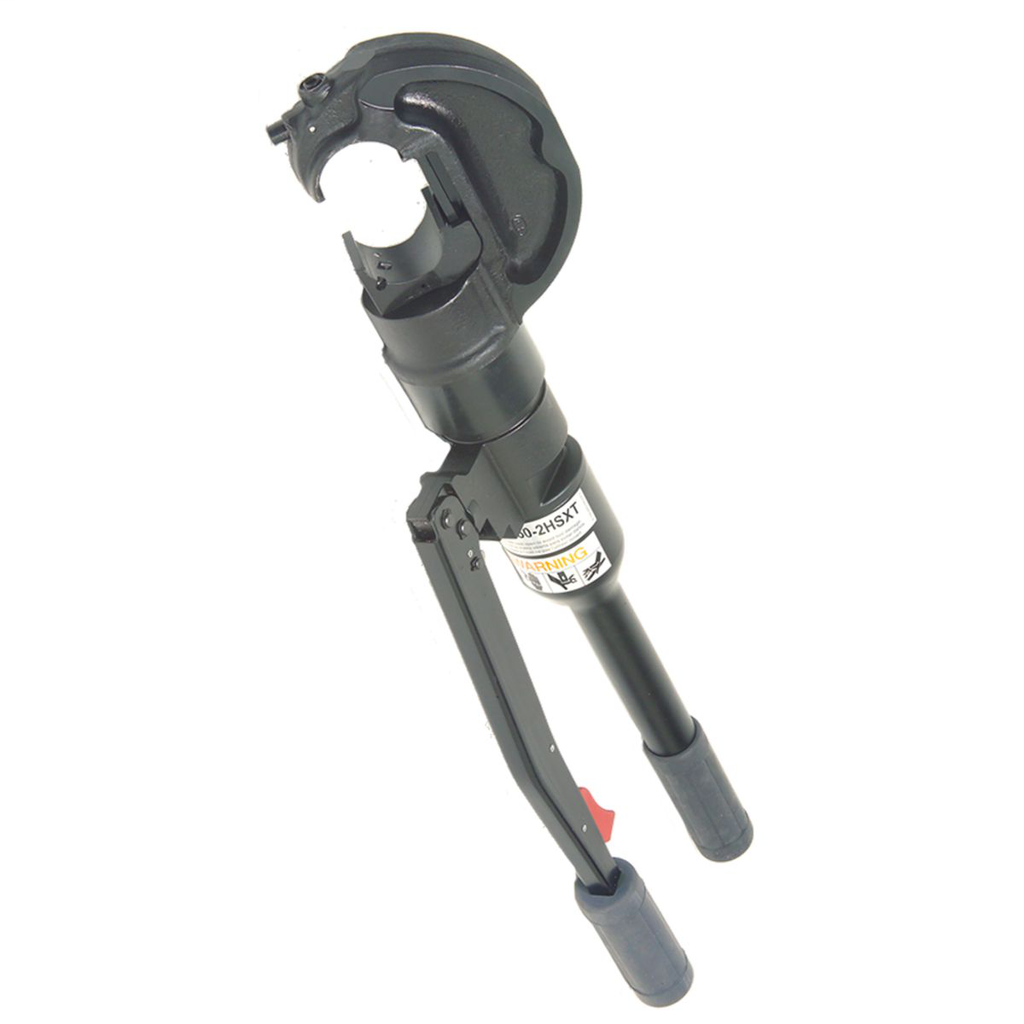

BUR Y750HSXT 750 SELF CONTAINED HYP
Product image thumbnail 0
Product image thumbnail 1
$3,322.44/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # Y750HSXT
North Coast Part # 425786

Features

  • Easy tool positioning with its 355 head rotation
  • Patented rapid advance pump for faster crimps
  • Comfort grip handles
  • Audible "pop-off" pressure relief valve
  • Handle drain trigger

Specifications

General

  • Application: Crimping
  • Crimp Force Capacity: 12 ton
  • Die Type: U DIE
  • Sub Brand: HYPRESS
  • Tool Type: Self-Contained Hydraulic Crimper
  • Trade Name: HYPRESS™
  • Type: Crimpers
  • UPC: 781810458600
  • UPC 12 Digit: 7818104586000

Dimensions

  • Height: 2.90 in
  • Jaw Width: 1.70 in
  • Length: 23.96 in
  • Weight: 17.2 lb
  • Width: 8.71 in

Conductor Related

  • Crimping Ranges: Copper: #14 sol. - 750 kcmil; Aluminum: #8 sol. - 750 kcmil; ACSR: #4 AWG - 556.5 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Categories

Overview

UPC 78181045860
GTiN 00781810458600
Width 8.71 in
Type Self-Contained, Hydraulic, C-Head
Applications For Crimping, Tension Sleeves, Taps, Aerial Cable, Terminals and Splices, Hyground Compression Grounding
Depth 8.9 in
Height 2.90 in
Family Brand Name Burndy
Sub Brand Hypress
Length 23.96 in
Weight 17.2 lb
Crimping Force 12 t
Handle Type Comfort Grip
Pressure Rating 700 bar
Overall Length 23.96 in
CSA No
