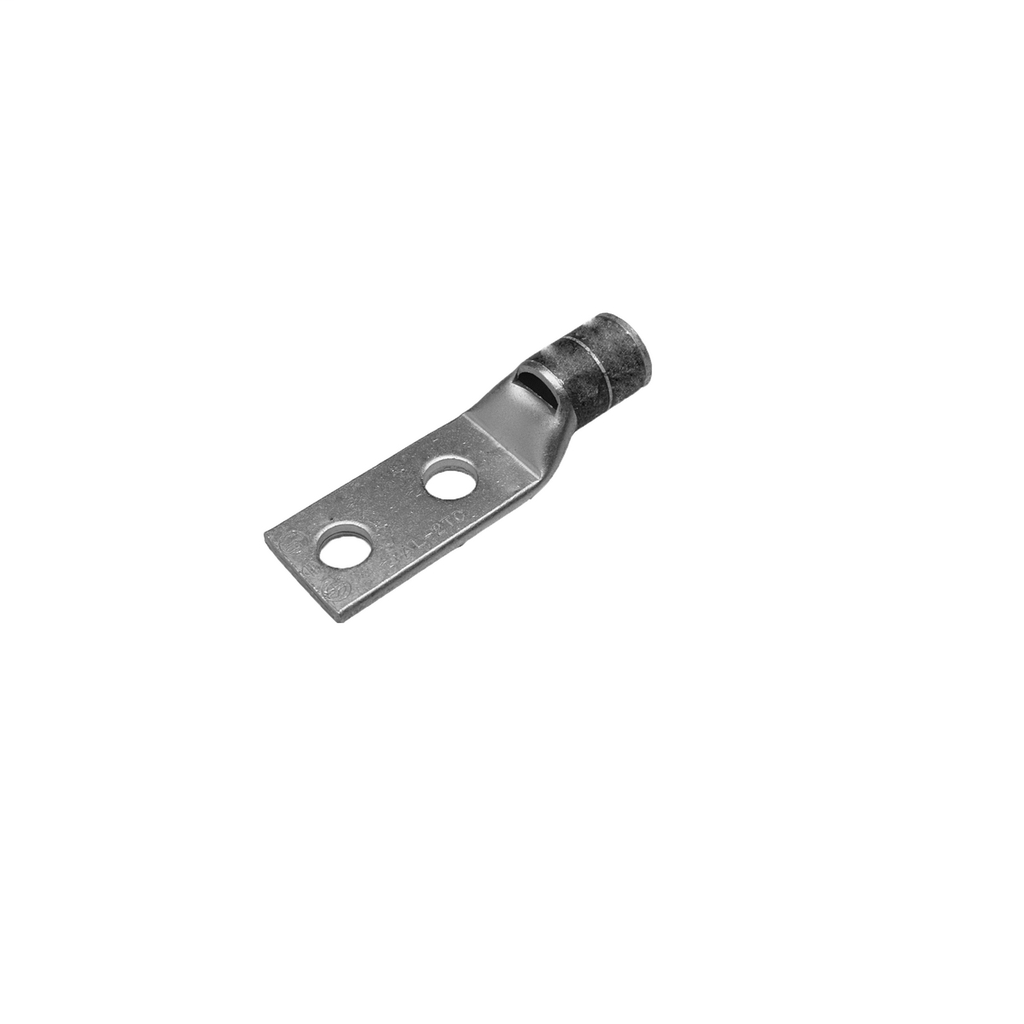

BUR YA25L2TC14E2 CU HYDENT-1/0 STR-

Specifications

General

• Application: For Code Conductor
• Color Code: Pink
• Connector Type: Terminal
• Die Index: 12;348
• Feature - Barrel Type: Standard
• Material: Copper
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• UPC: 781810018231
• UPC 12 Digit: 7818100182311

Dimensions

• Bolt Size: 1/4 in
• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Hole Size inch: 0.27 in
• Dimension - D inch: 1.39 in
• Dimension - Hole Size inch: 0.27 in
• Dimension - Hole Size mm: 7 mm
• Dimension - L Length Overall mm: 68 mm
• Dimension - Length Overall inch: 2.66 in
• Dimension - N inch: 0.31 in
• Dimension - Outside Diameter inch: 0.51 in
• Dimension - Pad Width inch: 0.75 in
• Dimension - Strip Length inch: 15/16
• Dimension - Stud Size inch: 1/4
• Dimension - Z inch: 0.33 in
• Length: 2.66 in
• Outside Diameter: 0.51 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper Str Navy Size: 100 (61)
• Conductor - Copper Str Size: 1/0
• Conductor - Copper Str Size Range: 1/0
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Feature - Barrel Style

• Chamfered
• Skived
