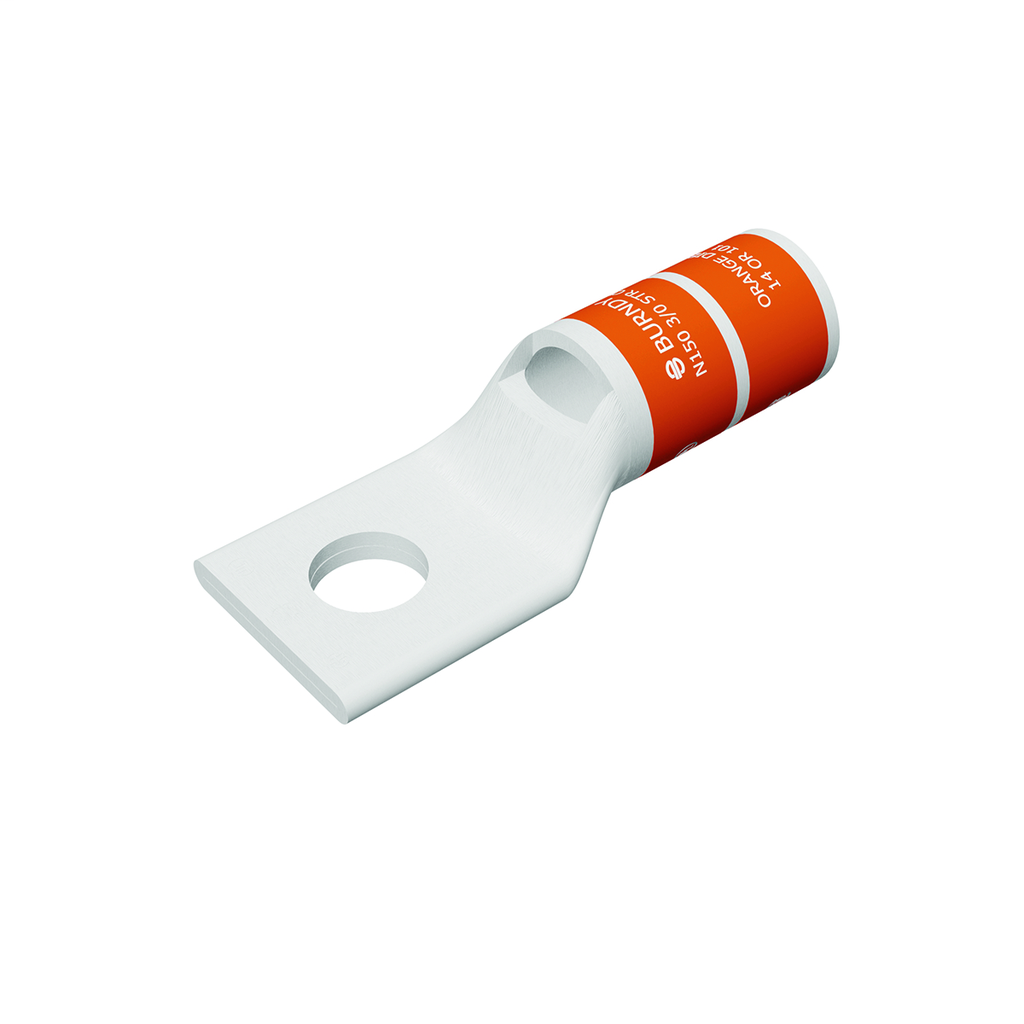

BUR YA27L4 CULUG-3/0STR-3/8-BULKPKG
$22.43/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA27L4
North Coast Part # 932878

Specifications

General

  • Application: For Use On: UL Listed 90 DEG C, 600 Volts to 35kV ,For Code Conductor
  • Color Code: Orange
  • Connector Type: Terminal
  • Die Index: 14
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: HYLUG,TERMINALS
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810103197

Dimensions

  • Dimension - B Length fraction: 1 in
  • Dimension - B Length inch: 1.00 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - D inch: 0.83 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 58 mm
  • Dimension - Length Overall inch: 2.29 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.62 in
  • Dimension - Pad Width inch: 0.91 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.42 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size Range: N/A
  • Conductor - Copper Str Navy Size: 150 (61) Navy
  • Conductor - Copper Str Navy Size Range: 150 (61) Navy
  • Conductor - Copper Str Size: 3/0 AWG
  • Conductor - Copper Str Size Range: 3/0 AWG
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Feature - Barrel Style

  • Chamfered
  • Skived

Overview

UPC 78181010319
GTiN 00781810103197
Color Orange
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.375 in
Number of Holes 1
Applications For Use On: UL Listed 90 DEG C, 600 Volts to 35kV ,For Code Conductor
Cable Size 3/0 AWG Code, Navy 150
Family Brand Name Burndy
Sub Brand HYLUG,TERMINALS
Length 2.29 in
Hole Size 10 mm
Conductor Size 3/0 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Orange
