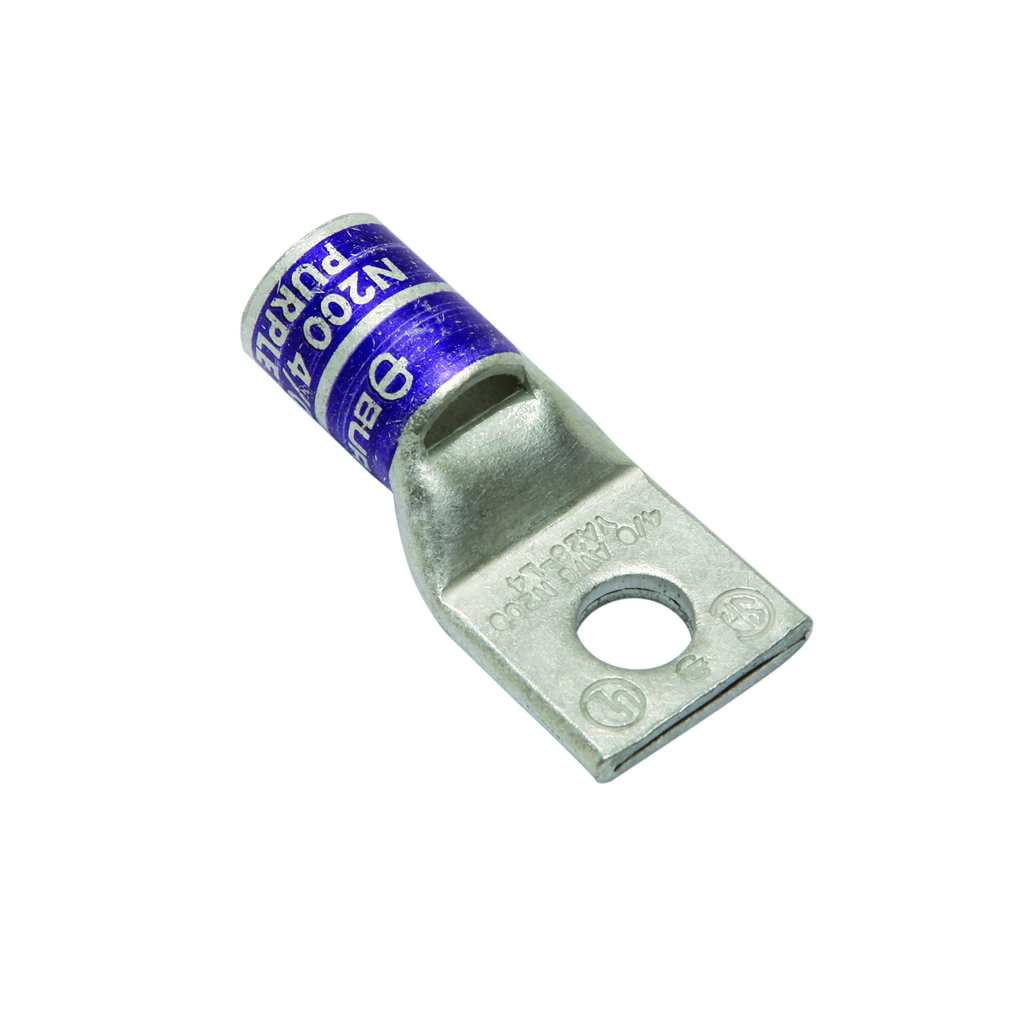

BUR YA28L4 CU HYLUG-4/0STR-3/8 STU

Specifications

General

• Application: For Use On: UL Listed 90 DEG C, 600 Volts to 35kV ,For Code Conductor
• Color Code: Purple
• Connector Type: Terminal
• Die Index: 15
• Feature - Barrel Type: Standard
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: TERMINALS, HYLUG
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• UPC: 781810112731

Dimensions

• Dimension - B Length fraction: 7/8 in
• Dimension - B Length inch: 0.88 in
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - D inch: 0.83 in
• Dimension - Hole Size mm: 10 mm
• Dimension - L Length Overall mm: 56 mm
• Dimension - Length Overall inch: 2.21 in
• Dimension - N inch: 0.41 in
• Dimension - Outside Diameter inch: 0.69 in
• Dimension - Pad Width inch: 1.02 in
• Dimension - Strip Length inch: 1-1/8
• Dimension - Stud Size inch: 3/8
• Dimension - Z inch: 0.42 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper DLO Size Range: N/A
• Conductor - Copper Str Navy Size: 200 (61) Navy
• Conductor - Copper Str Navy Size Range: 200 (61) Navy
• Conductor - Copper Str Size: 4/0 AWG
• Conductor - Copper Str Size Range: 4/0 AWG
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL467
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 100

Feature - Barrel Style

• Chamfered
• Skived
