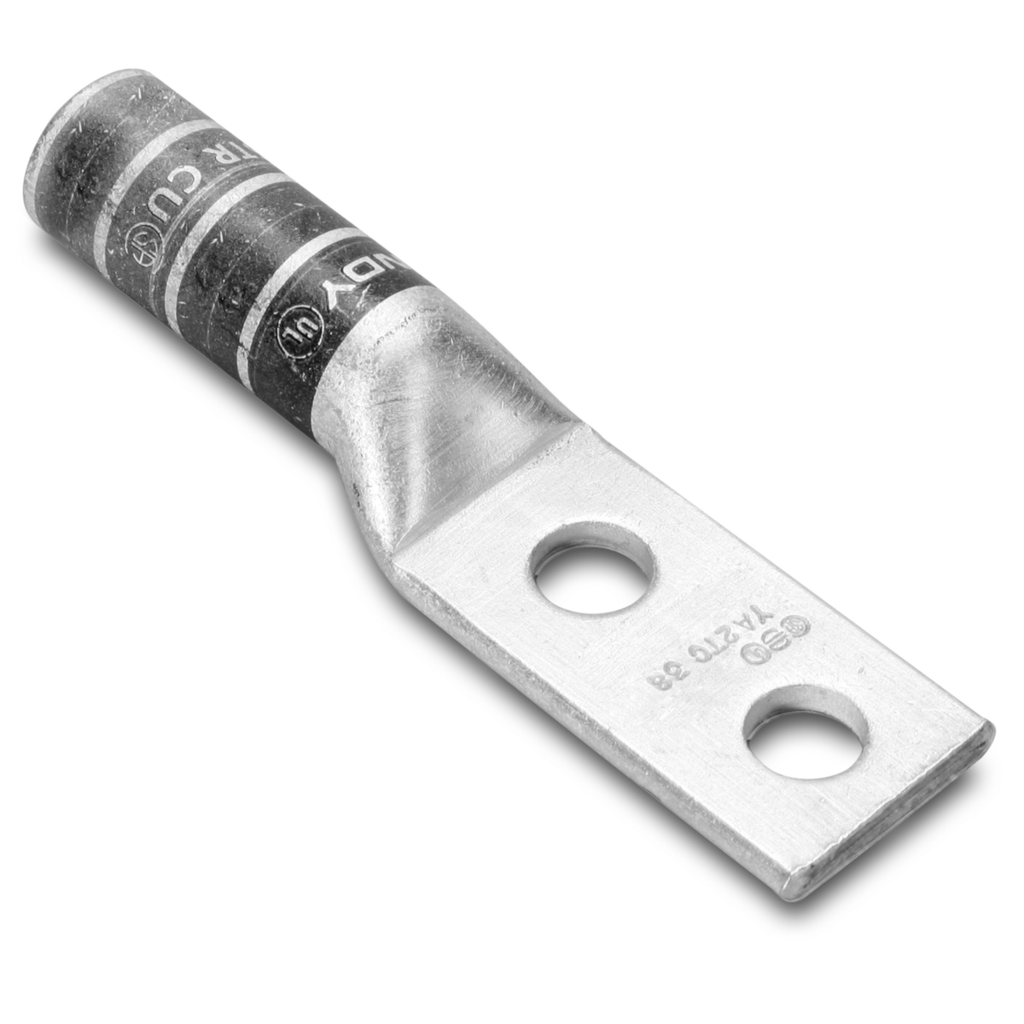

BUR YA2C2TC38 HYLUG-2STR-(2)3/8STUD
Product image thumbnail 0
Product image thumbnail 1
$9.93/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA2C2TC38
North Coast Part # 153334

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Wire Strip Length: 1-5/16 IN, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 10, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Color Code: Brown, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4)

Specifications

  • Conductor - Copper Solid Size: 2 AWG
  • Conductor - Copper Solid Size Range: 2 AWG
  • Conductor - Copper Str Navy Size: 60 (37) Navy
  • Conductor - Copper Str Size: 2 AWG
  • Conductor - Copper Str Size Range: 2 AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length inch: 1.25 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - D inch: 1.84 in
  • Dimension - Hole Size inch: 0.40 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 87 mm
  • Dimension - Length Overall inch: 3.42 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.42 in
  • Dimension - Pad Width inch: 0.60 in
  • Dimension - Strip Length inch: 1-5/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.43 in
  • Each - Height: 0.42 in
  • Each - Length: 3.12 in
  • Each - Width: 0.6 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YA2C2TC38_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YA2C2TC38_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/YA2C2TC38_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181050351
Item Long Description Copper Compression Lug, 2 Hole w/o Inspection Window, 2 AWG, 3/8" Stud, 1" Stud Hole Spacing, Long Barrel, Tin Plated.
GTiN 00781810503515
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.375 in
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size 2 AWG, 35 SQ-MM For Class 2 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 3.42 in
Hole Size 10 mm
Conductor Size 2 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
