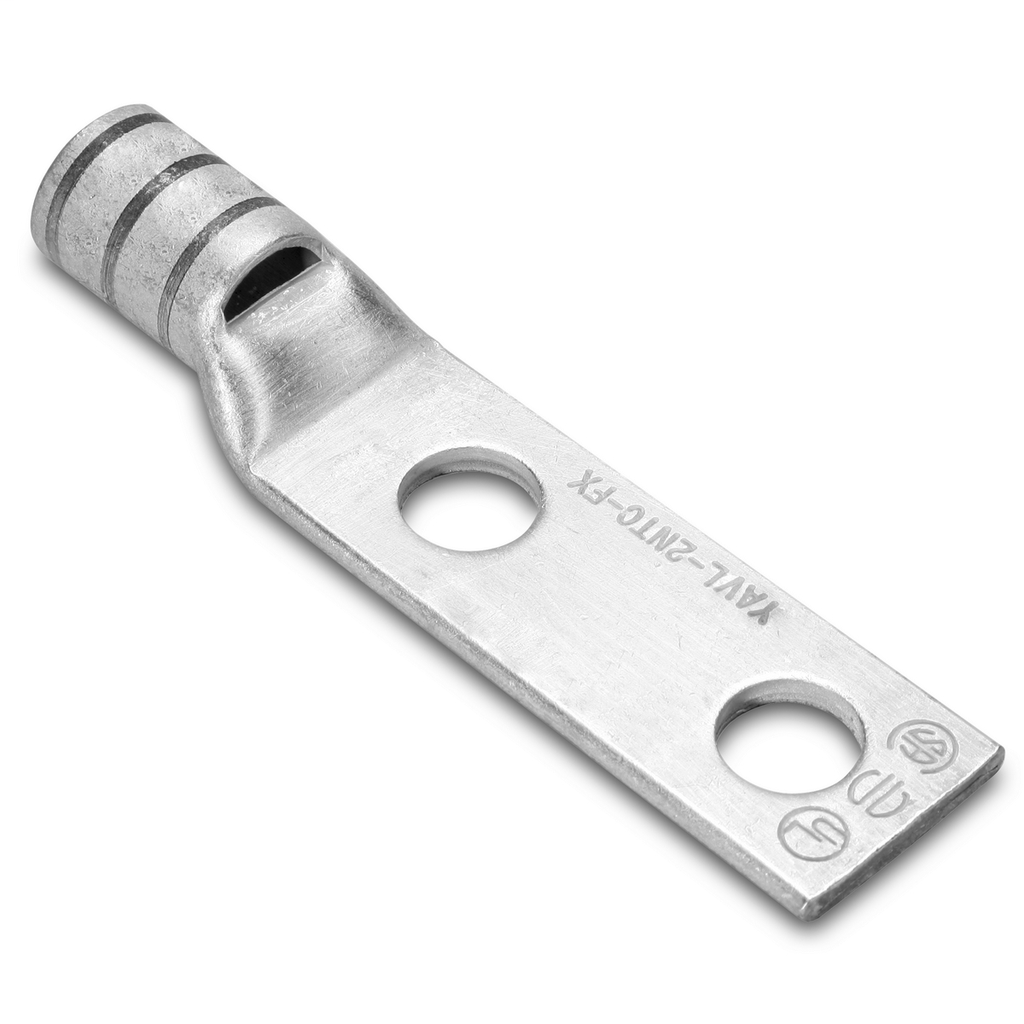

BUR YA30L2TC38FX CU HYLUG-250 FLEX-
$36.77/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA30L2TC38FX
North Coast Part # 17891

Specifications

General

  • Color Code: Yellow
  • Connector Type: Terminal
  • Die Index: 16
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 2
  • Plated: Y
  • Plating Type: Tin
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810041819
  • UPC 12 Digit: 7818100418199

Dimensions

  • Dimension - B Length inch: 1.03 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - Hole Size inch: 0.41 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 88 mm
  • Dimension - Length Overall inch: 3.45 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.81 in
  • Dimension - Pad Width inch: 1.20 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Z inch: 0.43 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Flex G Size: 250 kcmil
  • Conductor - Copper Flex H Size: 250 kcmil
  • Conductor - Copper Str Size: 250 kcmil
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 10

Overview

UPC 78181004181
GTiN 00781810041819
Family Brand Name Hubbell
Length 3.45 in
Hole Size 10 mm
Material Copper
Conductor Size 250 MCM
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Yellow
