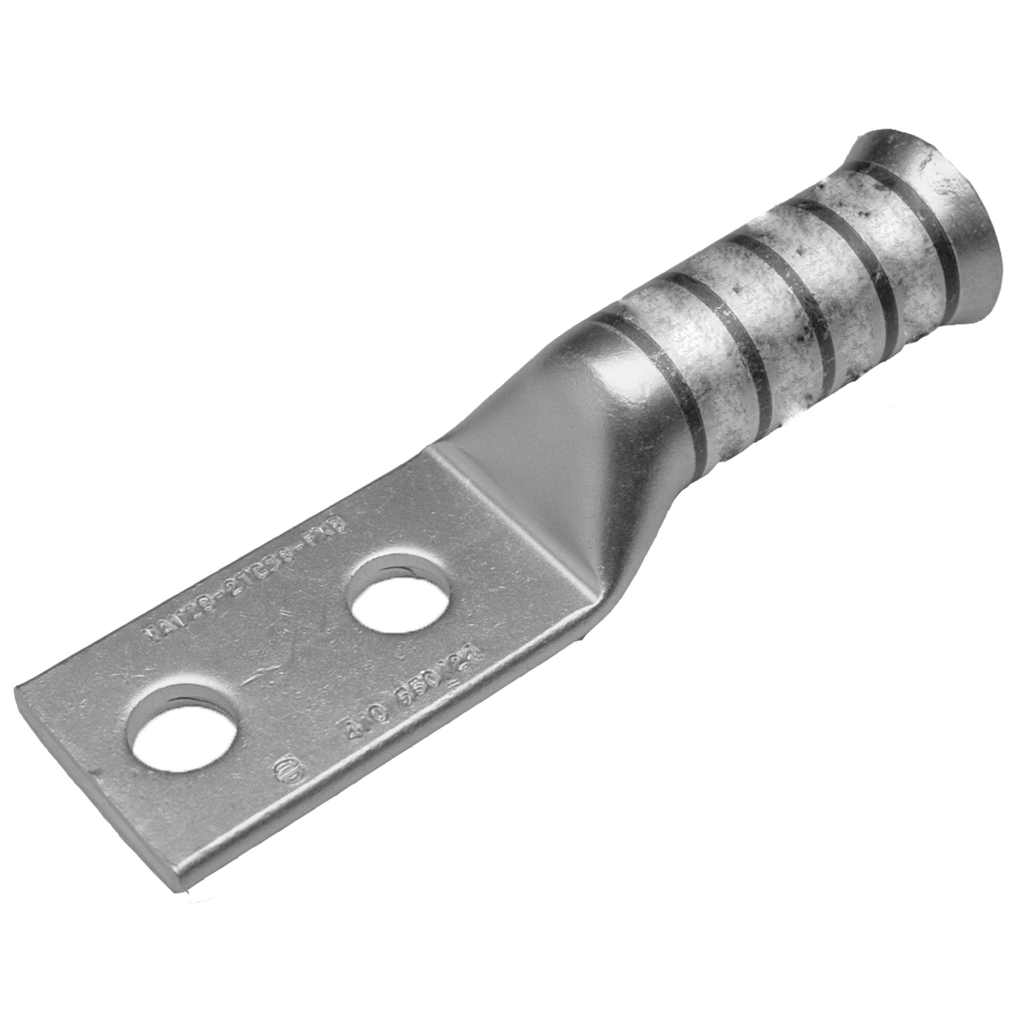

BUR YA312NFXB BELLED HYLUG-263 FLEX
Product image thumbnail 0
Product image thumbnail 1
$41.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA312NFXB
North Coast Part # 153960

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Die Index: 17, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (4), Y46 Tool, U30RT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible Copper

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper DLO Size: 263 (650/#24)
  • Conductor - Copper DLO Size Range: 4/0 AWG
  • Conductor - Copper Flex G Size: 250 kcmil
  • Conductor - Copper Flex G Size Range: 4/0 AWG
  • Conductor - Copper Flex H Size: 250 kcmil
  • Conductor - Copper Flex H Size Range: 4/0 AWG
  • Conductor - Copper Flex I Size: 250
  • Conductor - Copper Flex I Size Range: 4/0 AWG
  • Conductor - Copper Flex K Size: 250
  • Conductor - Copper Flex K Size Range: 4/0 AWG
  • Conductor - Copper Flex M Size: 250
  • Conductor - Copper Flex M Size Range: 250
  • Conductor - Copper Str Size: 250
  • Conductor - Copper Str Size Range: 250 kcmil
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 2-3/16 in
  • Dimension - B Length inch: 2.18 in
  • Dimension - Bolt Hole Size inch: 0.56 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 149mm
  • Dimension - Length Overall inch: 5.85 in
  • Dimension - N inch: 0.62 in
  • Dimension - Outside Diameter inch: 0.88 in
  • Dimension - Pad Width inch: 1.29 in
  • Dimension - Strip Length inch: 2-1/4 in
  • Dimension - Stud Size inch: 1/2
  • Dimension - Thread Size: 1/2
  • Dimension - Z inch: 0.64 in
  • Each - Height: 0.88 in
  • Each - Length: 5.85 in
  • Each - Width: 1.29 in
  • Feature - Barrel Style: Belled
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: yes
  • Plating Type: Tin Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Flex Conductor
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 2-1/4 IN, Die Index: 17, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT Die, (4), Y46 Tool, U30RT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Flexible Copper
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Long Barrel, Tin Plated

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181003990
Item Long Description 250 kcmil I, K, M, 262 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90C, Up to 35kV, White Color Code, 17 or 298 Die Index.
GTiN 00781810039908
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.5 in
Number of Holes 2 Hole
Applications For Flex Conductor
Cable Size 250 KCMIL Flex, 637/24 (Class I, K And M), 150 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 5.85 in
Hole Size 14 mm
Connection Type Terminal
Plating Type Tinned
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding White
