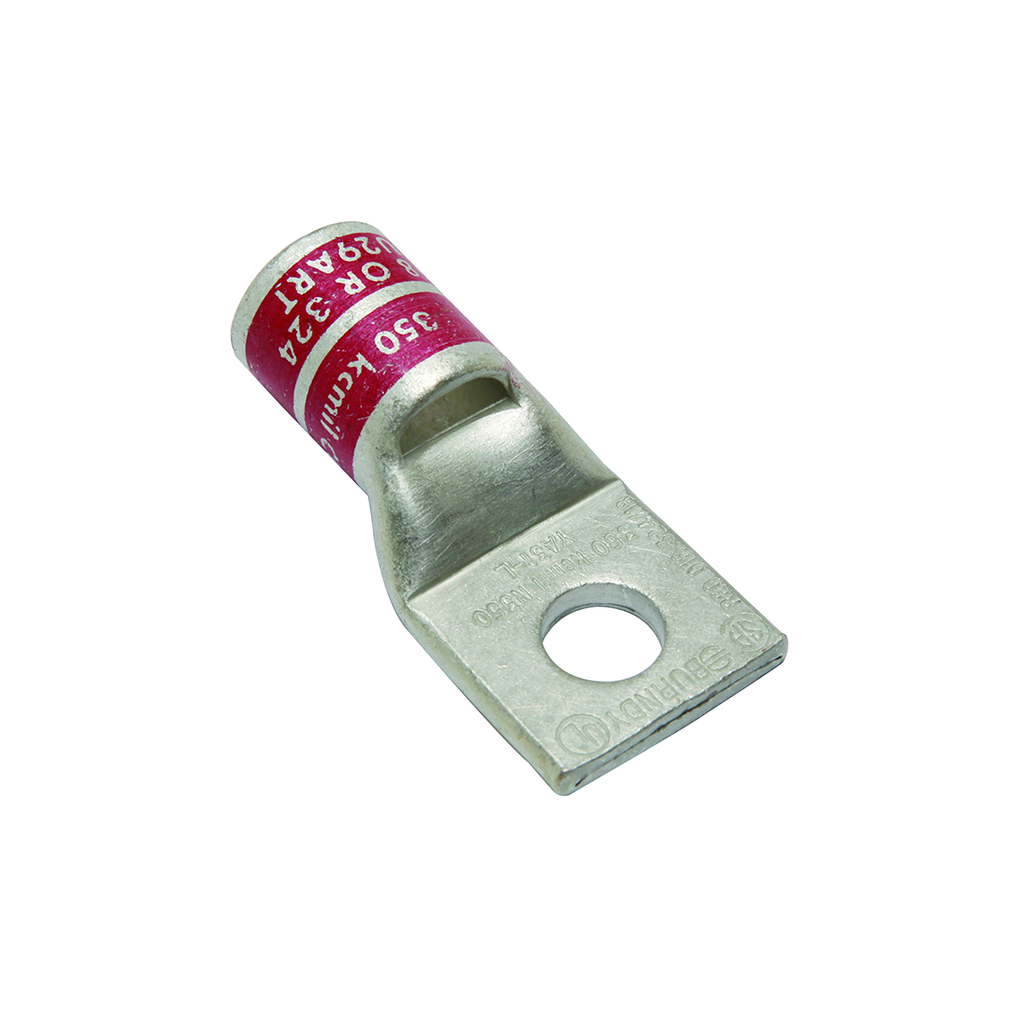

Burndy YA31L36 350 MCM 1-Hole 7/8 Inch Stud Copper Short Lug
$17.21/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA31L36
North Coast Part # 348320

Specifications

General

  • Color Code: Red
  • Connector Type: Terminal
  • Die Index: 18
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810018934

Dimensions

  • Dimension - B Length fraction: 1-1/16 in
  • Dimension - B Length inch: 1.06 in
  • Dimension - Bolt Hole Size inch: 0.91 in
  • Dimension - Bolt Size fraction: 7/8
  • Dimension - D inch: 2.35 in
  • Dimension - Hole Size mm: 24 mm
  • Dimension - L Length Overall mm: 102 mm
  • Dimension - Length Overall inch: 4.02 in
  • Dimension - N inch: 1.19 in
  • Dimension - Outside Diameter inch: 0.88 in
  • Dimension - Pad Width inch: 1.29 in
  • Dimension - Strip Length inch: 1-1/8
  • Dimension - Stud Size fraction: 7/8
  • Dimension - Stud Size inch: 7/8
  • Dimension - Z inch: 1.16 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size Range: N/A
  • Conductor - Copper Str Navy Size: 350 (91) Navy
  • Conductor - Copper Str Navy Size Range: 350 (91) Navy
  • Conductor - Copper Str Size: 350 kcmil
  • Conductor - Copper Str Size Range: 350 kcmil
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 10

Feature - Barrel Style

  • Chamfered
  • Skived

Overview

UPC 78181001893
GTiN 00781810018934
Family Brand Name Hubbell
Length 4.02 in
Hole Size 24 mm
Material Copper
Conductor Size 350 MCM
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Red
