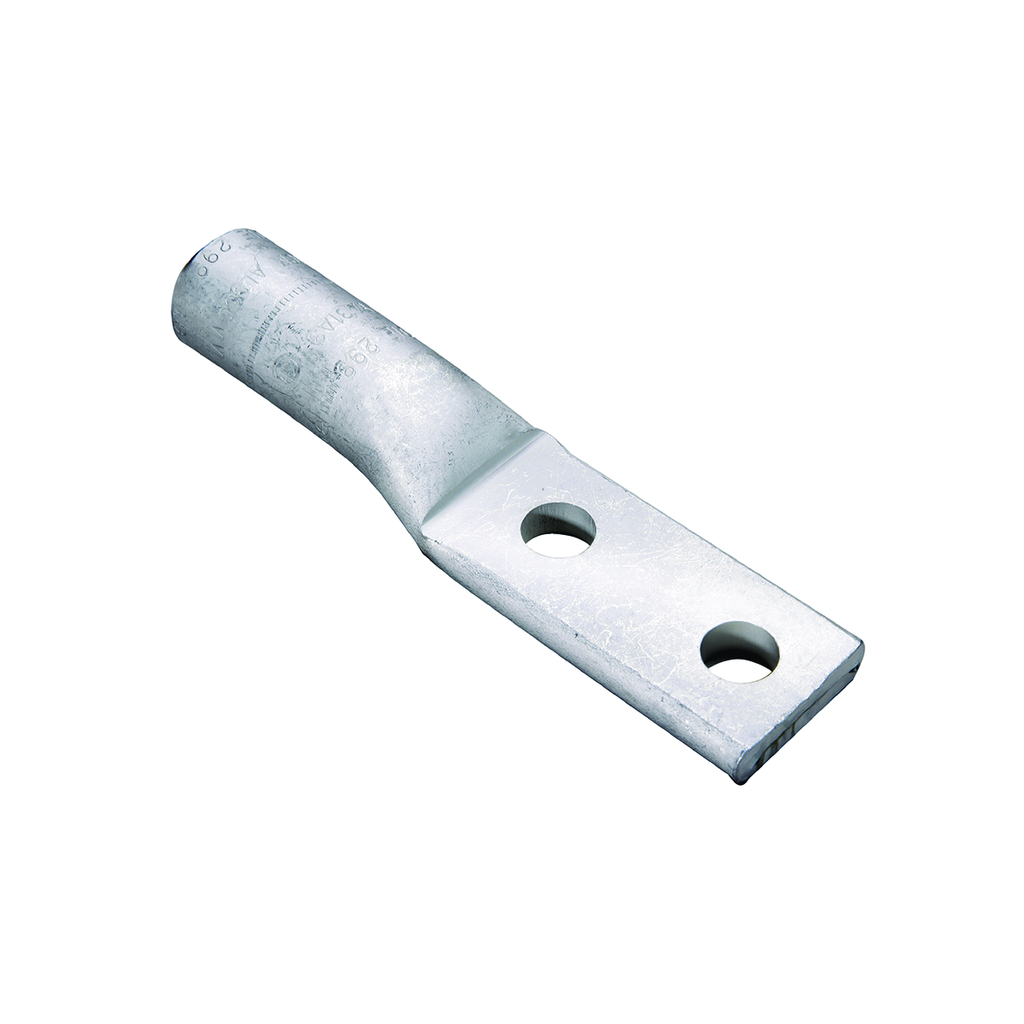

BUR YA32A5 AL HYLUG 400KCMIL 2-HOLE
$95.20/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA32A5
North Coast Part # 339878

Features

UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight

Specifications

General

  • Application: For Aluminum & Copper Conductors
  • Color Code: Green
  • Connector Type: Terminal
  • Die Index: 472
  • Feature - Barrel Type: Standard
  • Item Type: 3B
  • Material: Aluminum
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: COMPRESSION TERMINAL
  • Temperature Rating: 194
  • Type: YA-L-NT
  • UPC: 781810113523
  • UPC 12 Digit: 7818101135233

Dimensions

  • Dimension - B Length fraction: 2-1/4 in
  • Dimension - B Length inch: 2.26 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - D inch: 1.89 in
  • Dimension - Hole Size inch: 0.44 in
  • Dimension - Hole Size mm: 11 mm
  • Dimension - L Length Overall mm: 125 mm
  • Dimension - Length Overall inch: 4.93 in
  • Dimension - N inch: 0.44 in
  • Dimension - Outside Diameter inch: 1.19 in
  • Dimension - Pad Width inch: 1.62 in
  • Dimension - Strip Length inch: 2
  • Dimension - Stud Size inch: 3/8
  • Dimension - Thread Size: 3/8
  • Dimension - Z inch: 0.45 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - AL Str Size: 400 kcmil
  • Conductor - AL Str Size Range: 400 kcmil
  • Conductor - Copper DLO Size Range: N/A
  • Conductor - Copper Str Size: 400 kcmil
  • Conductor - Copper Str Size Range: 400 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181011352
GTiN 00781810113523
Color Green
Type YA-L-NT
Number of Holes 2
Applications For Aluminum & Copper Conductors
Family Brand Name Burndy
Sub Brand COMPRESSION TERMINAL
Length 4.93 in
Hole Size 11 mm
Material Aluminum
Conductor Size 400 MCM
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Green
