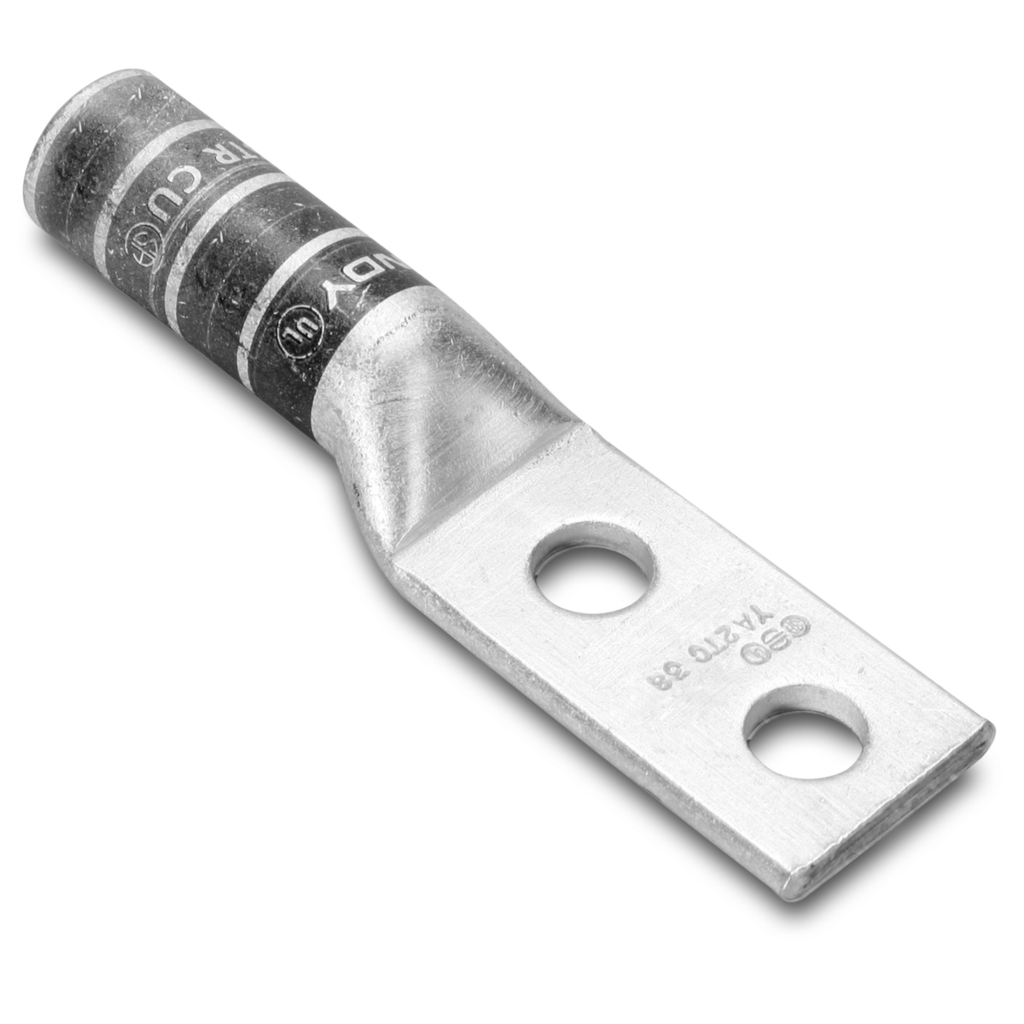

BUR YA342TC38 CULUG-500KCM-3/8X1
Product image thumbnail 0
Product image thumbnail 1
$42.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA342TC38
North Coast Part # 66769

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 20, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/2 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4)

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 kcmil
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 2-1/4 in
  • Dimension - B Length inch: 2.25 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - Hole Size inch: 0.40 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 124 mm
  • Dimension - Length Overall inch: 4.90 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 1.06 in
  • Dimension - Pad Width inch: 1.55 in
  • Dimension - Strip Length inch: 2-5/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.43 in
  • Each - Height: 1.06 in
  • Each - Length: 4.9 in
  • Each - Width: 1.55 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Code Conductor
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 20, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/2 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4)
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Long Barrel, Tin Plated

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810821237
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.375 in
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size 500 KCMIL, 240 SQ-MM For Class 2 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181082123
Length 4.9 Inch
Hole Size 10 mm
Conductor Size 500 MCM
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
Width 1.55 in
Height 1.06 Inch
Country of Origin USA
Overall Length 4.90 in
