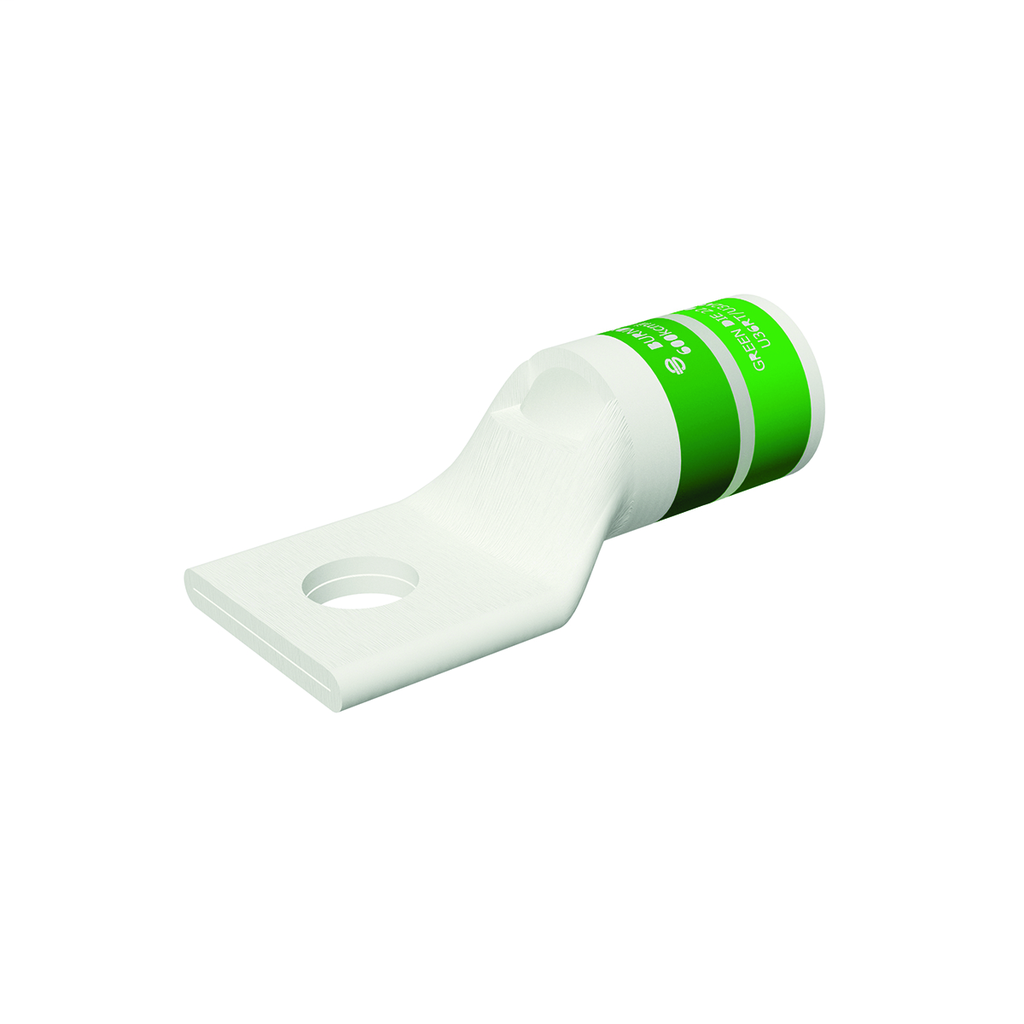

BUR YA36L11 CULUG-600 KCMIL-1/2 STU
$45.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA36L11
North Coast Part # 754410

Specifications

General

  • Application: For Use On: UL Listed 90 DEG C, 600 Volts to 35kV ,For Code Conductor
  • Color Code: Green
  • Connector Type: Terminal
  • Die Index: 22;472
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: TERMINALS, HYLUG
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810250396

Dimensions

  • Dimension - B Length fraction: 1-3/8 in
  • Dimension - B Length inch: 1.38 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - D inch: 1.08 in
  • Dimension - Hole Size mm: 13 mm
  • Dimension - L Length Overall mm: 84 mm
  • Dimension - Length Overall inch: 3.29 in
  • Dimension - N inch: 0.53 in
  • Dimension - Outside Diameter inch: 1.19 in
  • Dimension - Pad Width inch: 1.74 in
  • Dimension - Strip Length inch: 1-3/4
  • Dimension - Stud Size fraction: 1/2
  • Dimension - Stud Size inch: 1/2
  • Dimension - Z inch: 0.55 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size Range: N/A
  • Conductor - Copper Str Size: 600 kcmil
  • Conductor - Copper Str Size Range: 600 kcmil
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Feature - Barrel Style

  • Chamfered
  • Skived

Overview

UPC 78181025039
GTiN 00781810250396
Color Green
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.5 in
Number of Holes 1 Hole
Applications For Use On: UL Listed 90 DEG C, 600 Volts to 35kV ,For Code Conductor
Cable Size 600 KCMIL Code
Family Brand Name Burndy
Sub Brand TERMINALS, HYLUG
Length 3.29 in
Hole Size 13 mm
Conductor Size 600 MCM
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Green
