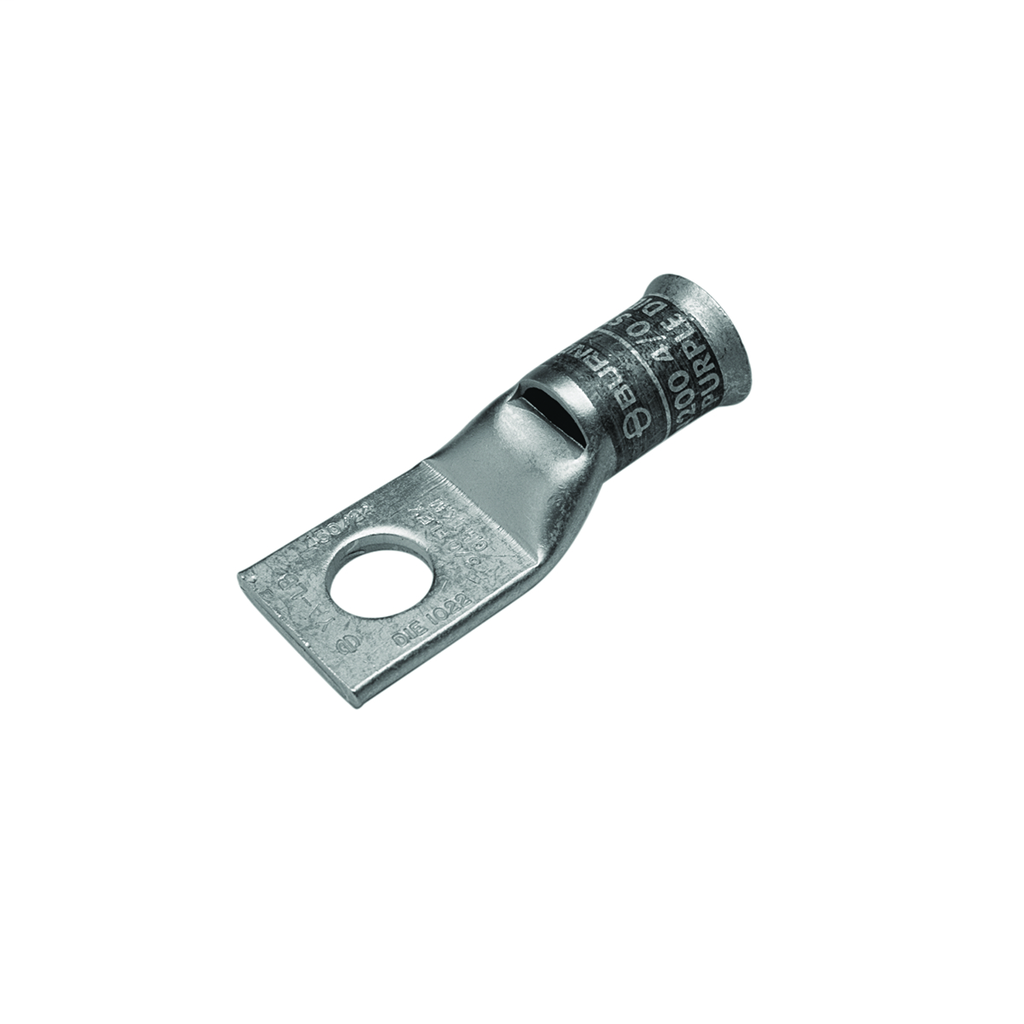

BUR YA38TC58FXB BELLED LUG 5/8 535
Product image thumbnail 0
Product image thumbnail 1
$84.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA38TC58FXB
North Coast Part # 217332

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 3-3/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: L99, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2)

Specifications

  • Conductor - Copper DLO Size: 535.3 (1325/#24)
  • Conductor - Copper DLO Size Range: 535 kcmil
  • Conductor - Copper Flex G Size: 535.3
  • Conductor - Copper Flex G Size Range: 550 kcmil
  • Conductor - Copper Flex H Size: 535.3
  • Conductor - Copper Flex H Size Range: 500 / 550 kcmil
  • Conductor - Copper Flex I Size: 535.3
  • Conductor - Copper Flex I Size Range: 500 / 550 kcmil
  • Conductor - Copper Flex K Size: 535.3
  • Conductor - Copper Flex K Size Range: 500 kcmil
  • Conductor - Copper Flex M Size: 535.3
  • Conductor - Copper Flex M Size Range: 535.3
  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 / 550 kcmil
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 3-1/16 in
  • Dimension - B Length inch: 3.08 in
  • Dimension - Bolt Hole Size inch: 0.66 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - Hole Size inch: 0.69 in
  • Dimension - Hole Size mm: 18 mm
  • Dimension - L Length Overall mm: 135 mm
  • Dimension - Length Overall inch: 5.32 in
  • Dimension - N inch: 0.66 in
  • Dimension - Outside Diameter inch: 1.25 in
  • Dimension - Pad Width inch: 1.84 in
  • Dimension - Strip Length inch: 3-3/16
  • Dimension - Stud Size inch: 5/8
  • Dimension - Z inch: 0.67 in
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Feature - Barrel Style: Belled
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • Voltage Rating: 35 kV
  • UL Listed: Yes
  • Voltage - Maximum: 35000
  • Application: Wire Termination
  • Color Code: Pink
  • Connector Type: Terminal
  • Die Index: L99
  • Finish Type: Tin-Plated
  • Material: Copper
  • Type: Long Barrel, Tin Plated

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810039878
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.625 in
Number of Holes 1 Hole
Applications For Flex Conductor
Cable Size 535.3 KCMIL, 1325/24, 300 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181003987
Length 5.32 Inch
Hole Size 18 mm
Conductor Size 500 MCM
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Pink
Width 1.84 in
Height 1-1/4 Inch
Country of Origin USA
Overall Length 5.32 in
