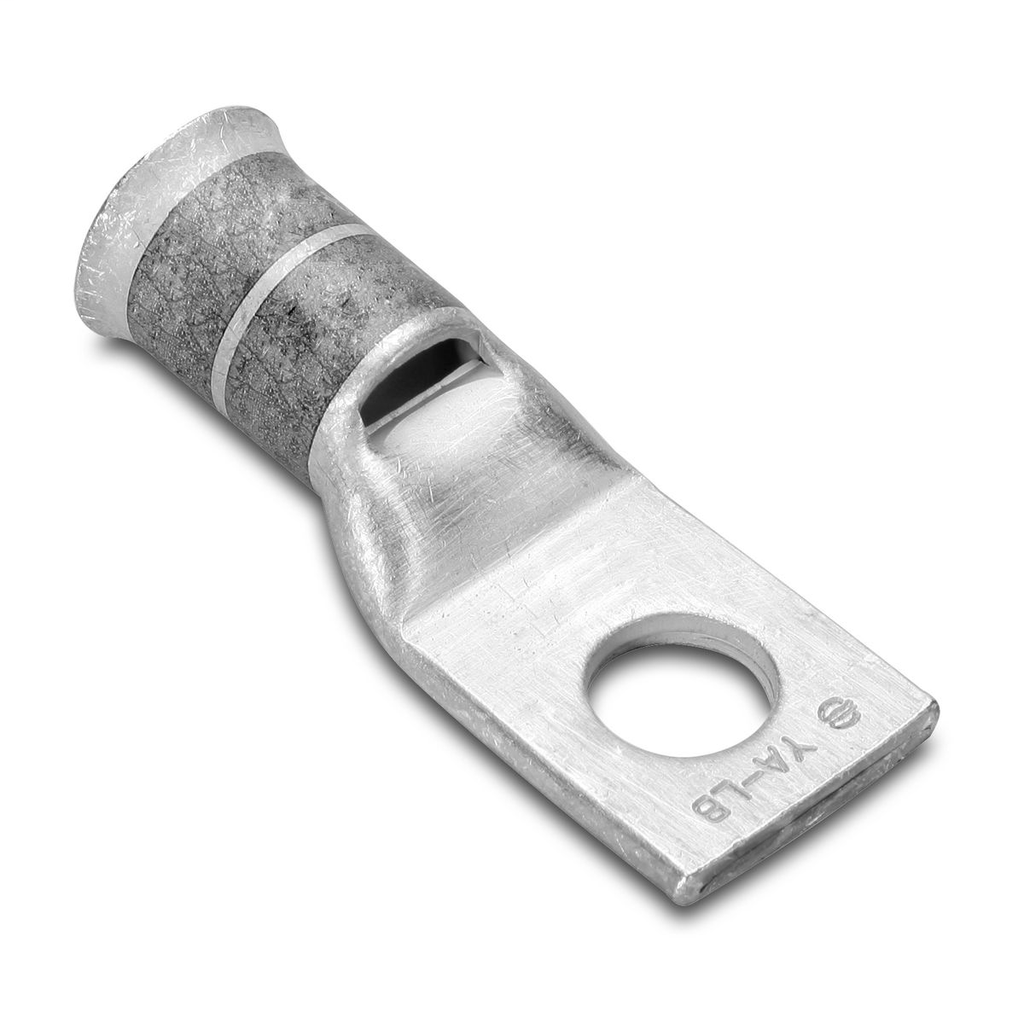

BUR YA44LB BELLUG-750/777-5/8 STUD
$92.63/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA44LB
North Coast Part # 666457

Specifications

General

  • Application: For Flex Conductor
  • Color Code: White
  • Connector Type: Terminal
  • Die Index: 1032
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Straight
  • Plated: Y
  • Plating Type: Tin -Plated
  • Sub Brand: HYLUG
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810523261
  • UPC 12 Digit: 7818105232611

Dimensions

  • Dimension - B Length inch: 1.85 in
  • Dimension - Bolt Hole Size inch: 5/8 in
  • Dimension - Bolt Size fraction: 5/8
  • Dimension - Hole Size inch: 0.69 in
  • Dimension - Hole Size mm: 17.5 mm
  • Dimension - L Length Overall mm: 122.4 mm
  • Dimension - Length Overall inch: 4.82 in
  • Dimension - N inch: 0.66 in
  • Dimension - Outside Diameter inch: 1.49 in
  • Dimension - Pad Width inch: 2.18 in
  • Dimension - Strip Length inch: 1-15/16
  • Dimension - Stud Size inch: 5/8 in
  • Dimension - Thread Size: 5/8 in
  • Dimension - Z inch: 1.34 in

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 777.7 (1925/#24)
  • Conductor - Copper Flex G Size: 750
  • Conductor - Copper Flex H Size: 750
  • Conductor - Copper Flex I Size: 650
  • Conductor - Copper Flex K Size: 600
  • Conductor - Copper Solid Size: 1000 kcmil
  • Conductor - Copper Str Size: 1000 kcmil
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 5

Feature - Barrel Style

  • Chamfered
  • Skived

Overview

UPC 78181052326
GTiN 00781810523261
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.625 in
Number of Holes 1 Hole
Applications For Flex Conductor
Cable Size Flexible Copper: 650, 750, 777.7 KCMIL, Locomotive: 777.7 KCMIL (1925/24 Strands), Class I (#24 STR): 650 KCMIL (1596 Strands), G: 750 KCMIL (427 Strands), H: 750 KCMIL (703 Strands)
Family Brand Name Burndy
Sub Brand HYLUG
Length 4.82 in
Hole Size 17.5 mm
Conductor Size 1000 MCM
Connection Type Terminal
Plating Type Tin -Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding White
