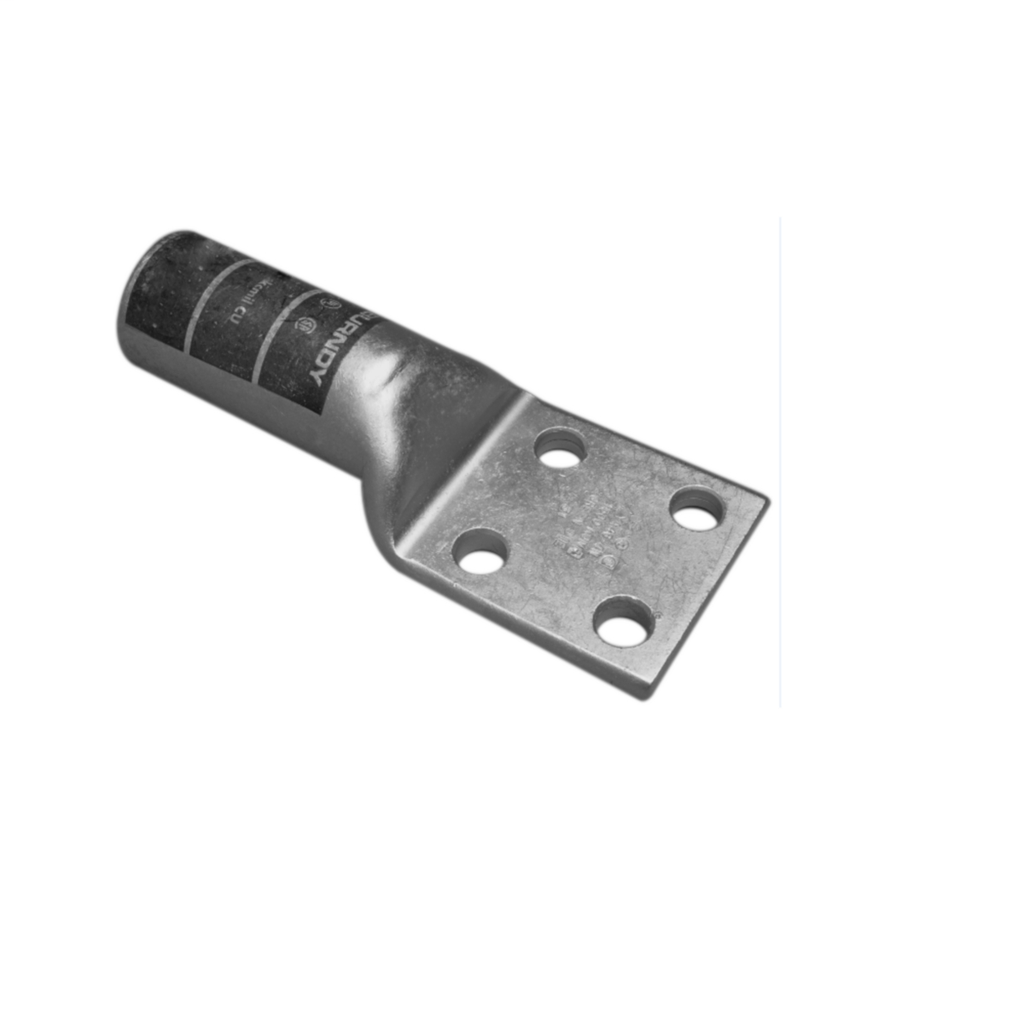

BUR YA464N CULUG-1500KCMIL-LONG-(4)
$258.59/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA464N
North Coast Part # 151165

Specifications

General

  • Application: For use on copper compression connections
  • Color Code: Green
  • Connector Type: Terminal
  • Die Index: 31
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Material: Copper
  • Physical Attribute - Number of Holes: 4
  • Plated: Y
  • Plating Type: Tin plated
  • Sub Brand: HYLUG
  • Trade Name: HYLUG™
  • Type: Long Barrel, Tin Plated
  • UPC: 781810086056
  • UPC 12 Digit: 7818100860566

Dimensions

  • Dimension - B Length inch: 3.19 in
  • Dimension - Bolt Hole Size inch: 0.56 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - F Width Center to Center inch: 1.75 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 192 mm
  • Dimension - Length Overall inch: 7.55 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 1.84 in
  • Dimension - Pad Width inch: 3.00 in
  • Dimension - Strip Length inch: 3-1/4
  • Dimension - Stud Size inch: 1/2
  • Dimension - Thread Size: 1/2
  • Dimension - Z inch: 0.64 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Str Size: 1500 kcmil
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181008605
GTiN 00781810086056
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.5 in
Number of Holes 4
Applications For use on copper compression connections
Cable Size 1500 KCMIL
Family Brand Name Burndy
Sub Brand HYLUG
Length 7.55 in
Hole Size 14 mm
Conductor Size 1500 MCM
Connection Type Terminal
Plating Type Tinned
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Green
