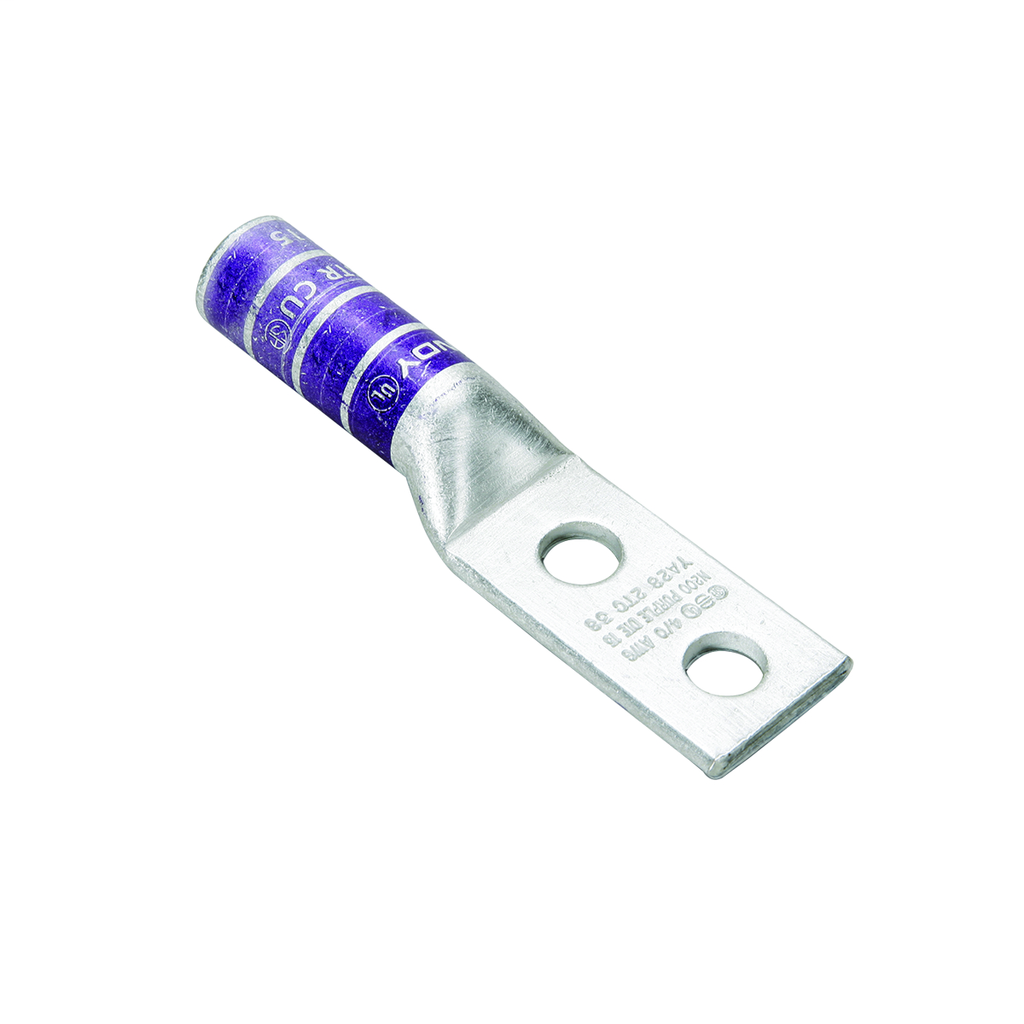

BUR YA4C2N CULUG- 4 STR-NEMA-LONG
Product image thumbnail 0
Product image thumbnail 1
$10.35/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA4C2N
North Coast Part # 161426

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 8, Finish: Electro-Tin Plated, Wire Strip Length: 1-3/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (2), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4)

Specifications

  • Conductor - Copper Str Navy Size: 40 (19) Navy
  • Conductor - Copper Str Navy Size Range: 40 (19) Navy
  • Conductor - Copper Str Size: 4 AWG
  • Conductor - Copper Str Size Range: 4 AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 1-1/8 in
  • Dimension - B Length inch: 1.12 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - D inch: 3.02 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 113 mm
  • Dimension - Length Overall inch: 4.45 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 0.34 in
  • Dimension - Pad Width inch: 0.83 in
  • Dimension - Strip Length inch: 1-3/16
  • Dimension - Stud Size inch: 1/2
  • Dimension - Thread Size: 1/2
  • Dimension - Z inch: 0.64 in
  • Each - Height: 0.34 in
  • Each - Length: 4.45 in
  • Each - Width: 0.83 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • Voltage Rating: 35 kV
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YA4C2N_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YA4C2N_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/YA4C2N_MODEL-STEP.zip
  • UL Listed: Yes
  • Voltage - Maximum: 35000
  • Application: Wire Termination
  • Color Code: Gray
  • Connector Type: Terminal
  • Die Index: 8346
  • Finish Type: Tin-Plated
  • Material: Copper
  • Temperature Rating: 194
  • Type: Long Barrel, Tin Plated

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810501467
Type Long Barrel, Tin Plated
Material Copper
Stud Size 0.5 in
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size 4 AWG
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181050146
Length 4.45 Inch
Hole Size 14 mm
Conductor Size 4 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Gray
Width 0.83 in
Height 0.34 Inch
Country of Origin USA
Overall Length 4.45 in
