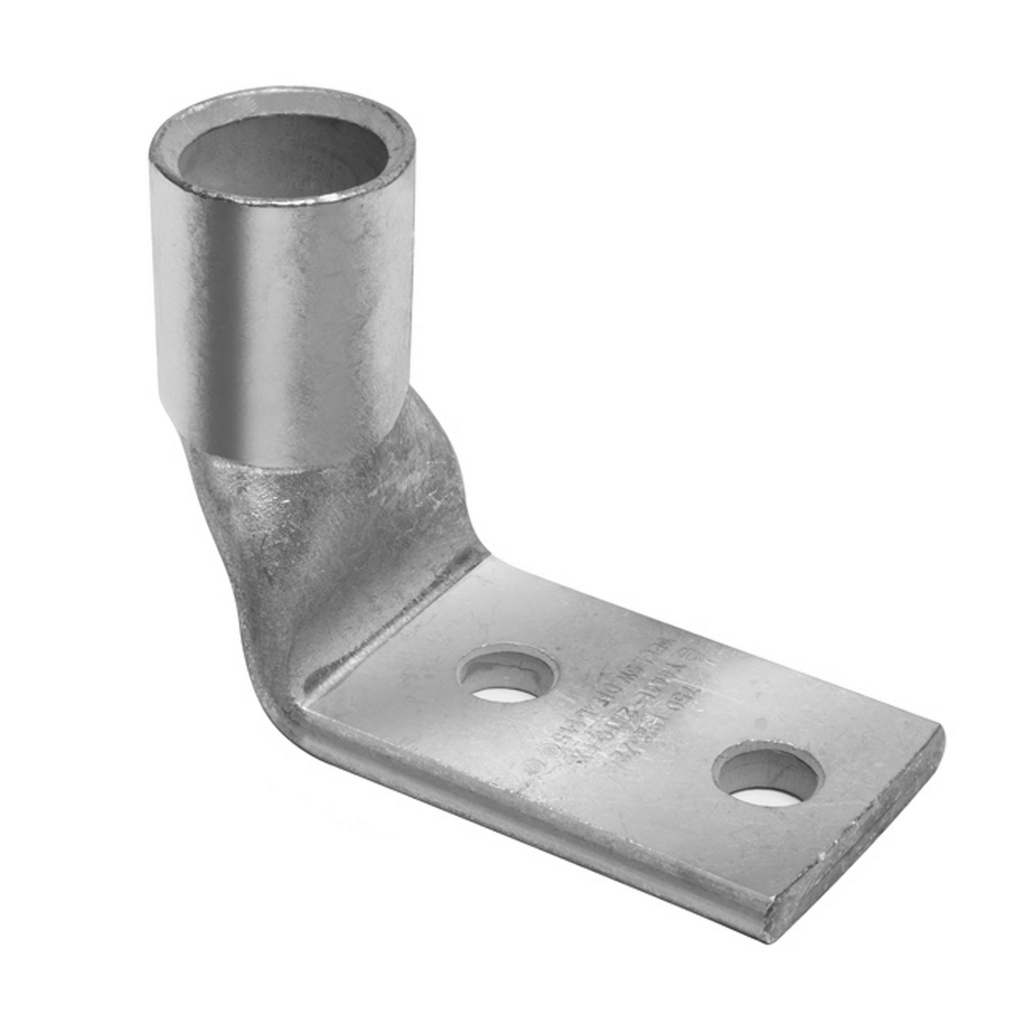

BUR YA4CL2TC1490 CULUG-4STR-1/4X5/8
$19.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA4CL2TC1490
North Coast Part # 676452

Specifications

General

  • Application: For Code Conductor
  • Color Code: Gray
  • Connector Type: Terminal
  • Die Index: 8 ; 346
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin Plating
  • Sub Brand: TERMINALS, HYLUG
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810109939
  • UPC 12 Digit: 7818101099399

Dimensions

  • Dimension - B Length fraction: 13/16 in
  • Dimension - B Length inch: 0.81 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Height inch: 1.22 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 37 mm
  • Dimension - Length Overall inch: 1.47 in
  • Dimension - N inch: 0.25 in
  • Dimension - Outside Diameter inch: 0.34 in
  • Dimension - Pad Width inch: 0.5 in
  • Dimension - Strip Length inch: 7/8 in
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.68
  • Physical Attribute - Tongue Angle: 90 Degree

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size Range: N/A
  • Conductor - Copper Solid Size: #4 AWG
  • Conductor - Copper Str Navy Size: 40 (19) Navy
  • Conductor - Copper Str Navy Size Range: 40 (19) Navy
  • Conductor - Copper Str Size: #4 AWG
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181010993
GTiN 00781810109939
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size # 4 AWG
Family Brand Name Burndy
Sub Brand TERMINALS, HYLUG
Length 1.47 in
Hole Size 7 mm
Conductor Size 4 AWG
Height 1.22 in
Connection Type Terminal
Plating Type Tin Plating
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Gray
