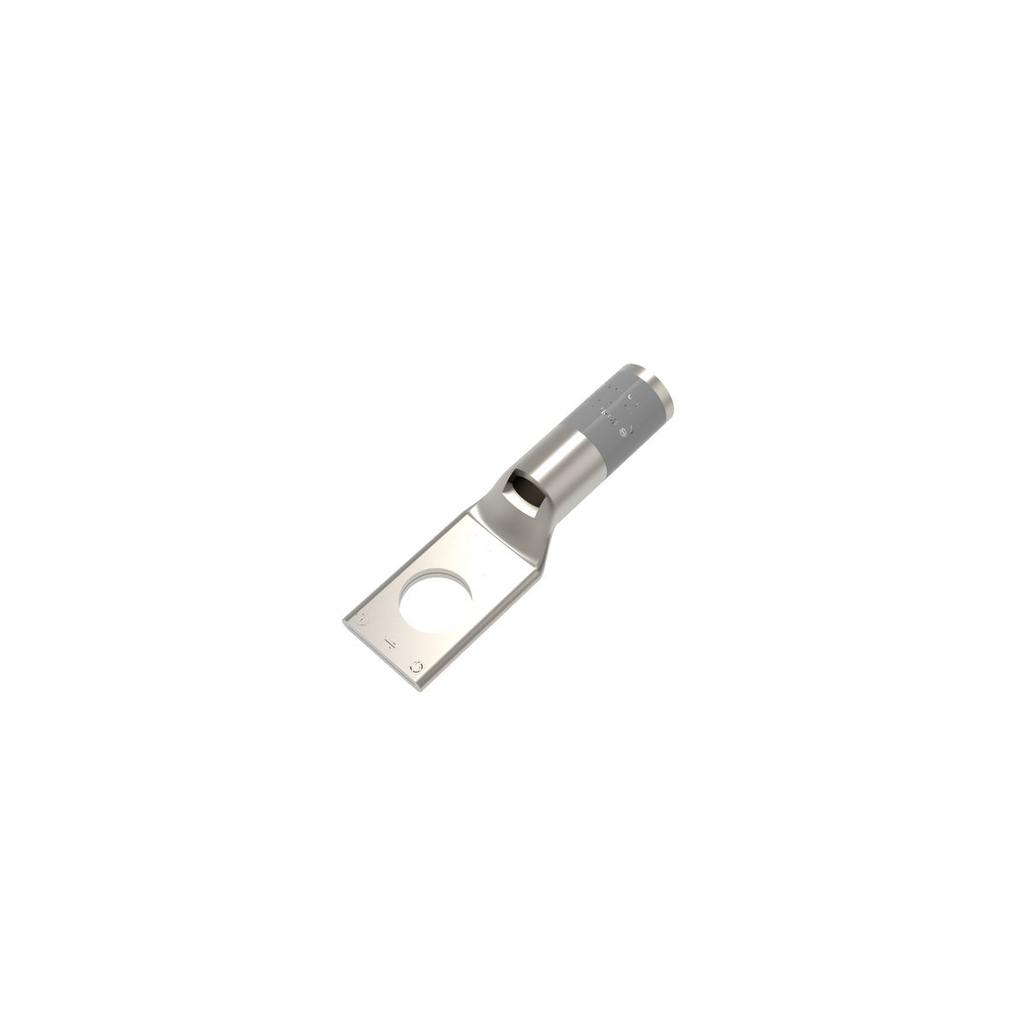

BUR YA4CLBOX 4 STR CU 1-HOLE SHORT
Product image thumbnail 0
Product image thumbnail 1
$5.06/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA4CLBOX
North Coast Part # 71058

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Package: Box, Tongue Angle: Straight, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Die Index: 8, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2)

Specifications

  • Buy American Compliant: Yes
  • ChannelSightWidgetId: 705
  • Conductor - Copper Str Navy Size: 40 (19) Navy
  • Conductor - Copper Str Navy Size Range: 40 (19) Navy-50 (19) Navy
  • Conductor - Copper Str Size: 4 AWG
  • Conductor - Copper Str Size Range: 4 AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 13/16 in
  • Dimension - B Length inch: 0.81 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - D inch: 0.64 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 44 mm
  • Dimension - Length Overall inch: 1.74 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.34 in
  • Dimension - Pad Width inch: 0.50 in
  • Dimension - Strip Length inch: 7/8
  • Dimension - Stud Size fraction: 1/4
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.33 in
  • Each - Height: 0.34 in
  • Each - Length: 1.74 in
  • Each - Width: 0.5 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin Plating
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: Wire Termination
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Package: Box, Tongue Angle: Straight, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Die Index: 8, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2)
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Standard Barrel, Tin Plated
  • Voltage Rating: 35 kV
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YA4CLBOX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YA4CLBOX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/YA4CLBOX_MODEL-STEP.zip
  • UL Listed: Yes
  • Voltage - Maximum: 35000
  • Color Code: Gray
  • Connector Type: Terminal
  • Die Index: 8346
  • Finish Type: Tin-Plated
  • Material: Copper

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810552254
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.25 in
Number of Holes 1 Hole
Applications For Code Conductor
Cable Size 4 AWG
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181055225
Length 1.74 Inch
Hole Size 7 mm
Conductor Size 4 AWG
Connection Type Terminal
Plating Type Tin Plating
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Gray
Width 0.5 in
Height 0.34 Inch
Country of Origin USA
Overall Length 1.74 in
