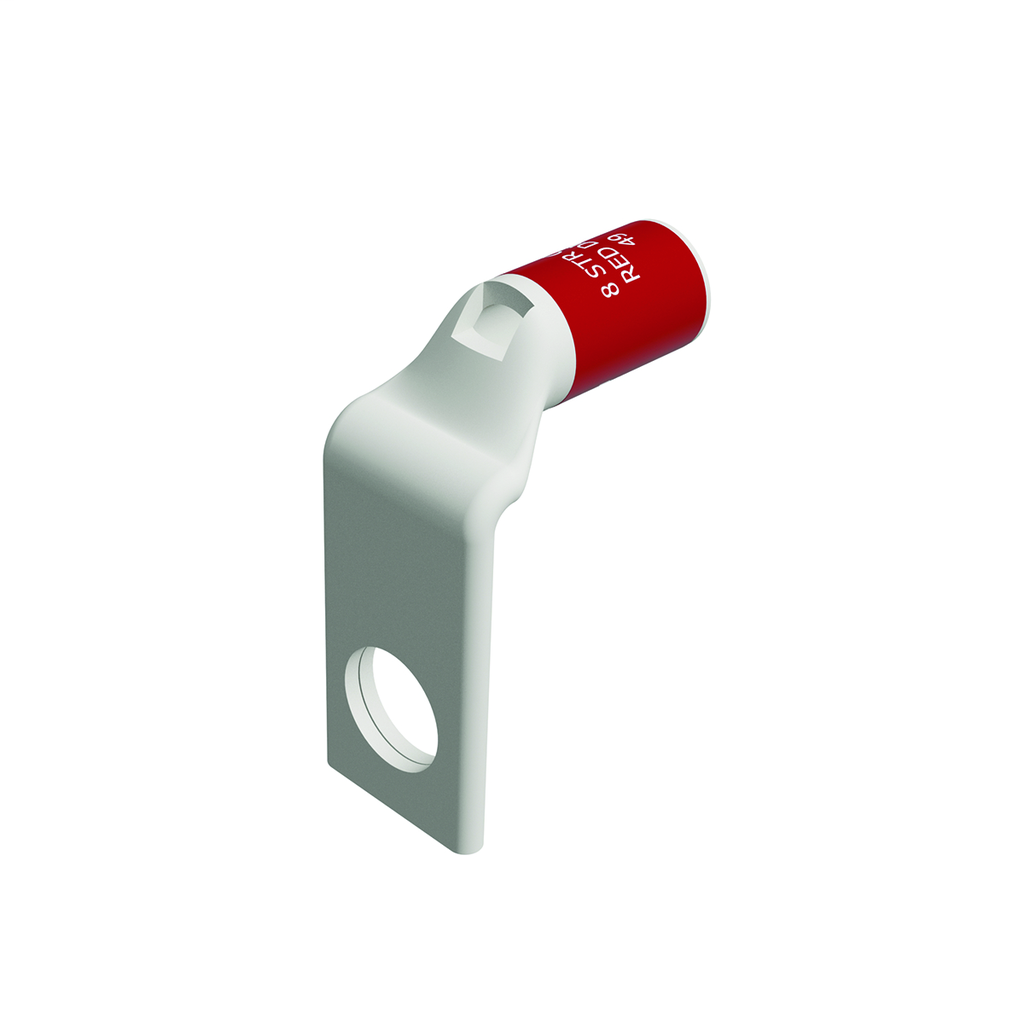

BUR YA8CL190 8 STRCU-90DEG USES BLA

Specifications

General

• Application: For Use On: UL Listed 90 DEG C, 600 Volts to 35kV, For Code Conductor
• Color Code: Red
• Connector Type: Terminal
• Die Index: 49
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Standard
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: STANDARD BARREL
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• UPC: 781810019207

Dimensions

• Dimension - B Length fraction: 7/16 in
• Dimension - B Length inch: 0.44 in
• Dimension - Bolt Hole Size inch: 0.27 in
• Dimension - D inch: 0.58 in
• Dimension - Hole Size mm: 7 mm
• Dimension - L Length Overall mm: 20 mm
• Dimension - Length Overall inch: 0.80 in
• Dimension - N inch: 0.25 in
• Dimension - Outside Diameter inch: 0.27 in
• Dimension - Pad Width inch: 0.44 in
• Dimension - Strip Length inch: 7/16
• Dimension - Stud Size inch: 1/4
• Dimension - Z inch: 0.33 in
• Physical Attribute - Tongue Angle: 90 Degree

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper DLO Size Range: N/A
• Conductor - Copper Solid Size: 6 AWG
• Conductor - Copper Solid Size Range: 6 AWG
• Conductor - Copper Str Navy Size: 23 (7) Navy
• Conductor - Copper Str Navy Size Range: 23 (7) Navy
• Conductor - Copper Str Size: 8 AWG
• Conductor - Copper Str Size Range: 8 AWG
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL467
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1
