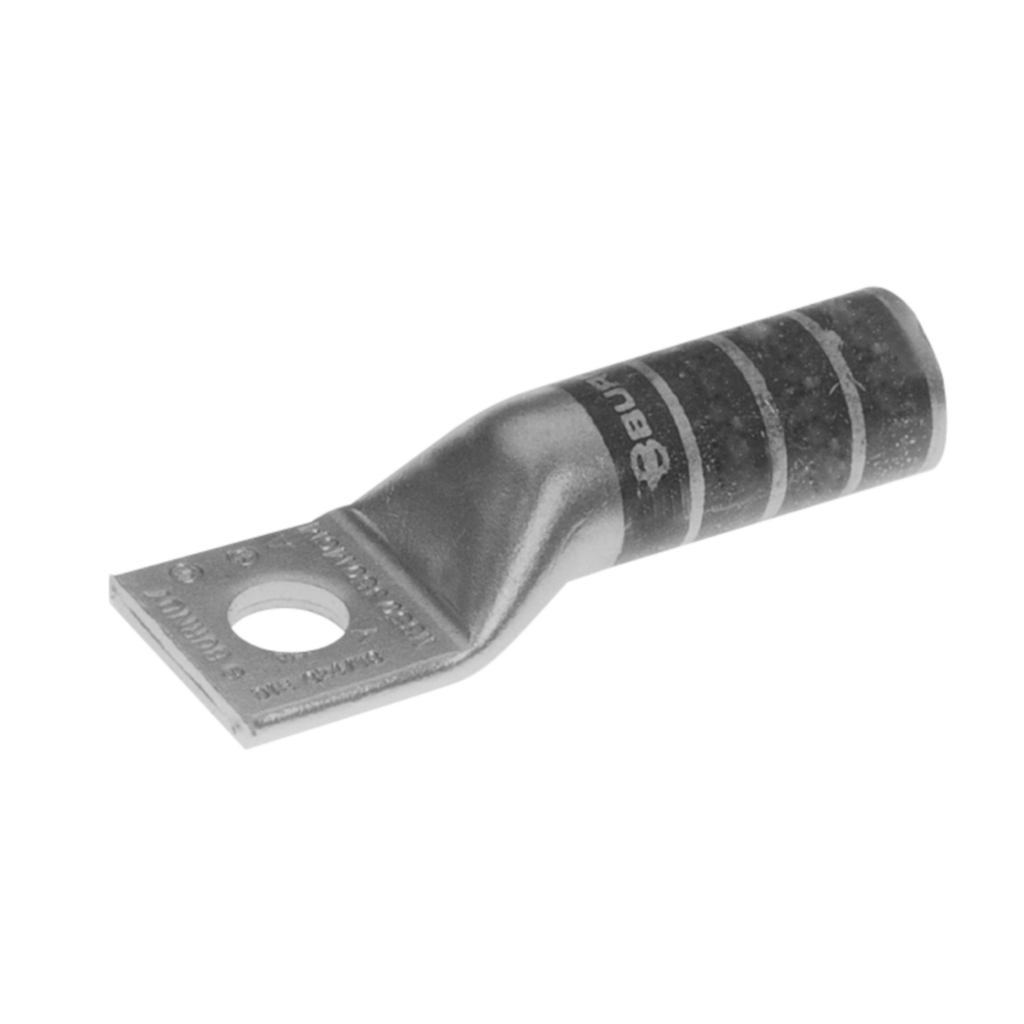

Burndy YAAKIT1 6 AWG to 300 MCM Electrotinned Aluminum 1-Hole Transformer Lug Kit
$186.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAAKIT1
North Coast Part # 17457

Specifications

General

  • Connector Type: Terminal
  • Feature - Barrel Type: Standard
  • Item Type: 4D
  • Material: Aluminum
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Temperature Rating: 194
  • UPC: 781810033470
  • UPC 12 Digit: 7818100334700

Dimensions

  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil
  • Conductor - AL Str Size Range: 6 AWG-300 kcmil
  • Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
  • Conductor - Copper Str Size Range: 6 AWG-300 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Package Contents: (8) YA2C-A5, (4) YA30-A7;(8) 1/4-20 x 3/4 in Bolts;(8) 1/4-20 in HN Nut;Captive to Nut

Overview

UPC 78181003347
GTiN 00781810033470
Family Brand Name Hubbell
Material Aluminum
Conductor Size 1 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
Max Voltage 35000 V
