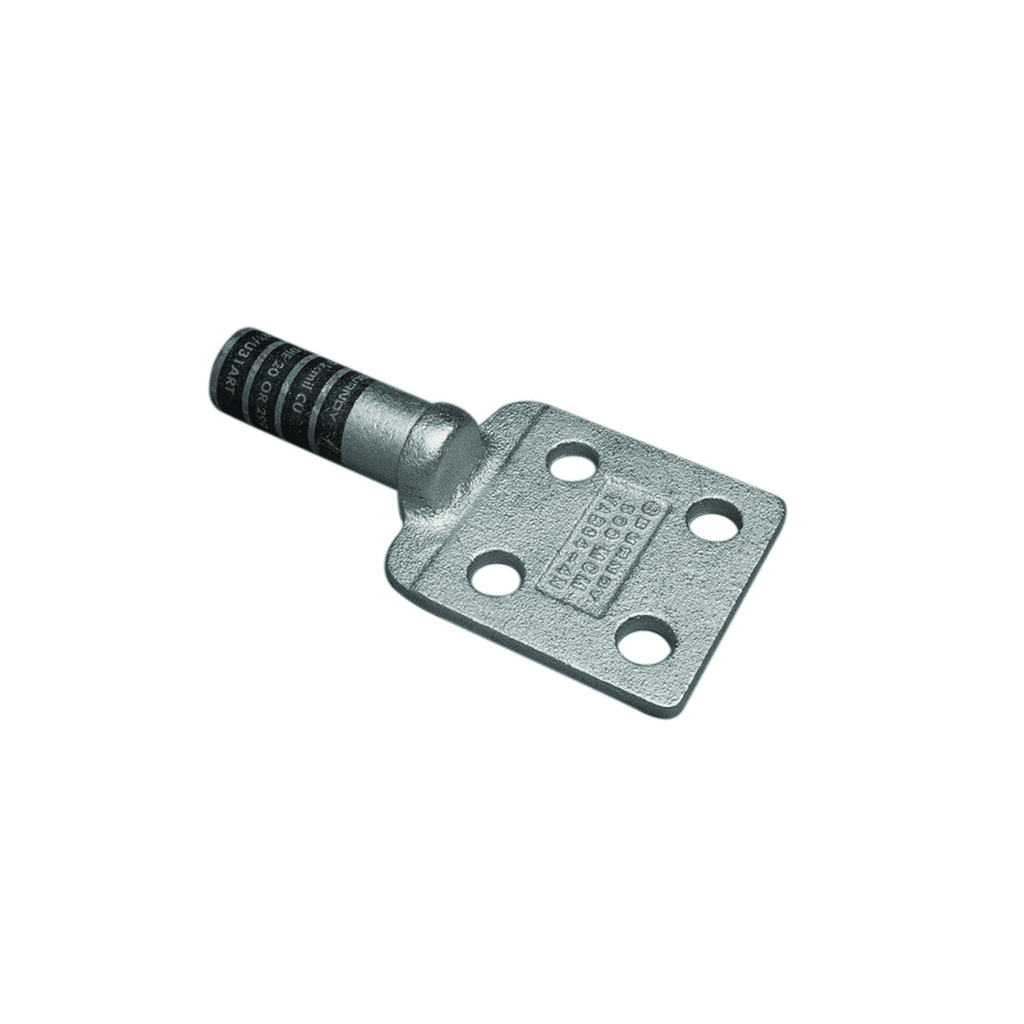

BUR YAB344N 500 CU 4-HOLE LONG 1/2
$322.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAB344N
North Coast Part # 821729

Specifications

General

  • Application: For compression connection
  • Color Code: Brown
  • Connector Type: Terminal
  • Die Index: 20
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Material: Copper
  • Physical Attribute - Number of Holes: 4
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: HYLUG
  • Temperature Rating: 194
  • Trade Name: HYLUG™
  • Type: YA
  • UPC: 781810506899
  • UPC 12 Digit: 7818105068999

Dimensions

  • Dimension - B Length inch: 2.25 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - D inch: 3.00 in
  • Dimension - F Width Center to Center inch: 1.75 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 161 mm
  • Dimension - Length Overall inch: 6.33 in
  • Dimension - N inch: 0.62 in
  • Dimension - Outside Diameter inch: 1.06 in
  • Dimension - Pad Width inch: 3.00 in
  • Dimension - Strip Length inch: 2-5/16
  • Dimension - Stud Size inch: 1/2
  • Dimension - Z inch: 0.63 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper Solid Size: 500
  • Conductor - Copper Solid Size Range: 500
  • Conductor - Copper Str Size: 500
  • Conductor - Copper Str Size Range: 500
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: EX
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181050689
GTiN 00781810506899
Finish Tin Plated
Color Brown
Type YA
Applications For compression connection
Temperature Rating 194
Family Brand Name Burndy
Sub Brand HYLUG
Length 6.33 in
Hole Size 14 mm
Material Copper
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
