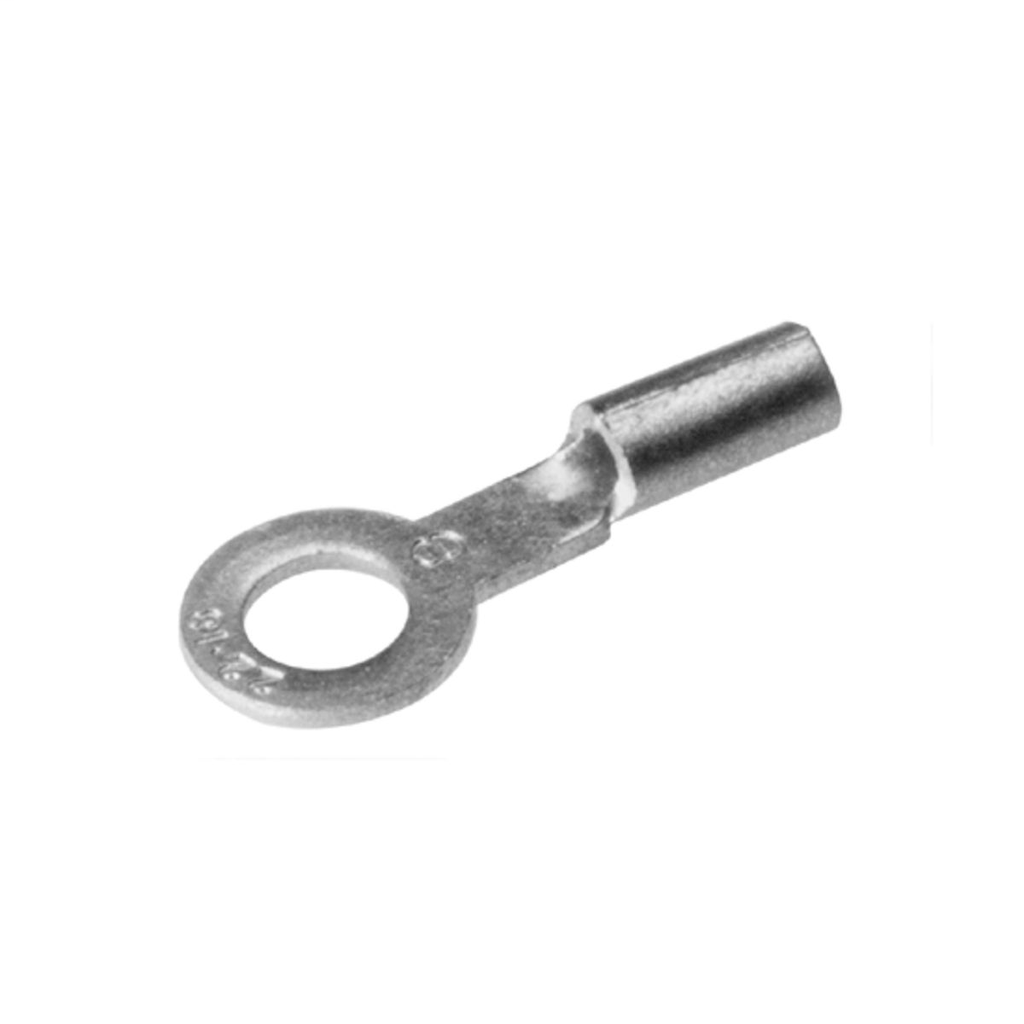

BUR YAD1414 20-14 BARE RING 1/4 STU
Product image thumbnail 0
Product image thumbnail 1
$39.94/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAD1414
North Coast Part # 1337923

Features

Features: Constructed Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Long Brazed Seam Barrel And Deep V Groove Inner Serrations: Provides Optimum Conductivity Reliability And Holding Power After Crimping, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Wire Range Is Clearly Marked On Terminal: Provides Easy Identification, Inspection Hole: Provides An Easy Visual Check Of Wire Insertion, Long Neck Terminal: Permits Easy Bending And Stacking Of Several Terminals On A Common Stud, Wire Strip Length: 9/32 IN, Finish: Electro-Tin Plated, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98 Tool, Package: Bulk

Specifications

General

  • Application: For control wiring and other standard duty applications
  • Connector Type: Terminal
  • Feature - Barrel Type: Long
  • Item Type: 3B
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: HYLUG
  • Trade Name: HYLUG™
  • Type: Ring Tongue
  • UPC: 781810806142
  • UPC 12 Digit: 7818108061422

Dimensions

  • Dimension - Hole Size fraction: 10/37
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - L Length Overall mm: 24 mm
  • Dimension - Length Overall inch: 0.96 in
  • Dimension - Pad Width inch: 0.45 in
  • Dimension - Strip Length inch: 9/32 in
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.44 in

Electrical Ratings

  • Voltage - Maximum: 600 V

Conductor Related

  • Conductor - Copper Str Size Range: 20 AWG-14 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181080614
GTiN 00781810806142
Type Ring Tongue
Material Copper
Stud Size 0.25 in
Applications For control wiring and other standard duty applications
Cable Size 20 - 14 AWG
Family Brand Name ZZ- Obsolete - Burndy / FCI
Sub Brand HYLUG
Length 0.96 in
Connection Type Terminal
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 600 V
