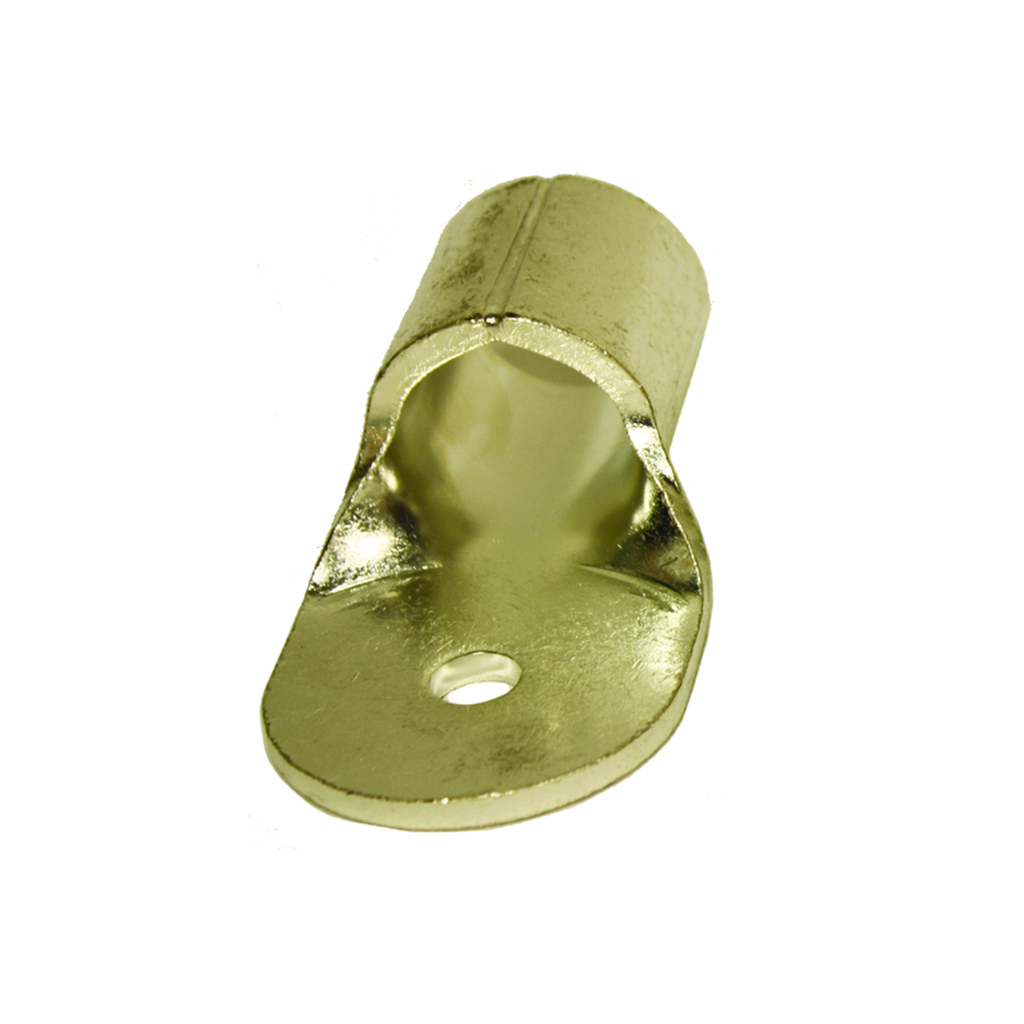

BUR YAD25M12E12 1/0 STR FLEX 1/2 ST
Product image thumbnail 0
Product image thumbnail 1
$5.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAD25M12E12
North Coast Part # 1428996

Features

Features:Terminals utilize a brazed seam, Provide execellent high conductivity connections, Electro-tin plated for durable long lasting corrosion resistance, Vibration resistance and tensile strength is well within the limits of commercial specificatoins

Specifications

  • Application: The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
  • Connector Type: Terminal
  • Feature - Barrel Type: Long
  • Item Type: 3B
  • Material: Copper
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: TERMINALS, HYLUG
  • Trade Name: HYLUG™
  • Type: Ring Tongue
  • UPC: 781810549384
  • UPC 12 Digit: 7818105493844
  • Dimension - B Length inch: 0.63 in
  • Dimension - Hole Size inch: 0.51 in
  • Dimension - L Length Overall mm: 47 mm
  • Dimension - Length Overall inch: 1.86 in
  • Dimension - Outside Diameter inch: 0.57 in
  • Dimension - Pad Width inch: 0.87 in
  • Dimension - Strip Length inch: 3/4
  • Dimension - Stud Size inch: 1/2
  • Voltage - Maximum: 600 V
  • Conductor - Copper Str Size: 1/0 AWG

Conductor Type

  • CU C Str-Size
  • CU C Flex-Size
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Overview

UPC 78181054938
GTiN 00781810549384
Type Ring Tongue
Material Copper
Stud Size 0.5 in
Applications The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Cable Size 1/0 AWG
Family Brand Name Burndy
Sub Brand TERMINALS, HYLUG
Length 1.86 in
Conductor Size 1/0 AWG
Connection Type Terminal
Plating Type Tin
Plated? Yes
CSA No
Max Voltage 600 V
