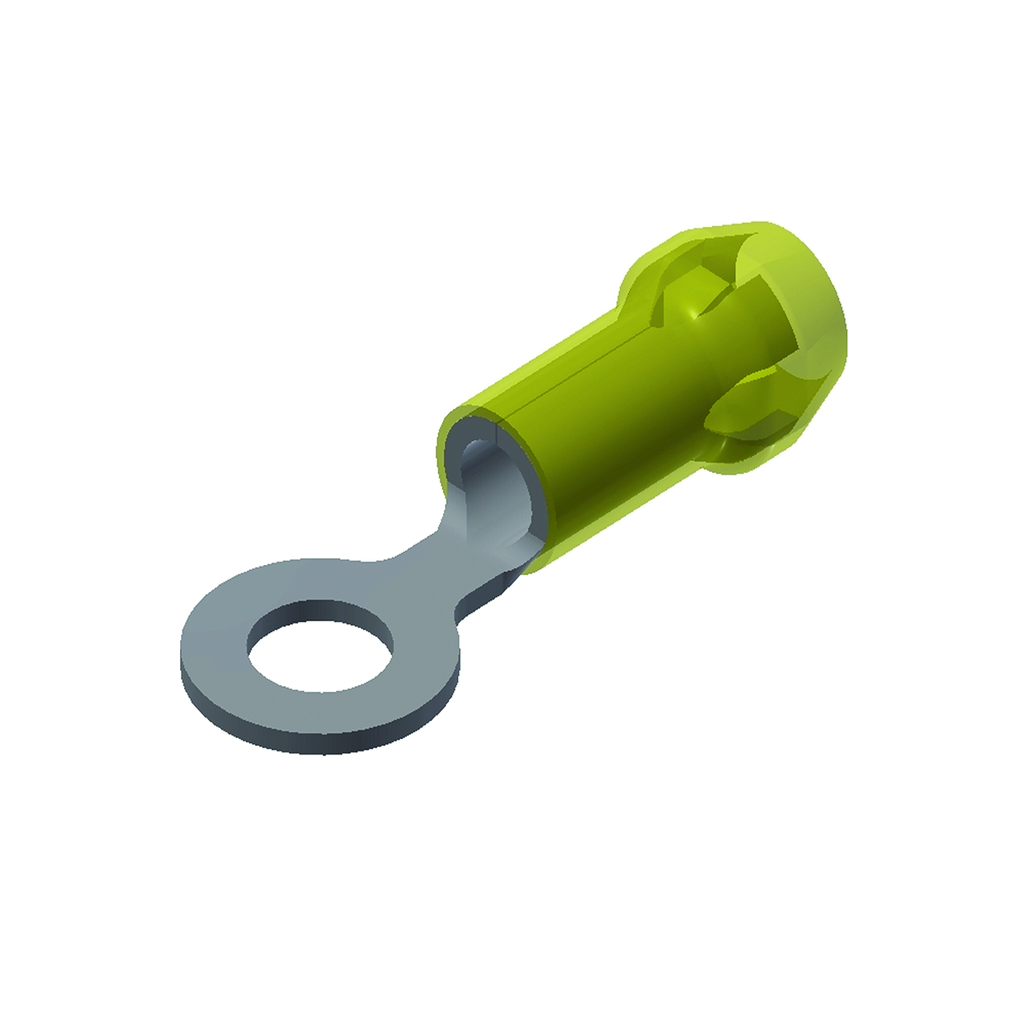

BUR YAE10N 12-10 NYLON RING 8-10 ST
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$95.96/c (100 ea)
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAE10N
North Coast Part # 63744

Features

  • INSULUG Type YAE-N Nylon Insulated Terminals Are Designed With A Multi finger Insulation Grip For Paper, EPR And Other Elastic Or Hard To Grip Insulations, The Metal Fingers Firmly Grip The Insulation Providing Superior Holding Characteristics, Cable Support And Strain Relief, Type YAE-N Terminals Are Rated 105 DEG C And Meet Military Standard AS25036 Class 2 And SAE-AS7928 Requirements, Multi-Finger Insulation Grip: Provides Superior Insulation Holding Characteristics, Especially On EPR And Other Elastic-Type Insulations, Brazed Seam: Provides Stronger More Durable Termination, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove, Inner Barrel Serrations: Provide Optimum Conductivity, Reliability, And Holding Power, Smooth Funnel Entry: Easy Wire Insertion, 300 V Maximum, Tape Mounted Catalog Number: YAE10NM, Installation Tool: MR8-33T-1 Tool (No Extra Dies Required), M8ND Tool With One Of Following Dies: N10ET-9, N10HET-15, N10ET-23, Y10D, Y10-22 Tool, Insulation Diameter (maximum): 0.209 IN, Temperature Rating: 105 DEG C Maximum, Sae-as25036: -112, Package: Bulk, Color Code: Yellow, Wire Strip Length: 3/8 IN, Wire Insulation Grip: Yes, Finish: Electro-Tin Plated

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Size Range: 12 AWG - 10 AWG
  • Country of Origin: US
  • Dimension - Hole Size fraction: 1/5
  • Dimension - Hole Size inch: 0.20 in
  • Dimension - L Length Overall mm: 29 mm
  • Dimension - Length Overall inch: 1.15 in
  • Dimension - N inch: 0.19 in
  • Dimension - Pad Width inch: 0.38 in
  • Dimension - Strip Length inch: 3/8
  • Dimension - Stud Size inch: #8 - #10
  • Dimension - Z inch: 0.28 in
  • Each - Height: 0.55 in
  • Each - Length: 1.15 in
  • Each - Width: 0.38 in
  • Feature - Barrel Style: Shrouded
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL486;Military Specified (Mil-Spec)
  • Insulation Type: Nylon
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486; Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: For use on copper compression connections
  • Insulation: Y
  • Special Features: Features: INSULUG Type YAE-N Nylon Insulated Terminals Are Designed With A Multi finger Insulation Grip For Paper, EPR And Other Elastic Or Hard To Grip Insulations, The Metal Fingers Firmly Grip The Insulation Providing Superior Holding Characteristics, Cable Support And Strain Relief, Type YAE-N Terminals Are Rated 105 DEG C And Meet Military Standard AS25036 Class 2 And SAE-AS7928 Requirements, Multi-Finger Insulation Grip: Provides Superior Insulation Holding Characteristics, Especially On EPR And Other Elastic-Type Insulations, Brazed Seam: Provides Stronger More Durable Termination, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove, Inner Barrel Serrations: Provide Optimum Conductivity, Reliability, And Holding Power, Smooth Funnel Entry: Easy Wire Insertion, 300 V Maximum, Tape Mounted Catalog Number: YAE10NM, Installation Tool: MR8-33T-1 Tool (No Extra Dies Required), M8ND Tool With One Of Following Dies: N10ET-9, N10HET-15, N10ET-23, Y10D, Y10-22 Tool, Insulation Diameter (maximum): 0.209 IN, Temperature Rating: 105 DEG C Maximum, Sae-as25036: -112, Package: Bulk, Color Code: Yellow, Wire Strip Length: 3/8 IN, Wire Insulation Grip: Yes, Finish: Electro-Tin Plated
  • Standard: UL486; Military Specified (Mil-Spec)
  • Sub Brand: INSULUG
  • Type: YAE-N

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181080471
Item Long Description Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 12-10 AWG, #4-#6 Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.
GTiN 00781810804711
Type YAE-N
Material Copper
Stud Size 0.164-0.19 in
Applications For use on copper compression connections
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 1.15 in
Insulation Type Nylon
Connection Type Terminal
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Yellow
