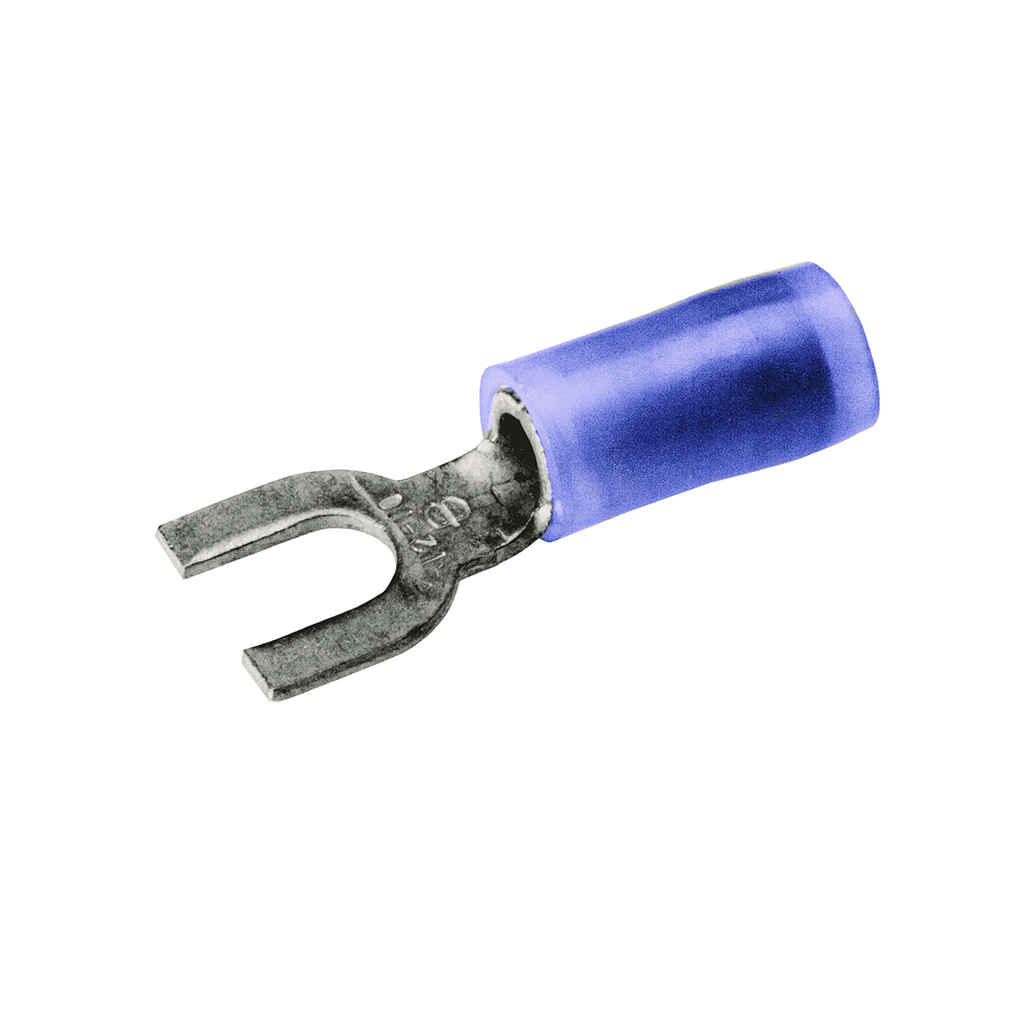

BUR YAES14N53F 16-14 NYLON FORK 6-8
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$83.10/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAES14N53F
North Coast Part # 11548

Features

  • Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, 300 V Maximum, 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Temperature Rating: 105 DEG C Maximum, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83, MR18 Tool, Package: Bulk, Wire Strip Length: 7/32 IN, Color Code: Blue, Finish: Tin Plated, Wire Insulation Grip: No

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 16 AWG;15 AWG;14 AWG
  • Conductor - Copper Solid Size Range: 16 AWG-14 AWG
  • Conductor - Copper Str Size: 16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 16 AWG-14 AWG
  • Country of Origin: US
  • Dimension - Hole Size fraction: 8/47
  • Dimension - Hole Size inch: 0.17 in
  • Dimension - Length Overall inch: 0.84 in
  • Dimension - N inch: 0.17 in
  • Dimension - Pad Width inch: 0.31 in
  • Dimension - Strip Length inch: 7/32 in
  • Dimension - Stud Size inch: #6;#8
  • Dimension - Z inch: 0.26 in
  • Each - Height: 0.27 in
  • Each - Length: 0.84 in
  • Each - Width: 0.32 in
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL486;Military Specified (Mil-Spec)
  • Insulation Type: Nylon
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Fork
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Standards - Industry Standards Met: UL486; Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: Power Connector
  • Insulation: Y
  • Special Features: Features: Fork Tongue: Provides Faster And Easier Installation By Permitting Insertion Under The Screw Head Without Completely Removing It, 300 V Maximum, 105 DEG C Maximum, Insulation Diameter (maximum): 0.153 IN, Temperature Rating: 105 DEG C Maximum, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: MR8-83, MR18 Tool, Package: Bulk, Wire Strip Length: 7/32 IN, Color Code: Blue, Finish: Tin Plated, Wire Insulation Grip: No
  • Standard: UL486; Military Specified (Mil-Spec)
  • Sub Brand: INSULUG
  • Type: YAES-F

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810804810
Type YAES-F
Stud Size 0.138-0.164 in
Applications Power Connector
Cable Size 16 - 14 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Product UPC 78181080481
Length 0.84 Inch
Insulation Type Nylon
Material Copper
Conductor Size 14 AWG
Connection Type Terminal
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Blue
Width 0.32 in
Height 0.27 Inch
Country of Origin USA
Overall Length 0.84 in
