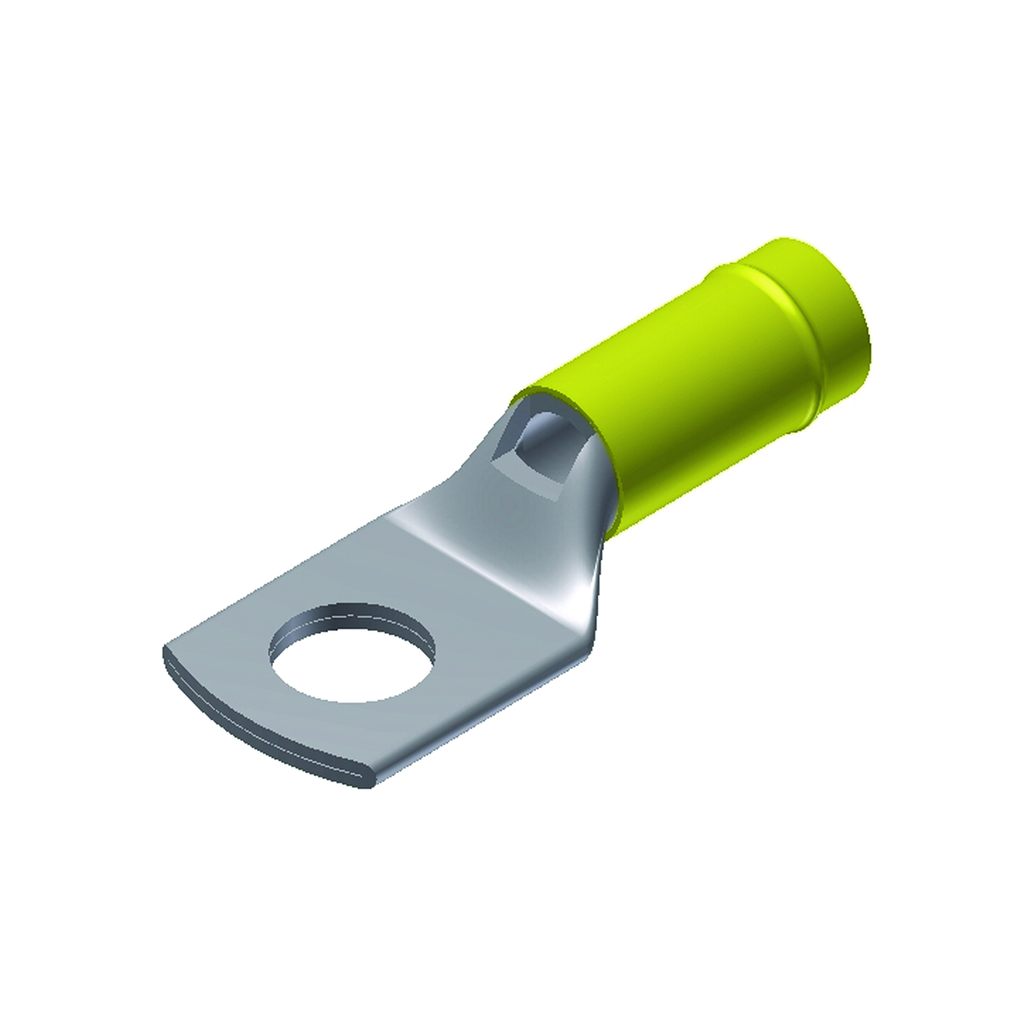

BUR YAEV10BOX 12-10 NYL. HVY DTY RI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.35/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAEV10BOX
North Coast Part # 152458

Features

  • The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, #10 wire only, Wire Shroud: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Insulation Diameter (maximum): 0.209 IN, Package: Box, Installation Tool: Ratchet: MR8D94, MR8-33-T1, M8ND Tool With N10ET-23 Die, MR4 10M, MR18 Tool, Conductor Type: Commercial/Military Stranded Copper, Color Code: Yellow, Wire Strip Length: 5/16 IN, Tongue Angle: Straight

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Aircraft Size Range: AN 12-AN 10
  • Conductor - Copper Str Size: 12 AWG;10 AWG
  • Conductor - Copper Str Size Range: 12 AWG-10 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 3/10 in
  • Dimension - B Length inch: 0.30 in
  • Dimension - Hole Size fraction: 1/5
  • Dimension - Hole Size inch: 0.20 in
  • Dimension - L Length Overall mm: 29 mm
  • Dimension - Length Overall inch: 1.16 in
  • Dimension - N inch: 0.19 in
  • Dimension - Outside Diameter inch: 0.30 in
  • Dimension - P inch: 0.09 in
  • Dimension - Pad Width inch: 0.37 in
  • Dimension - Strip Length inch: 5/16
  • Dimension - Stud Size inch: #8;#10
  • Dimension - Z inch: 0.26 in
  • Each - Height: 0.30 in
  • Each - Length: 1.16 in
  • Each - Width: 0.38 in
  • Industry Standard(s): UL486;Military Specified (Mil-Spec)
  • Insulation Type: Nylon
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486; Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
  • Insulation: Y
  • Special Features: Features: The INSULUG Type YAEV Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, #10 wire only, Wire Shroud: No, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated, Insulation Diameter (maximum): 0.209 IN, Package: Box, Installation Tool: Ratchet: MR8D94, MR8-33-T1, M8ND Tool With N10ET-23 Die, MR4 10M, MR18 Tool, Conductor Type: Commercial/Military Stranded Copper, Color Code: Yellow, Wire Strip Length: 5/16 IN, Tongue Angle: Straight
  • Standard: UL486; Military Specified (Mil-Spec)
  • Sub Brand: INSULUG
  • Type: YAEV, Heavy Duty

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181056525
Item Long Description Ring Tongue Copper Tubing Terminal, 1.14 in L, .37 in W, Tin Plated, 600 Volts Max., 105 Deg C Max.
GTiN 00781810565254
Type YAEV, Heavy Duty
Material Copper
Stud Size 0.164-0.19 in
Applications For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 1.16 in
Insulation Type Nylon
Conductor Size 10 AWG
Connection Type Terminal
Plating Type Tin
Temperature Rating 105 C
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Yellow
