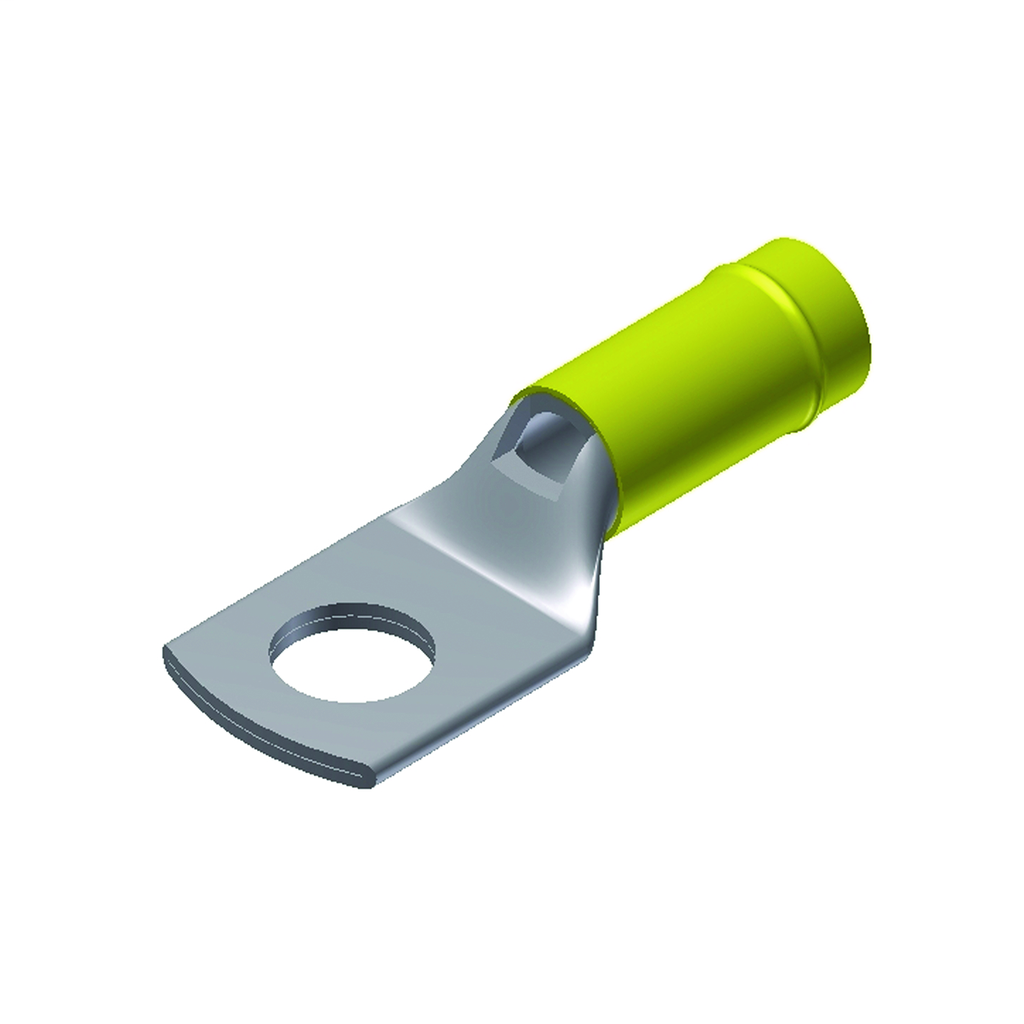

BUR YAEV10T3BOX 12-10 NYL. HVY DTY
Product image thumbnail 0
Product image thumbnail 1
$2.26/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAEV10T3BOX
North Coast Part # 273362

Specifications

General

  • Application: For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
  • Color Code: Yellow
  • Connector Type: Terminal
  • Insulation: Y
  • Insulation Type: Nylon
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: INSULUG
  • Temperature Rating: 105°C
  • Trade Name: INSULUG™
  • Type: YAEV, Heavy Duty
  • UPC: 781810023310
  • UPC 12 Digit: 7818100233100

Dimensions

  • Dimension - B Length fraction: 3/10 in
  • Dimension - B Length inch: 0.30 in
  • Dimension - Hole Size fraction: 10/37
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - L Length Overall mm: 33 mm
  • Dimension - Length Overall inch: 1.30 in
  • Dimension - N inch: 0.23 in
  • Dimension - Outside Diameter inch: 0.29 in
  • Dimension - P inch: 0.09 in
  • Dimension - Pad Width inch: 0.47 in
  • Dimension - Strip Length inch: 5/16
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.38 in

Electrical Ratings

  • Voltage - Maximum: 600 V

Conductor Related

  • Conductor - Copper Str Aircraft Size: AN 12;AN 10
  • Conductor - Copper Str Aircraft Size Range: AN 12-AN 10
  • Conductor - Copper Str Size: 12 AWG;10 AWG
  • Conductor - Copper Str Size Range: 12 AWG-10 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 50

Conductor Type

  • CU C Str Aircraft-Size
  • CU C Str-Size

Industry Standard(s)

  • UL486
  • Military Specified (Mil-Spec)

Standards - Industry Standards Met

  • UL486
  • Military Specified (Mil-Spec)

Overview

UPC 78181002331
GTiN 00781810023310
Type YAEV, Heavy Duty
Material Copper
Stud Size 0.25 in
Applications For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand INSULUG
Length 1.30 in
Insulation Type Nylon
Conductor Size 10 AWG
Connection Type Terminal
Plating Type Tin
Temperature Rating 105 C
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Yellow
