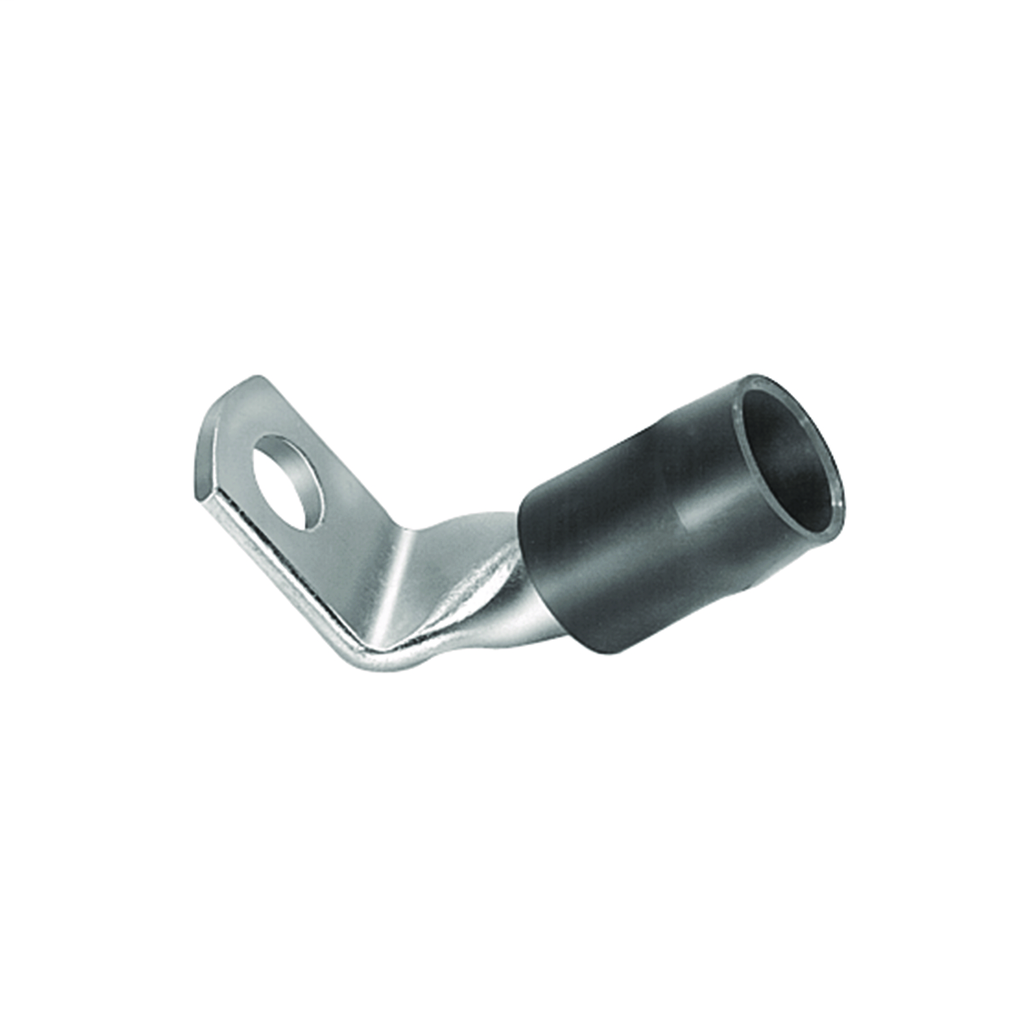

BUR YAEV14R 8-14 RIGHT ANGLE, 12-14
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAEV14R
North Coast Part # 934663

Features

  • Copper terminal Insulug, 14-16 AWG, 8-10, .40 IN L, 0.33 IN W, Tin Plated, 600 Volts Max.

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 18 AWG;17 AWG;16 AWG;15 AWG;14 AWG
  • Conductor - Copper Solid Size Range: 18 AWG-14 AWG
  • Conductor - Copper Str Size: 18 AWG;16 AWG;14 AWG
  • Conductor - Copper Str Size Range: 18 AWG - 14 AWG
  • Country of Origin: US
  • Dimension - Hole Size inch: 0.20 in
  • Dimension - N inch: 0.17 in
  • Dimension - Pad Width inch: 0.33 in
  • Dimension - Stud Size inch: 8-10 in
  • Each - Height: 0.40 in
  • Each - Length: 0.73 in
  • Each - Width: 0.33 in
  • Feature - Barrel Style: Belled
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL486;Military Specified (Mil-Spec)
  • Insulation Type: Nylon
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: 90 Degree
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486; Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • Trade Name: INSULUG™
  • Application: For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
  • Insulation: Y
  • Special Features: Features: Copper terminal Insulug, 14-16 AWG, 8-10, .40 IN L, 0.33 IN W, Tin Plated, 600 Volts Max.
  • Standard: UL486; Military Specified (Mil-Spec)
  • Sub Brand: TERMINALS, INSULUG
  • Type: Terminal

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181008223
Item Long Description INSULUG Nylon Insulated Ring Terminal, Right Angle; Accommodates: #14 - #16 AWG; Stud: #8 - #10; Length: .40"; Width: .33".
GTiN 00781810082232
Color Blue
Type Terminal
Material Copper
Applications For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Family Brand Name Burndy
Sub Brand TERMINALS, INSULUG
Finish Tin Plated Copper
Insulation Type Nylon
Conductor Size 14 AWG
Connection Type Terminal
Plating Type Tin
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Blue
