BUR YAEV6CL CULUG-500KCM-NEMA-NARTN
Product image thumbnail 0
Product image thumbnail 1
$1.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Order in multiples of 200 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAEV6CL
North Coast Part # 932876

Features

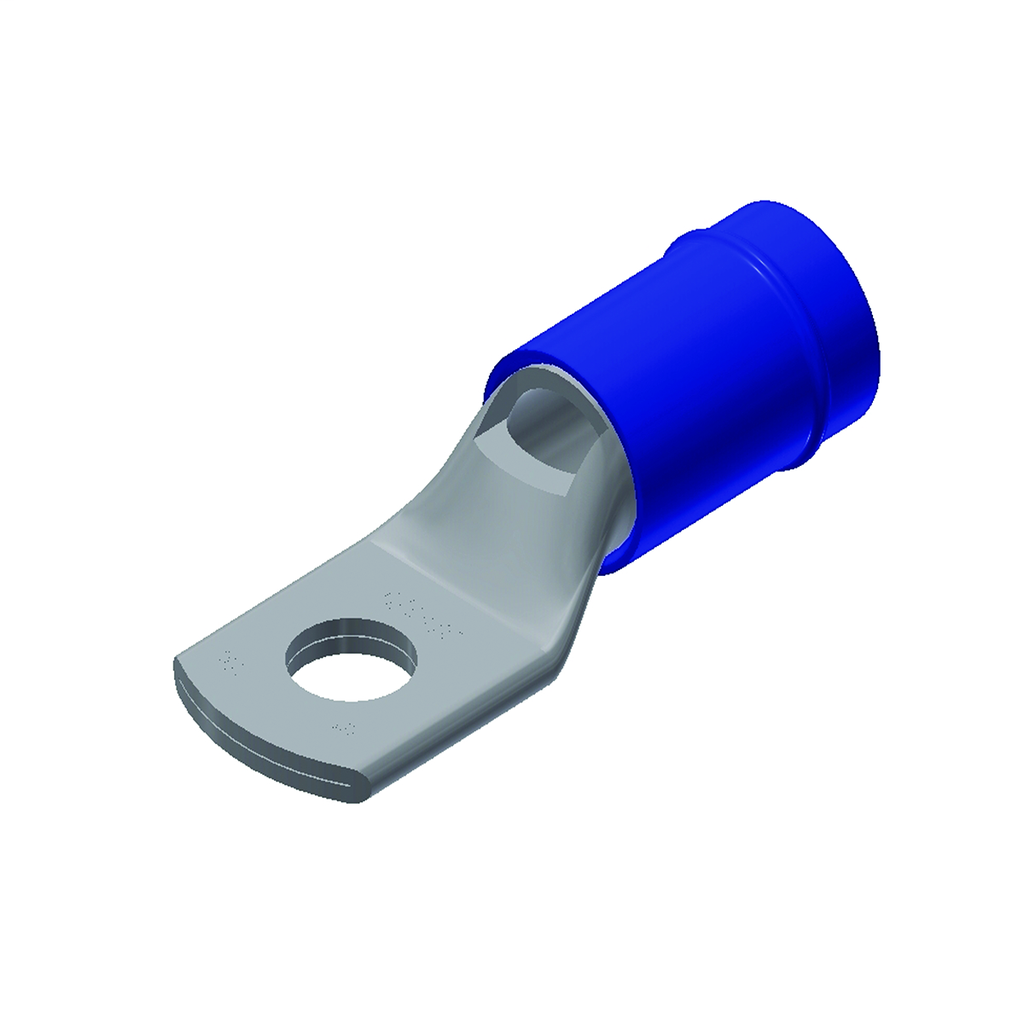

Features: The INSULUG Type YAEV-L Is Designed For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants, The Nylon Insulated Seamless, Electrolytic Copper Barrel With Double Thick Tongue Provides An Extra Strong Insulated Connection, The Terminal Is Rated 105 DEG C And Meets SAE-AS7928 Requirements, Double Thick Tongue: Provides Maximum Reliability And Electrical Capacity Plus An Extra Strong Terminal Tongue, Manufactured From One-Piece Pure Electrolytic Copper: Provides High Conductivity, Low Resistance With No Seams To Split Plus Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Long-Lasting Corrosion Resistance, Nylon Insulation Is Locked In Place: Insulation Will Not Move Or Twist Off, 300 Volt Nylon Insulation: High Dielectric Strength And Stability In Demanding Oily Environmental Conditions, Color Coded: Provides Quick, Easy Wire Size Connector Selection, Installation Tool: Non-Ratchet: MY28-6 Tool, Hydraulic: Y35, Y39 Tool With U6CET Die Set, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC Tool, DEV6L Die Nest, Y29PLE-1 Die Indentor, Finish: Electro-Tin Plated, Temperature Rating: 105 DEG C Maximum, Sae-as25036: -120, Insulation Diameter (maximum): 0.313 IN, Wire Shroud: No, Package: Bulk, Color Code: Blue, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 1/2 IN, Tongue Angle: Straight

Specifications

  • Application: For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
  • Color Code: Blue
  • Connector Type: Terminal
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Insulation: Y
  • Insulation Type: Nylon
  • Item Type: 3B
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: INSULUG
  • Trade Name: INSULUG™
  • Type: YAEV-L, Heavy Duty
  • UPC: 781810027707
  • UPC 12 Digit: 7818100277077
  • Dimension - B Length inch: 0.42 in
  • Dimension - Length Overall inch: 1.56 in
  • Dimension - N inch: 0.24 in
  • Dimension - P inch: 0.13 in
  • Dimension - Pad Width inch: 0.48 in
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.29 in
  • Voltage - Maximum: 600 V
  • Conductor - Copper Str Aircraft Size: AN 6
  • Conductor - Copper Str Aircraft Size Range: AN 6
  • Conductor - Copper Str Size: 6

Conductor Type

  • CU C Solid-Size
  • CU C Str-Size
  • Certification - CSA Approved: No

Industry Standard(s)

  • UL486
  • Military Specified (Mil-Spec)

Standards - Industry Standards Met

  • UL486
  • Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes
  • Pallet Quantity: 800

Overview

UPC 78181002770
GTiN 00781810027707
Type YAEV-L, Heavy Duty
Material Copper
Stud Size 0.25 in
Applications For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Cable Size 6 AWG Stranded
Family Brand Name Burndy
Sub Brand INSULUG
Length 1.56 in
Insulation Type Nylon
Connection Type Terminal
Plating Type Tin
Plated? Yes
CSA No
Max Voltage 600 V
Color Coding Blue
