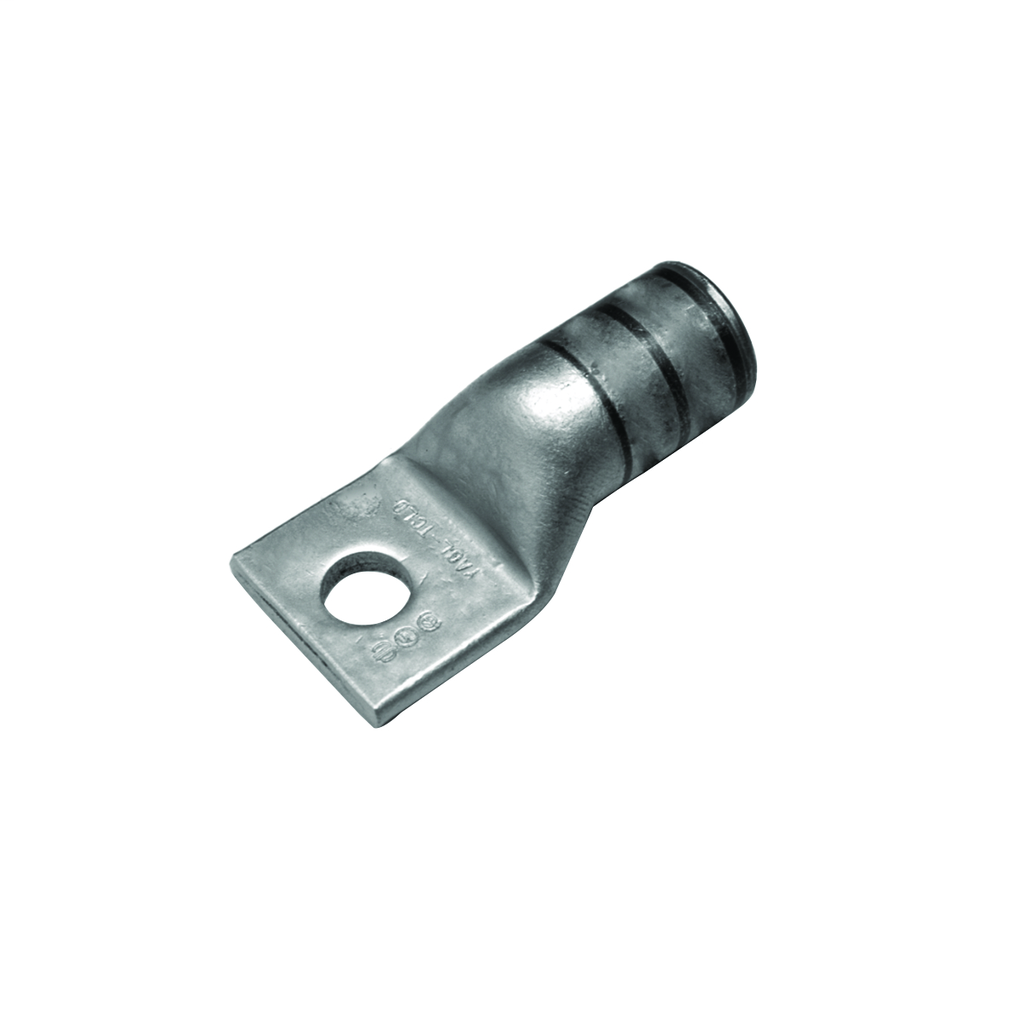

BUR YAG28LTC38FX 4/0FLX-3/8-TIN PLA
$22.59/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAG28LTC38FX
North Coast Part # 756755

Specifications

General

  • Application: For Flex Conductors
  • Color Code: Purple
  • Connector Type: Terminal
  • Die Index: 15
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: HYLUG
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810194355
  • UPC 12 Digit: 7818101943555

Dimensions

  • Dimension - B Length fraction: 1 in
  • Dimension - B Length inch: 1.03 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - Hole Size inch: 0.40 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 62 mm
  • Dimension - Length Overall inch: 2.45 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.77 in
  • Dimension - Pad Width inch: 1.14 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.42 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 4/0 (550/#24) DLO
  • Conductor - Copper Flex G Size: 4/0 AWG
  • Conductor - Copper Flex H Size: 4/0 AWG
  • Conductor - Copper Flex I Size: 4/0 AWG
  • Conductor - Copper Flex K Size: 4/0 AWG
  • Conductor - Copper Flex M Size: 4/0 AWG
  • Conductor - Copper Str Navy Size: 200 (61) Navy
  • Conductor - Copper Str Size: 4/0 AWG
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181019435
GTiN 00781810194355
Finish Tin Plated
Color Purple
Type Standard Barrel, Tin Plated
Material Copper
Applications For Flex Conductors
Family Brand Name Burndy
Sub Brand HYLUG
Length 2.45 in
Hole Size 10 mm
Conductor Size 4/0 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Purple
