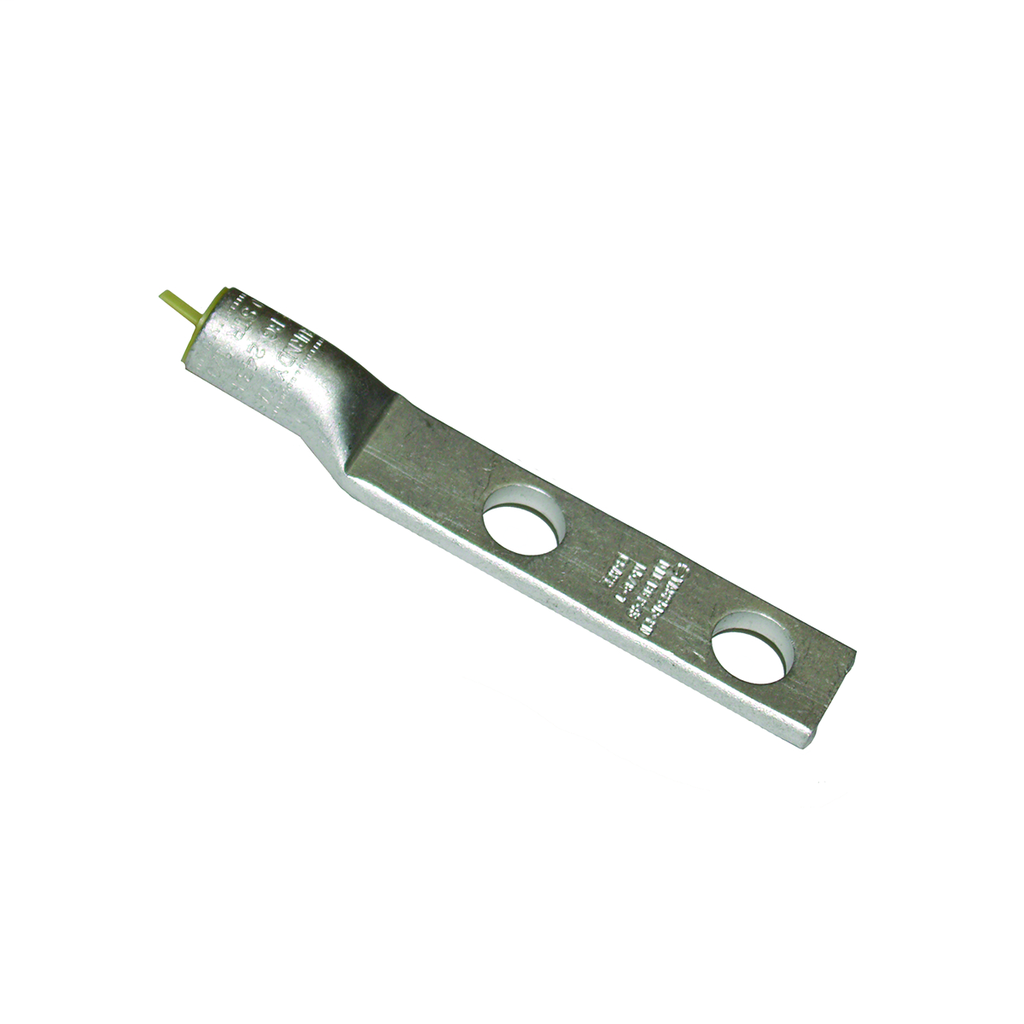

Burndy YAS33R2N 400 MCM Aluminum Straight Stacking 2-Hole Compression Terminal Lug
Product image thumbnail 0
Product image thumbnail 1
$42.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAS33R2N
North Coast Part # 161214

Specifications

General

  • Color Code: Green
  • Connector Type: Terminal
  • Die Index: 317;705
  • Material: Aluminum
  • Physical Attribute - Number of Crimps Required: 1
  • Physical Attribute - Number of Holes: 2
  • Plated: N
  • Plating Type: Unplated
  • Trade Name: HYLUG™
  • UPC: 781810051795
  • UPC 12 Digit: 7818100517955

Dimensions

  • Dimension - B Length inch: 2.3 in
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - L Length Overall mm: 182 mm
  • Dimension - Length Overall inch: 7.18 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 1.24 in
  • Dimension - Pad Width inch: 1.68 in
  • Dimension - Strip Length inch: 2 in
  • Dimension - Z inch: 1.82 in
  • Physical Attribute - Tongue Angle: Straight

Conductor Related

  • Conductor - ACSR Str Size: 397.5 (18/1) Chickadee kcmil
  • Conductor - ACSR Str Size Range: 397.5 (18/1) Chickadee kcmil
  • Conductor - AL Str Size: 400 kcmil
  • Conductor - AL Str Size Range: 400 kcmil
  • Conductor - Copper Str Size: 400 kcmil
  • Conductor - Copper Str Size Range: 400 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Overview

UPC 78181005179
GTiN 00781810051795
Family Brand Name Hubbell
Length 7.18 in
Material Aluminum
Conductor Size 400 MCM
Connection Type Terminal
Plating Type Unplated
Plated? No
CSA No
Color Coding Green
