BUR YAV102TC14E1 HYLUG-OPEN-14/10ST
Product image thumbnail 0
Product image thumbnail 1
$9.42/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV102TC14E1
North Coast Part # 551738

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Solid Size: 12 AWG;11 AWG;10 AWG
  • Conductor - Copper Solid Size Range: 12 -10 SOL
  • Conductor - Copper Str Navy Size: 3 (7) Navy;4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy
  • Conductor - Copper Str Navy Size Range: 3 (7) Navy-9 (37) Navy
  • Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG
  • Conductor - Copper Str Size Range: 14 AWG - 10 AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 3/8 in
  • Dimension - B Length inch: 0.38 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - D inch: 1.64 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 56 mm
  • Dimension - Length Overall inch: 2.22 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.21 in
  • Dimension - Pad Width inch: 0.41 in
  • Dimension - Strip Length inch: 7/16
  • Dimension - Stud Size inch: 1/4
  • Dimension - Z inch: 0.33 in
  • Each - Height: 0.21 in
  • Each - Length: 2.22 in
  • Each - Width: 0.41 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Code Conductor
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Standard Barrel, Tin Plated
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YAV102TC14E1_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YAV102TC14E1_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YAV102TC14E1_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181002213

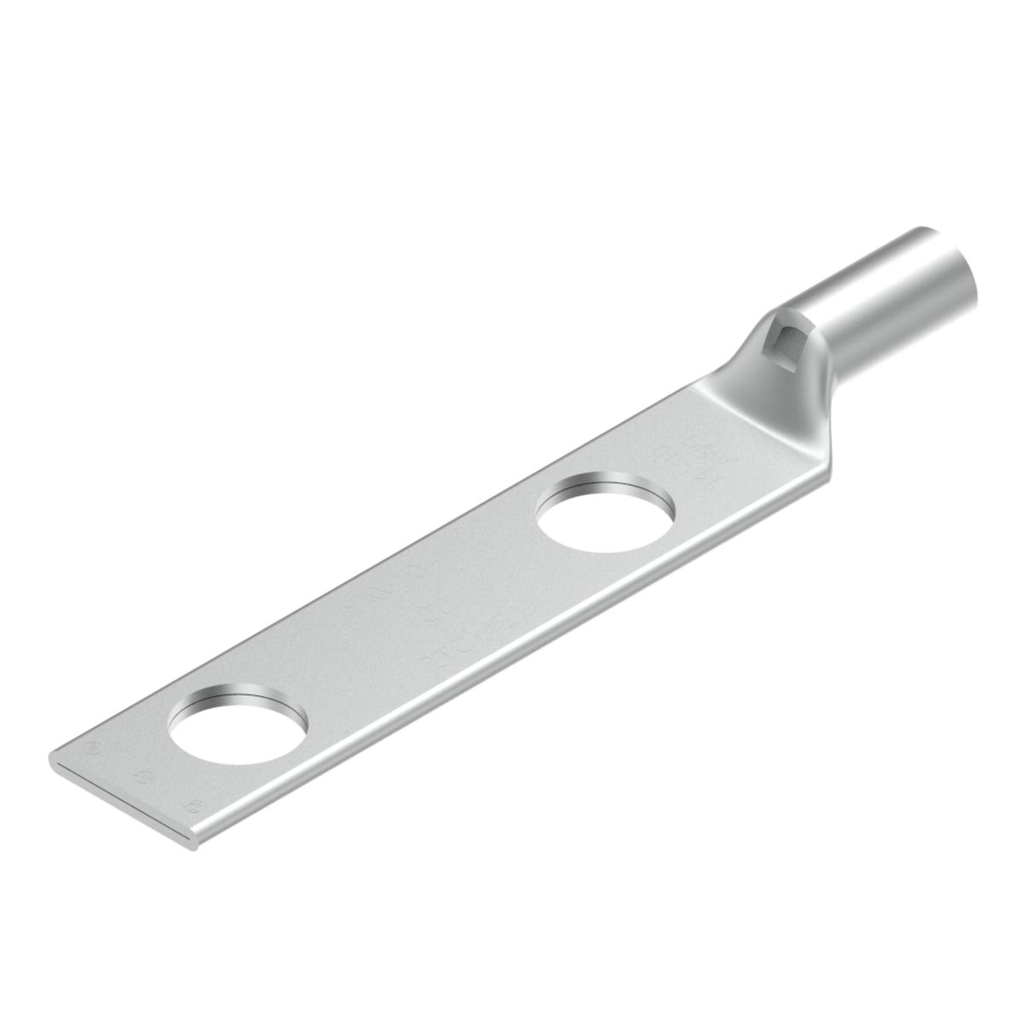

Item Long Description Cu terminal, 2 Holes W/inspection window, #14-#10 STR, #12-#10 SOL, Tin - Electro Plated.
GTiN 00781810022139
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size 14 - 10 AWG Stranded, 12 - 10 AWG Solid, 6 SQ-MM For Class 2 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 2.22 in
Hole Size 7 mm
Conductor Size 10 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
