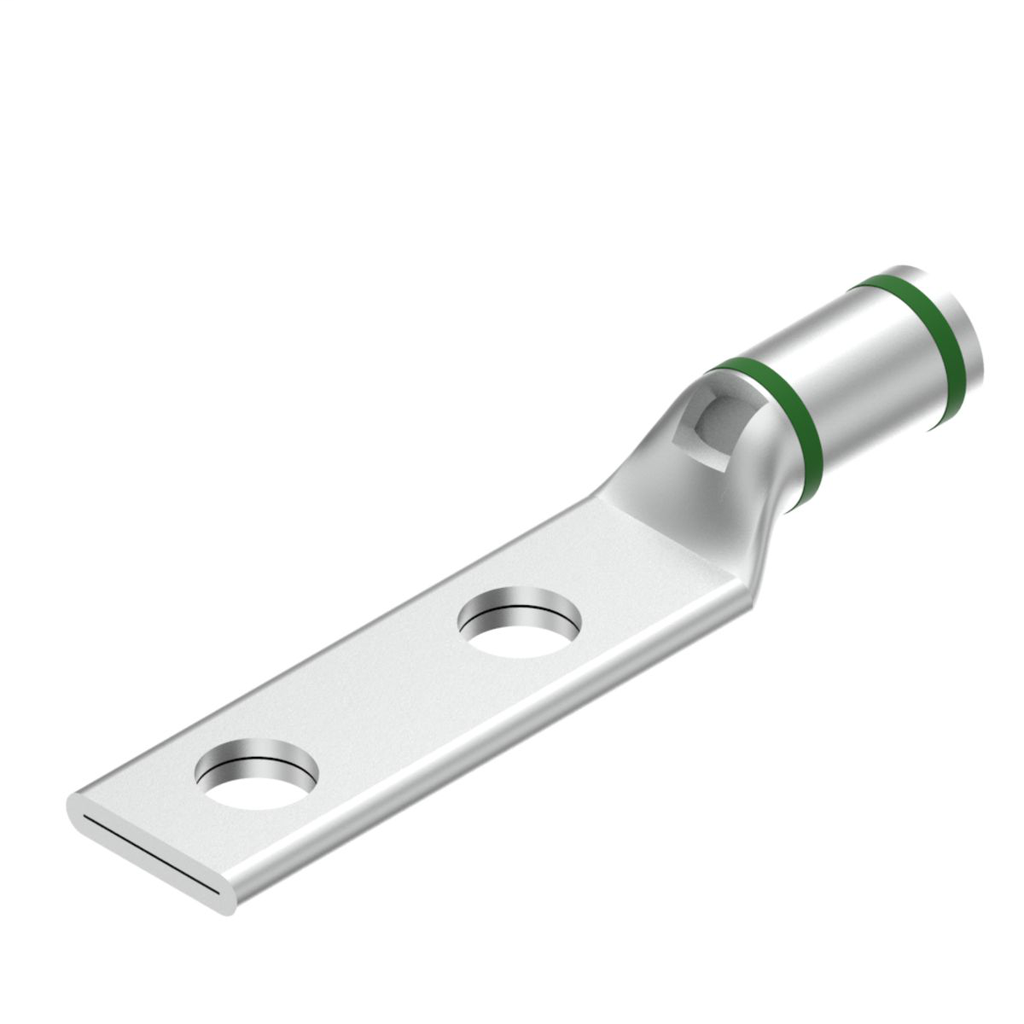

Burndy YAV1CL2TC38FX 1 AWG 3/8 Inch Electrotinned Copper Short Barrel 2-Hole Compression Terminal Lug

Specifications

General

• Color Code: Green
• Connector Type: Terminal
• Die Index: 11
• Feature - Barrel Type: Standard
• Material: Copper
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin
• Temperature Rating: 194
• Trade Name: HYLUG™
• Type: Standard Barrel, Tin Plated
• UPC: 781810022290
• UPC 12 Digit: 7818100222900

Dimensions

• Dimension - B Length fraction: 5/8 in
• Dimension - B Length inch: 0.62 in
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - D inch: 1.84 in
• Dimension - Hole Size inch: 0.41 in
• Dimension - Hole Size mm: 10 mm
• Dimension - L Length Overall mm: 72 mm
• Dimension - Length Overall inch: 2.85 in
• Dimension - N inch: 0.41 in
• Dimension - Outside Diameter inch: 0.51 in
• Dimension - Pad Width inch: 0.75 in
• Dimension - Strip Length inch: 11/16
• Dimension - Z inch: 0.43 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper DLO Size: 1 (225/#24) DLO
• Conductor - Copper DLO Size Range: 1 (225/#24) DLO
• Conductor - Copper Flex G Size: 1 AWG
• Conductor - Copper Flex G Size Range: 1 AWG
• Conductor - Copper Flex H Size: 1 AWG
• Conductor - Copper Flex H Size Range: 1 AWG
• Conductor - Copper Flex I Size: 1 AWG
• Conductor - Copper Flex I Size Range: 1 AWG
• Conductor - Copper Flex K Size: 1 AWG
• Conductor - Copper Flex K Size Range: 1 AWG
• Conductor - Copper Flex M Size: 1 AWG
• Conductor - Copper Flex M Size Range: 1 AWG
• Conductor - Copper Str Navy Size: 75 (37) Navy
• Conductor - Copper Str Navy Size Range: 75 (37) Navy
• Conductor - Copper Str Size: 1 AWG
• Conductor - Copper Str Size Range: 1 AWG
• Conductor - CopperWeld Str Size: 1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG
• Conductor - CopperWeld Str Size Range: 1 F AWG-1 N AWG
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Feature - Barrel Style

• Chamfered
• Skived
