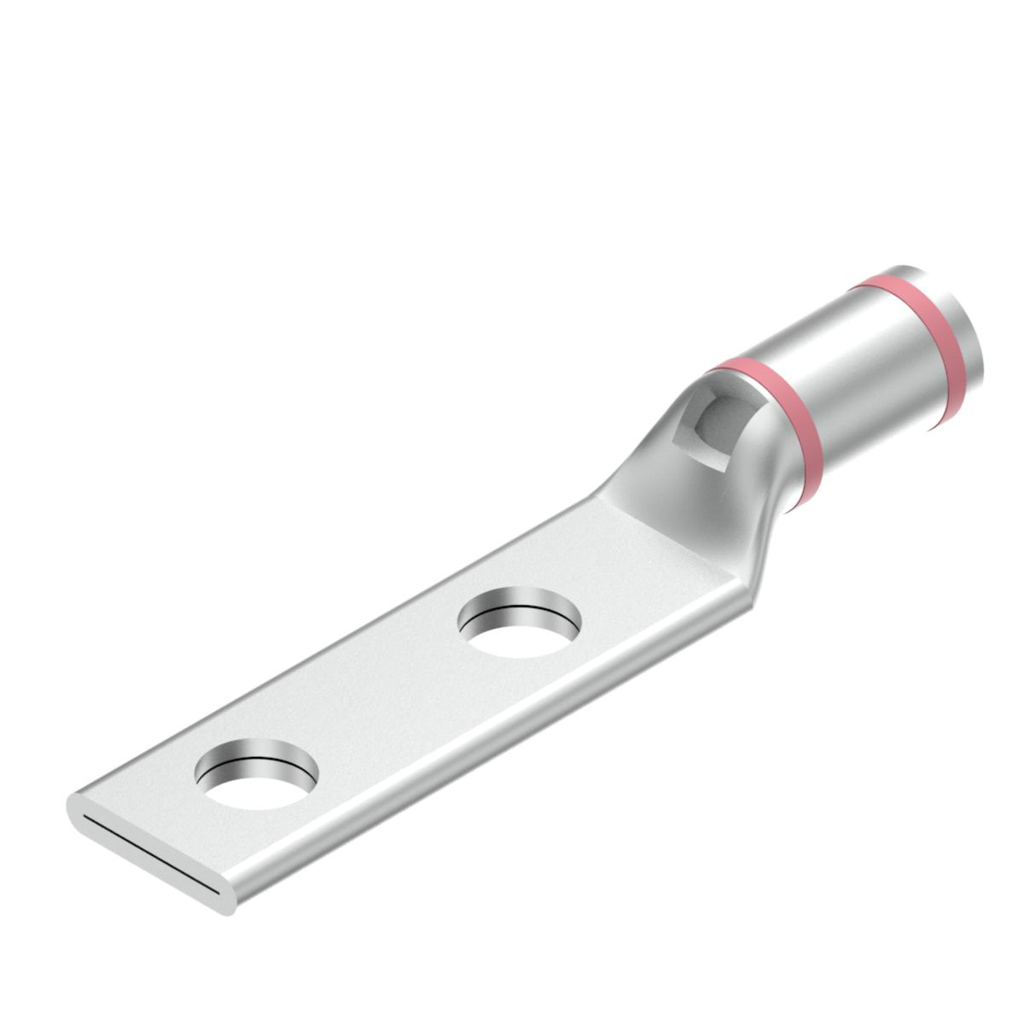

Burndy YAV25L2TC516FX 1/0 AWG Electrotinned Short Barrel 2-Hole Compression Terminal Lug
$17.67/ea
Usually ships within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV25L2TC516FX
North Coast Part # 673203

Specifications

General

  • Color Code: Pink
  • Connector Type: Terminal
  • Die Index: 12
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 2
  • Plated: Y
  • Plating Type: Tin
  • Temperature Rating: 194
  • Trade Name: HYLUG™
  • Type: Standard Barrel, Tin Plated
  • UPC: 781810021903
  • UPC 12 Digit: 7818100219033

Dimensions

  • Dimension - B Length fraction: 11/16 in
  • Dimension - B Length inch: 0.69 in
  • Dimension - Bolt Hole Size inch: 0.33 in
  • Dimension - Hole Size inch: 0.33 in
  • Dimension - Hole Size mm: 8 mm
  • Dimension - L Length Overall mm: 72 mm
  • Dimension - Length Overall inch: 2.82 in
  • Dimension - N inch: 0.34 in
  • Dimension - Outside Diameter inch: 0.56 in
  • Dimension - Pad Width inch: 0.83 in
  • Dimension - Strip Length inch: 11/16 in
  • Dimension - Z inch: 0.36 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 1/0 (275/#24) DLO
  • Conductor - Copper DLO Size Range: 1/0 (275/#24) DLO
  • Conductor - Copper Flex G Size: 1/0 AWG
  • Conductor - Copper Flex G Size Range: 1/0 AWG
  • Conductor - Copper Flex H Size: 1/0 AWG
  • Conductor - Copper Flex H Size Range: 1/0 AWG
  • Conductor - Copper Flex I Size: 1/0 AWG
  • Conductor - Copper Flex I Size Range: 1/0 AWG
  • Conductor - Copper Flex K Size: 1/0 AWG
  • Conductor - Copper Flex K Size Range: 1/0 AWG
  • Conductor - Copper Flex M Size: 1/0 AWG
  • Conductor - Copper Flex M Size Range: 1/0 AWG
  • Conductor - Copper Solid Size: 1/0 AWG
  • Conductor - Copper Solid Size Range: 1/0 AWG
  • Conductor - Copper Str Navy Size: 100 Navy
  • Conductor - Copper Str Navy Size Range: 100 Navy
  • Conductor - Copper Str Size: 1/0 AWG
  • Conductor - Copper Str Size Range: 1/0 AWG
  • Conductor - CopperWeld Str Size: 1/0 WELD
  • Conductor - CopperWeld Str Size Range: 1/0 WELD
  • Conductor - Material: Copper

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 100

Feature - Barrel Style

  • Chamfered
  • Skived

Overview

UPC 78181002190
GTiN 00781810021903
Family Brand Name Hubbell
Length 2.82 in
Hole Size 8 mm
Material Copper
Conductor Size 1/0 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Pink
