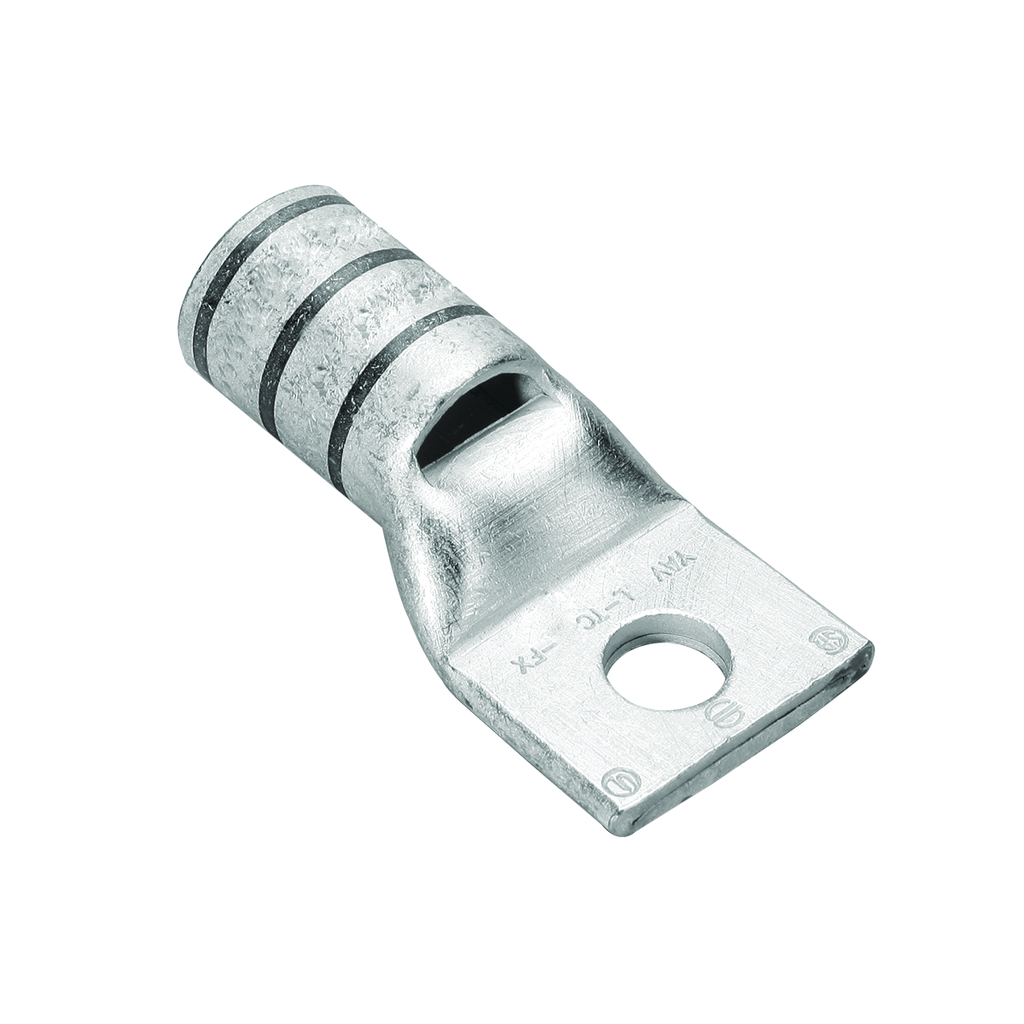

BUR YAV25L4 1/0 HVYDTY RING 5/8 STU

Features

Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Wire Shroud: No, Package: Bulk, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Finish: Electro-Tin Plated, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV25L Die Nest, Y29PR Die Indentor, (1) Crimp, Y35, Y39 Tool, UV25L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV25L Die Nest, Y34PA Die Indentor, (1) Crimp, Conductor Type: Commercial/Military Stranded Copper, Die Index: 43, Wire Strip Length: 11/16 IN, Tongue Angle: Straight

Specifications

• Application: For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
• Connector Type: Terminal
• Die Index: 43

Feature - Barrel Style

• Chamfered
• Skived

• Feature - Barrel Type: Standard
• Material: Copper

Material Composition

• DLP Copper
• Tin Plating

• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Ring Tongue
• UPC: 781810025680
• Dimension - B Length fraction: 11/16 in
• Dimension - B Length inch: 0.66 in
• Dimension - Bolt Hole Size inch: 0.66 in
• Dimension - D inch: 1.12 in
• Dimension - Hole Size mm: 17 mm
• Dimension - Length Overall inch: 2.31 in
• Dimension - N inch: 0.5 in
• Dimension - Outside Diameter inch: 0.56 in
• Dimension - Pad Width inch: 0.88 in
• Dimension - Strip Length inch: 11/16
• Dimension - Stud Size inch: 5/8 in
• Dimension - Z inch: 0.62 in
• Physical Attribute - Tongue Angle: Straight
• Conductor - Copper Str Aircraft Size: AN 0
• Conductor - Copper Str Aircraft Size Range: AN 0
• Conductor - Copper Str Size: 1/0 AWG
• Conductor - Copper Str Size Range: 1/0 AWG

Conductor Type

• CU C Solid-Size
• CU C Str-Size

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL467
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
