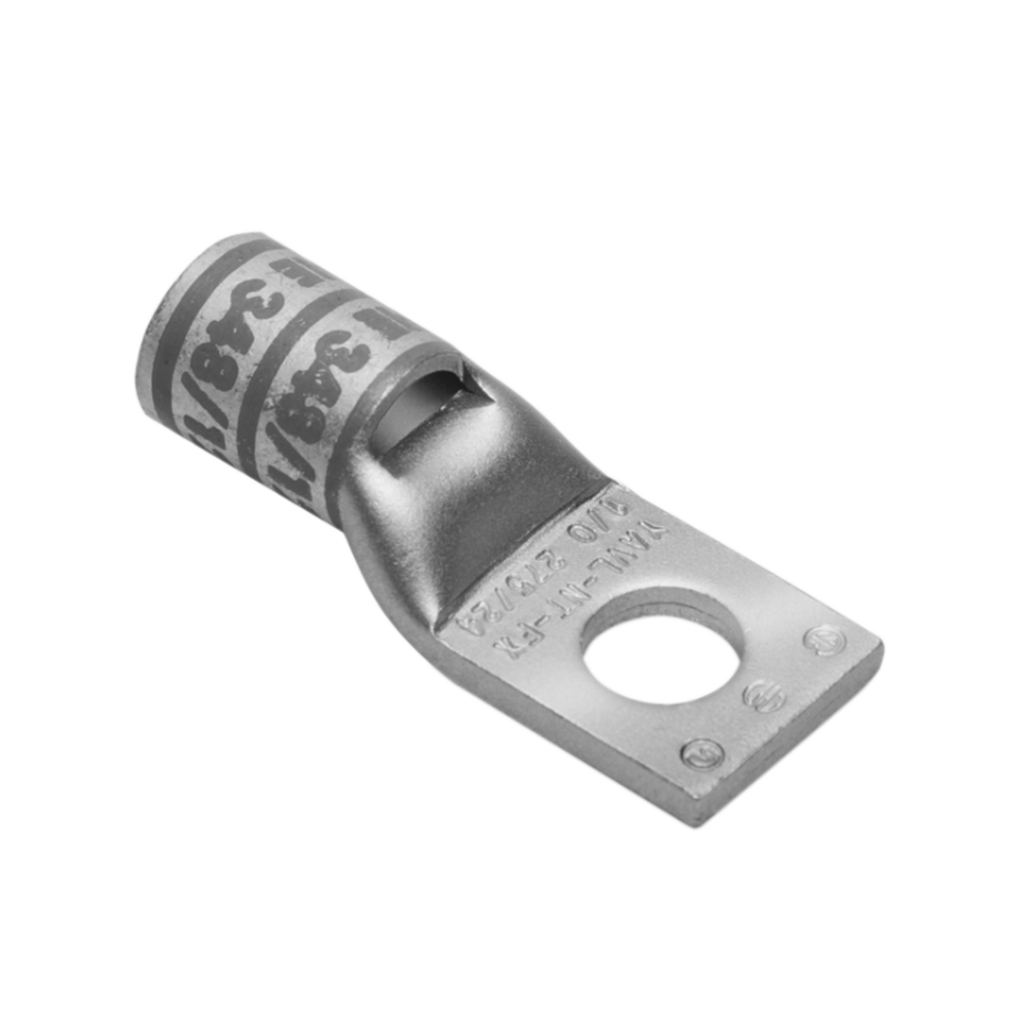

BUR YAV25LNT38FX CULUG-1/0FLEX-3/8-
Product image thumbnail 0
Product image thumbnail 1
$29.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV25LNT38FX
North Coast Part # 826633

Specifications

General

  • Application: For Flex Conductors
  • Color Code: Pink
  • Connector Type: Terminal
  • Die Index: 12
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: TERMINALS, HYLUG
  • Trade Name: HYLUG™
  • Type: YAV-L-NTFX
  • UPC: 781810413043

Dimensions

  • Dimension - B Length fraction: 11/16 in
  • Dimension - B Length inch: 0.69 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - D inch: 0.83 in
  • Dimension - L Length Overall mm: 49 mm
  • Dimension - Length Overall inch: 1.94 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.56 in
  • Dimension - Pad Width inch: 0.76 in
  • Dimension - Strip Length inch: 11/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.42 in
  • Physical Attribute - Tongue Angle: Straight

Electrical Ratings

  • Rating - KVA: 35 kV
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 35000

Conductor Related

  • Conductor - Copper DLO Size: 1/0 (275/#24) DLO
  • Conductor - Copper DLO Size Range: 1/0 (275/#24) DLO
  • Conductor - Copper Flex G Size: 1/0 AWG
  • Conductor - Copper Flex G Size Range: 1/0 AWG
  • Conductor - Copper Flex H Size: 1/0 AWG
  • Conductor - Copper Flex H Size Range: 1/0 AWG
  • Conductor - Copper Flex I Size: 1/0 AWG
  • Conductor - Copper Flex I Size Range: 1/0 AWG
  • Conductor - Copper Flex K Size: 1/0 AWG
  • Conductor - Copper Flex K Size Range: 1/0 AWG
  • Conductor - Copper Flex M Size: 1/0 AWG
  • Conductor - Copper Flex M Size Range: 1/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Overview

UPC 78181041304
GTiN 00781810413043
Type YAV-L-NTFX
Material Copper
Stud Size 0.3125 in
Applications For Flex Conductors
Cable Size 1/0 AWG
Family Brand Name Burndy
Sub Brand Terminals, HYLUG
Length 1.94 in
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Pink
