BUR YAV28L2NT38FX HYLUG-4/0FLEX-NAR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV28L2NT38FX
North Coast Part # 334460

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 15, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Tongue Angle: Straight, Color Code: Purple, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Conductor Type: Flexible Copper

Specifications

  • Conductor - Copper DLO Size: 4/0 (550/#24)
  • Conductor - Copper DLO Size Range: 4/0 AWG
  • Conductor - Copper Flex G Size: 4/0
  • Conductor - Copper Flex G Size Range: 4/0 AWG
  • Conductor - Copper Flex H Size: 4/0
  • Conductor - Copper Flex H Size Range: 4/0 AWG
  • Conductor - Copper Flex I Size: 4/0
  • Conductor - Copper Flex I Size Range: 4/0 AWG
  • Conductor - Copper Flex K Size: 4/0
  • Conductor - Copper Flex K Size Range: 4/0 AWG
  • Conductor - Copper Flex M Size: 4/0
  • Conductor - Copper Str Navy Size: 200 (61)
  • Conductor - Copper Str Size: 4/0 AWG
  • Conductor - Copper Str Size Range: 4/0 AWG
  • Conductor - CopperWeld Str Size: 4/0 E;4/0 EK;4/0 F;4/0 G;4/0 V
  • Country of Origin: US
  • Dimension - B Length fraction: 1 in
  • Dimension - B Length inch: 1.03 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - Bolt Size fraction: 3/8
  • Dimension - Diameter Min Size inch: 1.84 in
  • Dimension - L Length Overall mm: 87 mm
  • Dimension - Length Overall inch: 3.43 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.77 in
  • Dimension - Pad Width inch: 0.94 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.43 in
  • Each - Height: 0.77 in
  • Each - Length: 3.43 in
  • Each - Width: 0.94 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Standard
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/YAV28L2NT38FX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/YAV28L2NT38FX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YAV28L2NT38FX_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181003576

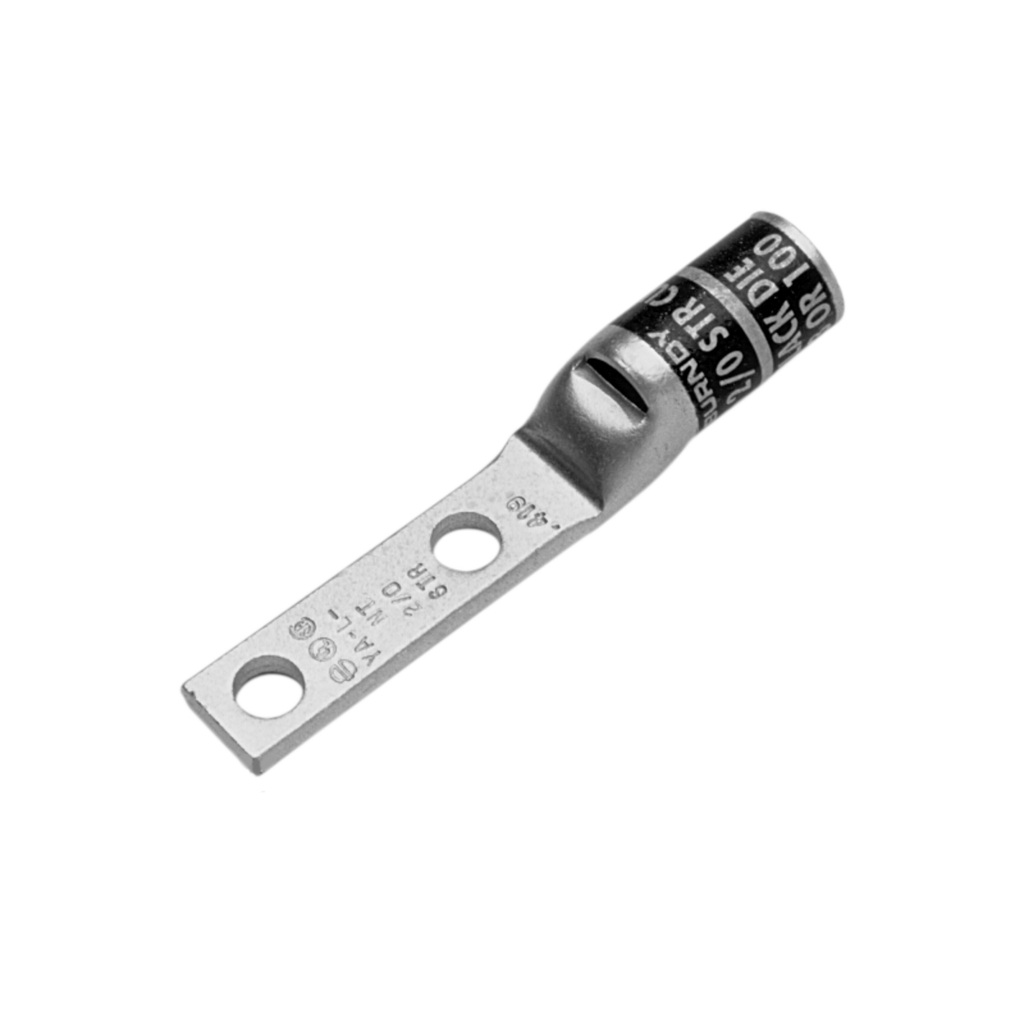

Item Long Description Copper Compression Lug, Narrow Tongue, 2 Hole, 4/0 AWG, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin - Electro Plated.
GTiN 00781810035764
Type YAV-L-2TC-FX, Standard Barrel
Material Copper
Stud Size 0.375 in
Number of Holes 2 Hole
Applications For Flex Conductors
Cable Size 4/0 AWG, 4/0 AWG Weld, 550/24, 120 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 3.43 in
Conductor Size 4/0 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Purple
