BUR YAV28L2TC14FX CU HYLUG-4/0FLEX-
Product image thumbnail 0
Product image thumbnail 1
$24.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV28L2TC14FX
North Coast Part # 486294

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1-1/16 IN, Tongue Angle: Straight, Die Index: 15, Temperature Rating: 90 DEG C, Color Code: Purple, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Conductor Type: Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1)

Specifications

  • Conductor - Copper DLO Size: 4/0 (550/#24) DLO
  • Conductor - Copper DLO Size Range: 4/0 AWG
  • Conductor - Copper Flex G Size: 4/0 AWG
  • Conductor - Copper Flex G Size Range: 4/0 AWG
  • Conductor - Copper Flex H Size: 4/0 AWG
  • Conductor - Copper Flex H Size Range: 4/0 AWG
  • Conductor - Copper Flex I Size: 4/0 AWG
  • Conductor - Copper Flex I Size Range: 4/0 AWG
  • Conductor - Copper Flex K Size: 4/0 AWG
  • Conductor - Copper Flex K Size Range: 4/0 AWG
  • Conductor - Copper Flex M Size: 4/0 AWG
  • Conductor - Copper Flex M Size Range: 4/0 AWG
  • Conductor - Copper Str Navy Size: 200 (61) Navy
  • Conductor - Copper Str Navy Size Range: 200 (61) Navy
  • Conductor - Copper Str Size: 4/0 AWG
  • Conductor - Copper Str Size Range: 4/0 AWG
  • Conductor - CopperWeld Str Size: 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
  • Conductor - CopperWeld Str Size Range: 4/0 E AWG-4/0 V AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 1 in
  • Dimension - B Length inch: 1.03 in
  • Dimension - Bolt Hole Size inch: 0.27 in
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - D inch: 1.28 in
  • Dimension - Hole Size inch: 0.27 in
  • Dimension - Hole Size mm: 7 mm
  • Dimension - L Length Overall mm: 73 mm
  • Dimension - Length Overall inch: 2.86 in
  • Dimension - N inch: 0.31 in
  • Dimension - Outside Diameter inch: 0.77 in
  • Dimension - Pad Width inch: 1.14 in
  • Dimension - Strip Length inch: 1-1/16
  • Dimension - Thread Size: 1/4 in
  • Dimension - Z inch: 0.34 in
  • Each - Height: 0.77 in
  • Each - Length: 2.86 in
  • Each - Width: 1.14 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Standard
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181010309

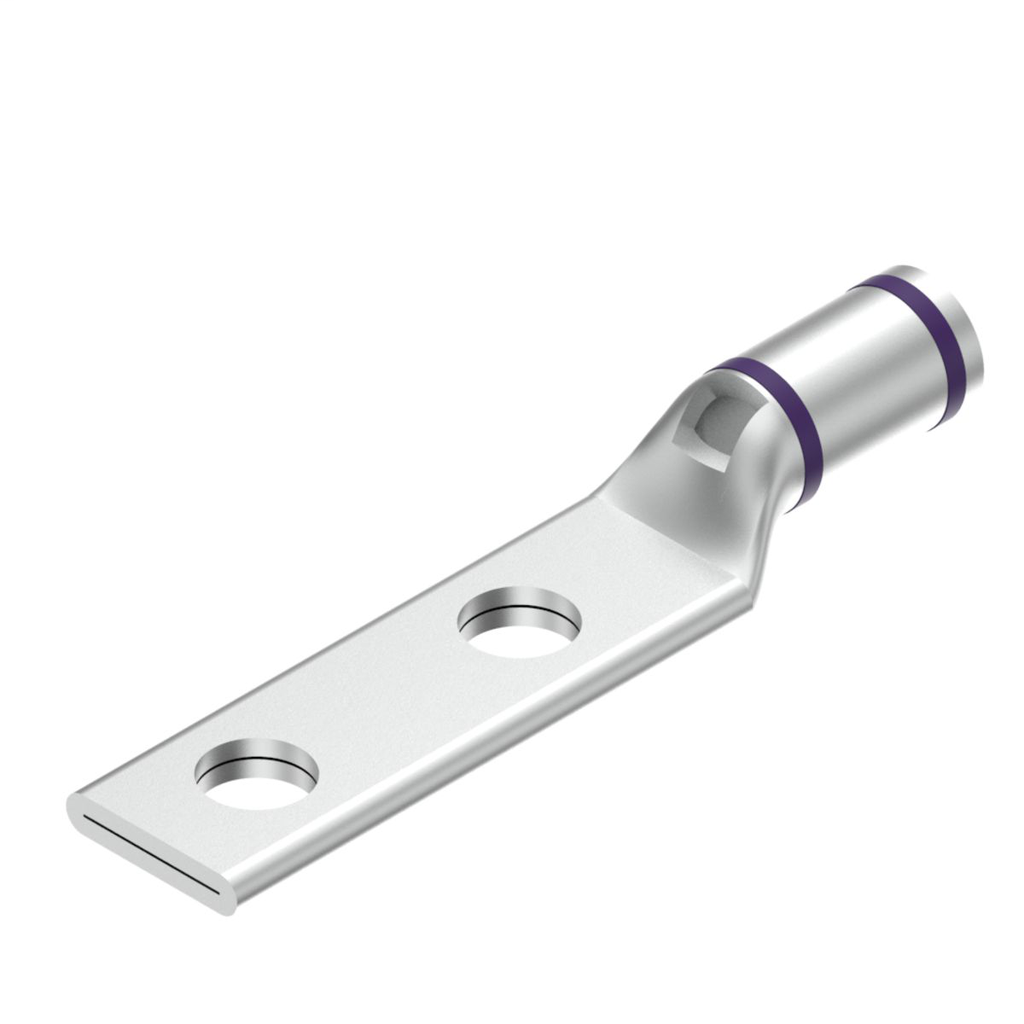

Item Long Description Copper Compression Lug, 2 Hole w/ Inspection Window, 4/0 Flex, 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin Plated.
GTiN 00781810103098
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.25 in
Number of Holes 2 Hole
Applications For Flex Conductors
Cable Size 4/0 AWG, 4/0 AWG Weld, 550/24, 120 SQ-MM For Class 5 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 2.86 in
Hole Size 7 mm
Conductor Size 4/0 AWG
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Purple
