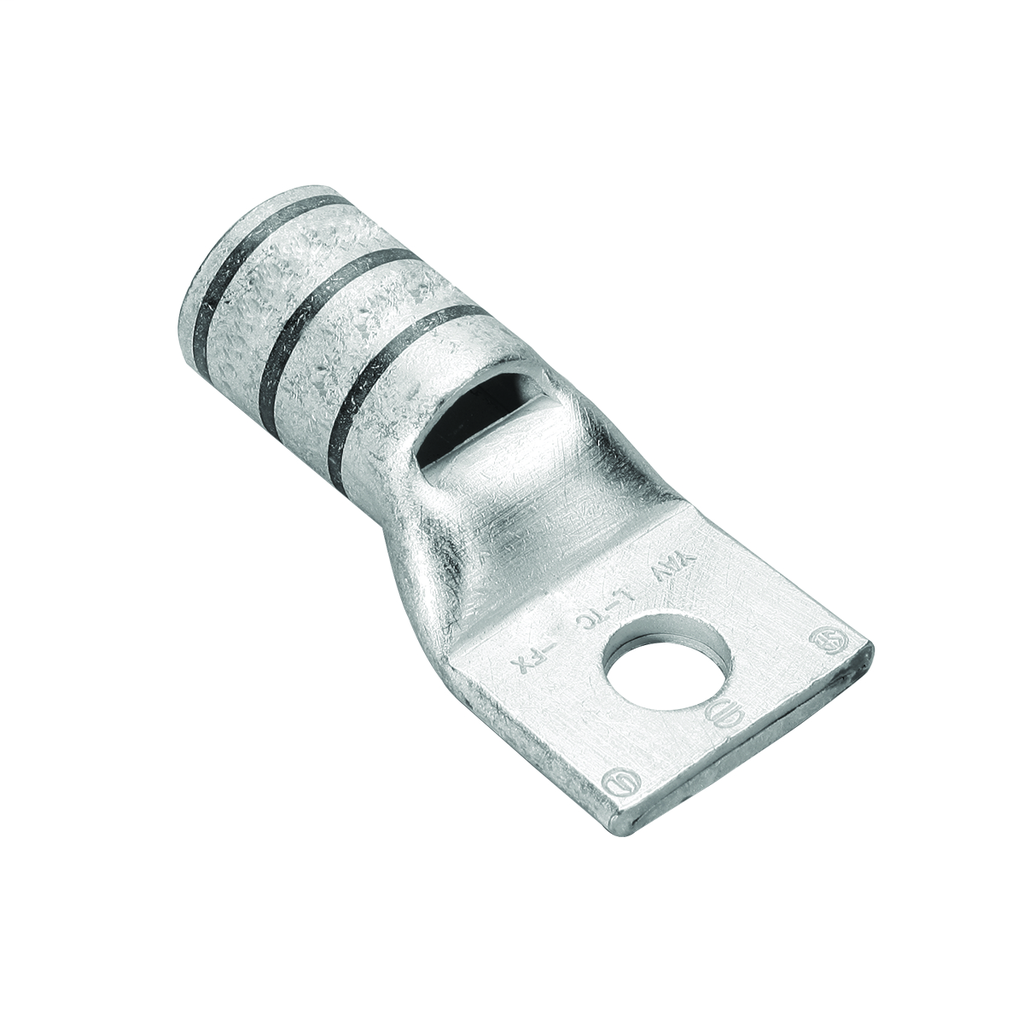

BUR YAV2CL3 2AWG HVYDTY RING 8-10 S
Product image thumbnail 0
Product image thumbnail 1
$3.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV2CL3
North Coast Part # 934282

Features

  • HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Ms20659 Dash Number: -146, Finish: Electro-Tin Plated, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV2L Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39 Tool, UV2L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV2L Die Nest, Y34PLA Die Indentor, (1) Crimp, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Package: Bulk, Wire Shroud: No, Die Index: 41, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 5/8 IN, Tongue Angle: Straight

Specifications

  • Conductor - Copper Str Aircraft Size: AN 2
  • Conductor - Copper Str Size: 2 AWG
  • Conductor - Copper Str Size Range: 2 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 5/8 in
  • Dimension - B Length inch: 0.53 in
  • Dimension - Bolt Hole Size inch: 0.2 in
  • Dimension - Hole Size mm: 5 mm
  • Dimension - Length Overall inch: 1.72 in
  • Dimension - N inch: 0.34 in
  • Dimension - Outside Diameter inch: 0.46 in
  • Dimension - Pad Width inch: 0.69 in
  • Dimension - Strip Length inch: 5/8
  • Dimension - Stud Size inch: #10
  • Dimension - Z inch: 0.35 in
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Industry Standard(s): UL467;Military Specified (Mil-Spec)
  • Material Composition: DLP Copper;Tin Plating
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Standards - Industry Standards Met: UL467; Military Specified (Mil-Spec)
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YAV2CL3_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YAV2CL3_MODEL-PDF.pdf

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810025536
Type Ring Tongue
Material Copper
Stud Size 0.164-0.19 in
Applications For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Cable Size 2 AWG Flex
Family Brand Name Burndy
Sub Brand HYLUG
Product UPC 78181002553
Length 1.72 Inch
Connection Type Terminal
Hole Size 5 mm
Country of Origin USA
Overall Length 1.72 in
