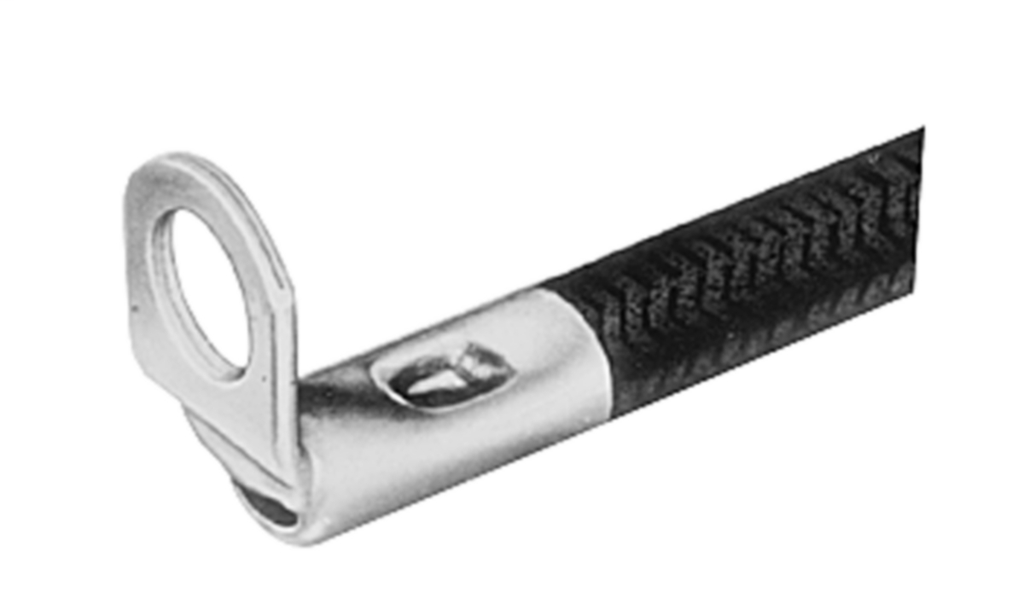

BUR YAV6CRS1 6AWG HVYDTY RING 10 ST
Product image thumbnail 0
Product image thumbnail 1
$4.23/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YAV6CRS1
North Coast Part # 544721

Features

WIRE: 6 IN AWG CU STUD: 5/16 IN STRIP LG: 1/2 IN 600V/105 DEG C MAX

Specifications

  • Application: For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
  • Connector Type: Terminal
  • Die Index: 39
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Standard
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Ring
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Sub Brand: TERMINALS, HYLUG
  • Trade Name: HYLUG™
  • Type: Ring Tongue
  • UPC: 781810035863
  • Dimension - B Length fraction: 1/2 in
  • Dimension - B Length inch: 0.50 in
  • Dimension - Bolt Hole Size inch: 0.2 in
  • Dimension - G inch: 0.82 in
  • Dimension - Hole Size mm: 5 mm
  • Dimension - L Length Overall mm: 25 mm
  • Dimension - Length Overall inch: 0.98 in
  • Dimension - N inch: 0.25 in
  • Dimension - Outside Diameter inch: 0.32 in
  • Dimension - Pad Width inch: 0.50 in
  • Dimension - Strip Length inch: 1/2
  • Dimension - Stud Size inch: #8;#10
  • Dimension - Z inch: 0.28 in
  • Physical Attribute - Tongue Angle: 90 Degree
  • Conductor - Copper Str Aircraft Size: AN 6
  • Conductor - Copper Str Size: 6
  • Conductor - Copper Str Size Range: 6

Conductor Type

  • CU C Solid-Size
  • CU C Str-Size
  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181003586
GTiN 00781810035863
Type Ring Tongue
Material Copper
Stud Size 0.3125 in
Applications For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors
Family Brand Name ZZ- Obsolete - Burndy / FCI
Sub Brand TERMINALS, HYLUG
Length 0.98 in
Hole Size 5 mm
Connection Type Terminal
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
